EXHAUST VALVE (MODEL V)
RM250 1996 (T) (E02 E04 E24)

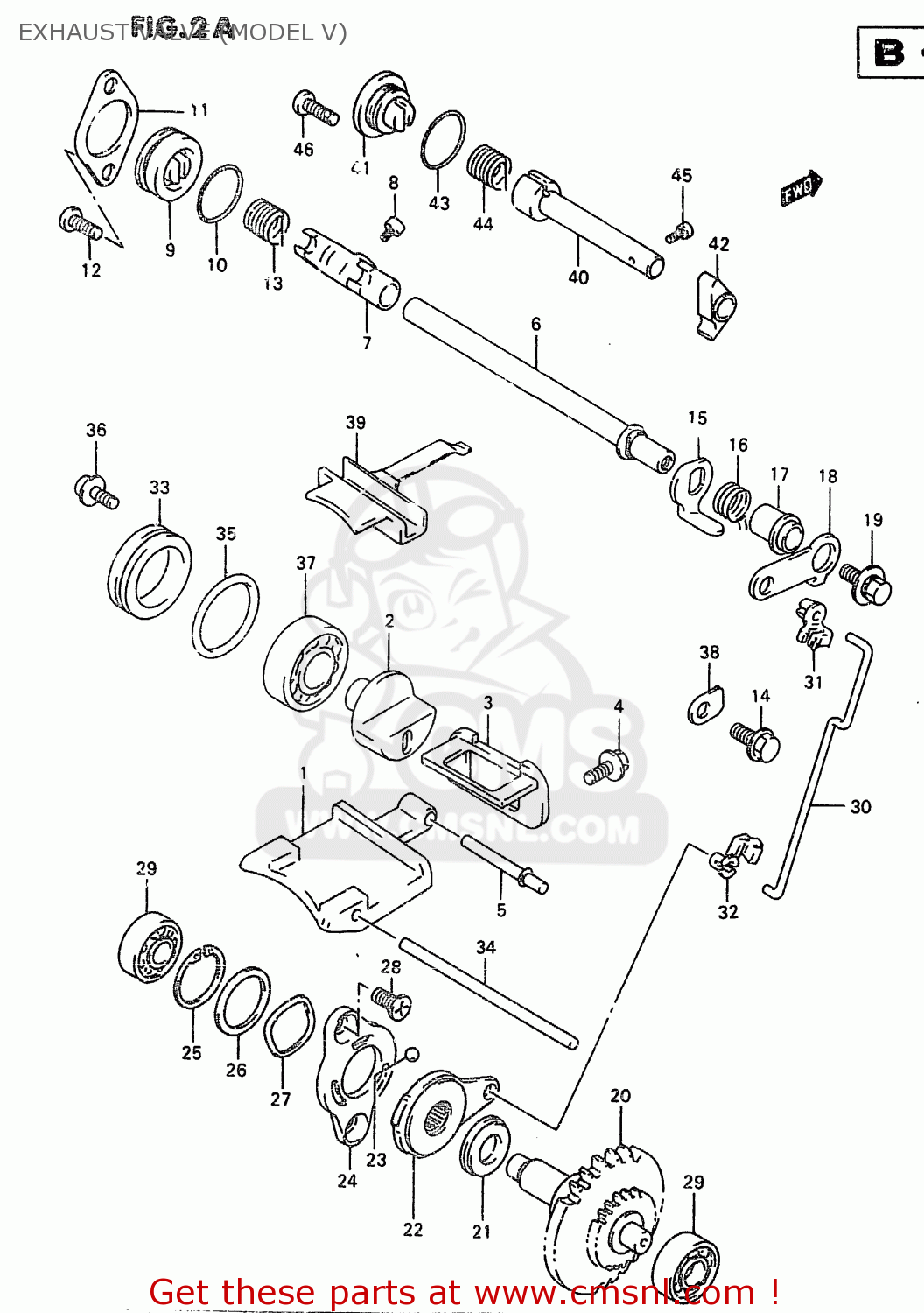

Exhaust valve (model v) diagram RM250 1996 (T) (E02 E04 E24)
EXHAUST VALVE (MODEL V) RM250 1996 (T) (E02 E04 E24)
×
prices are in EUR
ref
part #
description
quantity
1
1125437E10
ref: 1
VALVE,EXHAUST MAIN LOW
€ 114.00
2
1125537E10
ref: 2
VALVE,EXHAUST SIDE
€ 71.00
3
1126137E10
ref: 3
GUIDE,EXHAUST MAIN VALVE
€ 70.50
4
0211215123
ref: 4
SCREW 5X12
€ 1.50
5
1125337E00
ref: 5
PIN,EXH MAIN VALVE & SPACER
€ 9.50
6
1125937E00
ref: 6
SHAFT,EXHAUST VALVE
€ 50.50
7
1126437E00
ref: 7
ARM,EXHAUST VALVE SHAFT
€ 35.00
8
0910604003
ref: 8
BOLT(4X8)
€ 2.00
9
1125827C01
ref: 9
CAP,EXHAUST VALVE
€ 52.00
10
0928023002
ref: 10
O RING(D:1.9,ID:22.6)
€ 2.50
11
1126500B21
ref: 11
RETAINER,EXHAUST VALVE
€ 2.50
12
0216205123
ref: 12
BOLT
€ 2.00
13
0944817030
ref: 13
SPRING
€ 6.00
14
0154706103
ref: 14
BOLT
€ 3.00
15
1126700B21
ref: 15
LEVER,EXHAUST VALVE NO.2
€ 5.50
16
0944416010
ref: 16
SPRING
€ 9.00
17
1126801B00
ref: 17
SPACER,EXHAUST VALVE
€ 8.50
18
1126628C10
ref: 18
LEVER,EXHAUST VALVE NO.1
€ 22.50
19
0911805005
ref: 19
BOLT(5X12)
€ 4.00
20
1267037E10
ref: 20
GOVERNOR ASSEMBLY,EXHAUST VALVE
€ 123.50
21
0926310002
ref: 21
BEARING(10X22X2.8)
€ 8.50
22
1268001820
ref: 22
ACTUATOR,EXHAUST VALVE
€ 47.50
23
0611106003
ref: 23
BALL
€ 1.50
24
1268201B02
ref: 24
STARTER,EXHAUST VALVE ACTUATOR
€ 26.50
25
0938019003
ref: 25
CIRCLIP
€ 2.50
26
0918119004
ref: 26
SHIM(19.1X25X0.3)
€ 4.00
27
0916419001
ref: 27
WASHER
€ 7.00
28
0912005003
ref: 28
SCREW(5X10)
€ 2.00
29
0926208005
ref: 29
BEARING(8X22X7)
€ 12.50
30
1268537E01
ref: 30
ROD,EXHAUST VALVE
€ 6.50
31
1268601B00
ref: 31
BUSH,EXHAUST VALVE ROD NO.1
€ 2.00
32
1268701B00
ref: 32
BUSH,EXHAUST VALVE ROD NO.2
€ 2.00
33
1126237E00
ref: 33
CAP,EXHAUST SIDE VALVE
€ 16.50
34
0920204020
ref: 34
PIN
€ 10.00
35
0928026006
ref: 35
O RING(D:3.1,ID:26.4)
€ 3.00
36
0211215123
ref: 36
SCREW 5X12
€ 1.50
37
0811262017
ref: 37
BEARING
€ 8.50
38
2474121A00
ref: 38
RETAINER
€ 2.00
39
1127237E10
ref: 39
VALVE,EXHAUST MAIN,MIDDLE
€ 101.50
40
1127337E10
ref: 40
SHAFT,CYLINDER COVER,N
€ 16.00
41
1127437E10
ref: 41
CAP,CYLINDER COVER NO
€ 9.50
42
1127537E10
ref: 42
ARM,CYLINDER COVER NO
€ 27.00
43
0928015006
ref: 43
O RING(D:1.9,ID:14.5)
€ 3.00
44
1125737E10
ref: 44
SPRING,CYL COVER NO.2 SHAFT
€ 4.50
45
0910604003
ref: 45
BOLT(4X8)
€ 2.00
46
0211215123
ref: 46
SCREW 5X12
€ 1.50
