CRANKCASE
RM250 1996 (T) (E02 E04 E24)

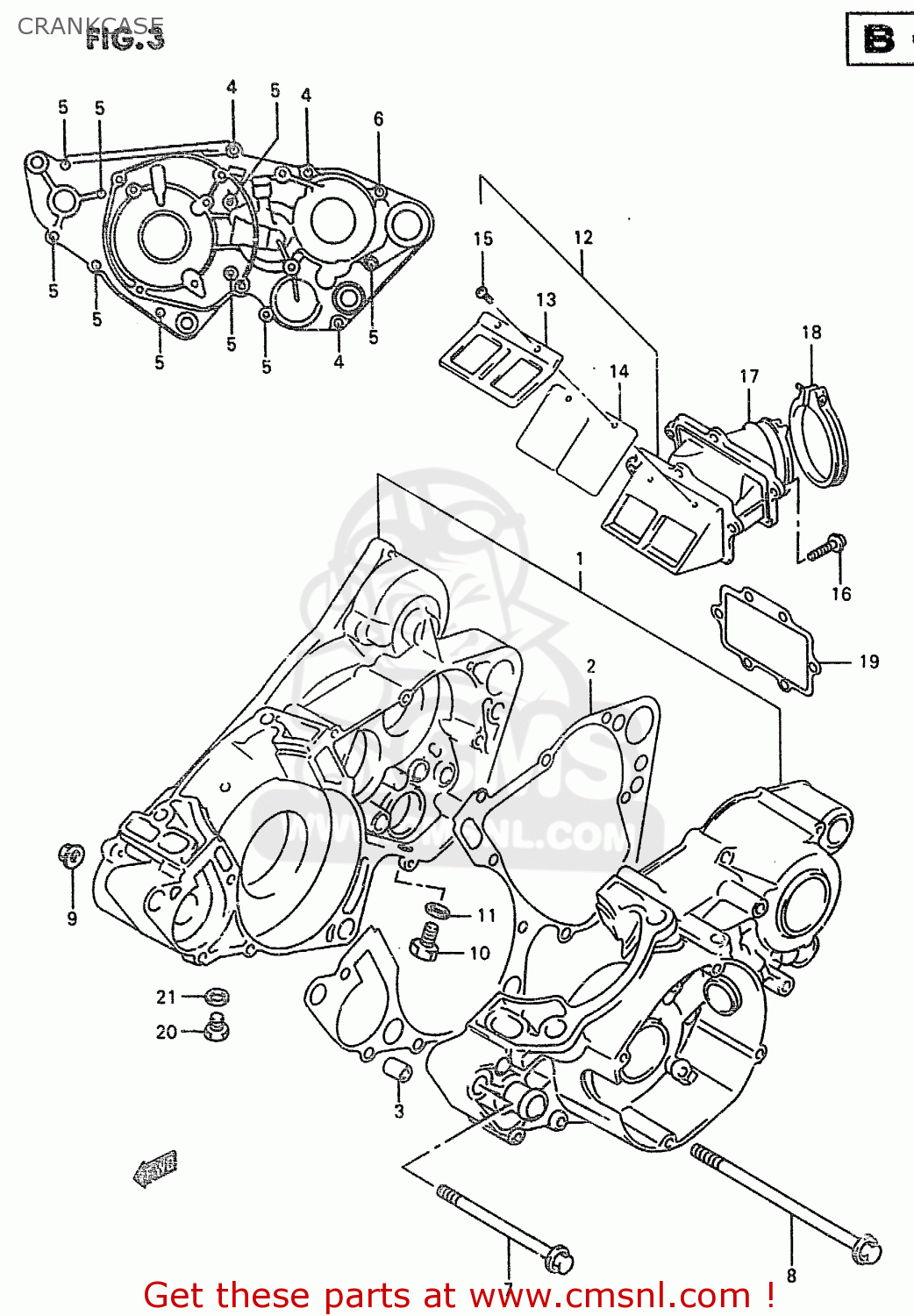

Crankcase diagram RM250 1996 (T) (E02 E04 E24)
CRANKCASE RM250 1996 (T) (E02 E04 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130037820
ref: 1-1
MODEL T ->11300-3782
CRANKCASE SET
€ 804.50
1-2
1130037821
ref: 1-2
MODEL V ~E. NO. 1080
CRANKCASE SET
€ 804.50
1-3
1130037822
ref: 1-3
MODEL V E. NO. 10808
CRANKCASE SET
€ 804.50
1-4
1130037830
ref: 1-4
MODEL W
CRANKCASE SET
€ 558.50
2
1148137E01
ref: 2
GASKET,CRANKCASE
€ 13.00
3
0920613017
ref: 3
PIN(13X10.4X20)
€ 9.00
4
0154706403
ref: 4
BOLT
€ 3.00
5
0154706503
ref: 5
BOLT
€ 3.50
6
0154706653
ref: 6
BOLT
€ 2.00
7
0910310087
ref: 7
BOLT(10X105)
€ 6.50
8
0910310119
ref: 8
BOLT(10X140)
€ 7.50
9
0915910060
ref: 9
NUT
€ 2.00
10
0150012163
ref: 10
Bolt
€ 3.50
11
0916812002
ref: 11
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
12-1
1315037E01
ref: 12-1
MODEL T/V
VALVE ASSEMBLY,REED
€ 80.50
12-2
1315037E10
ref: 12-2
MODEL W
VALVE ASSY,REED
€ 93.00
13-1
1315237E01
ref: 13-1
MODEL T/V
STOPPER,REED VALVE
€ 5.00
13-2
1315237E10
ref: 13-2
MODEL W
STOPPER,REED VALVE
€ 7.00
14
1315337E00
ref: 14
VALVE,REED
€ 14.00
15
0211233083
ref: 15
SCREW
€ 2.00
16-1
0154706203
ref: 16-1
MODEL T/V
SCREW
€ 2.50
16-2
0154706203
ref: 16-2
MODEL W
SCREW
€ 2.50
17-1
1311037E00
ref: 17-1
MODEL T/V
PIPE COMP,INTAKE
€ 55.00
17-2
1311037E20
ref: 17-2
MODEL W
PIPE,INTAKE
€ 62.50
18-1
0940252208
ref: 18-1
MODEL T/V
CLAMP
€ 5.50
18-2
0940256208
ref: 18-2
MODEL W
CLAMP
€ 3.50
19
1315637E10
ref: 19
MODEL W
GASKET,REED VALVE
€ 24.50
20
1741520920
ref: 20
BOLT,DRAIN
€ 5.00
21
0916808008
ref: 21
GASKET 8.2X14X1 (NAS)
€ 1.00
