STAND - FOOTREST

RM250 1996 (T) (E02 E04 E24)

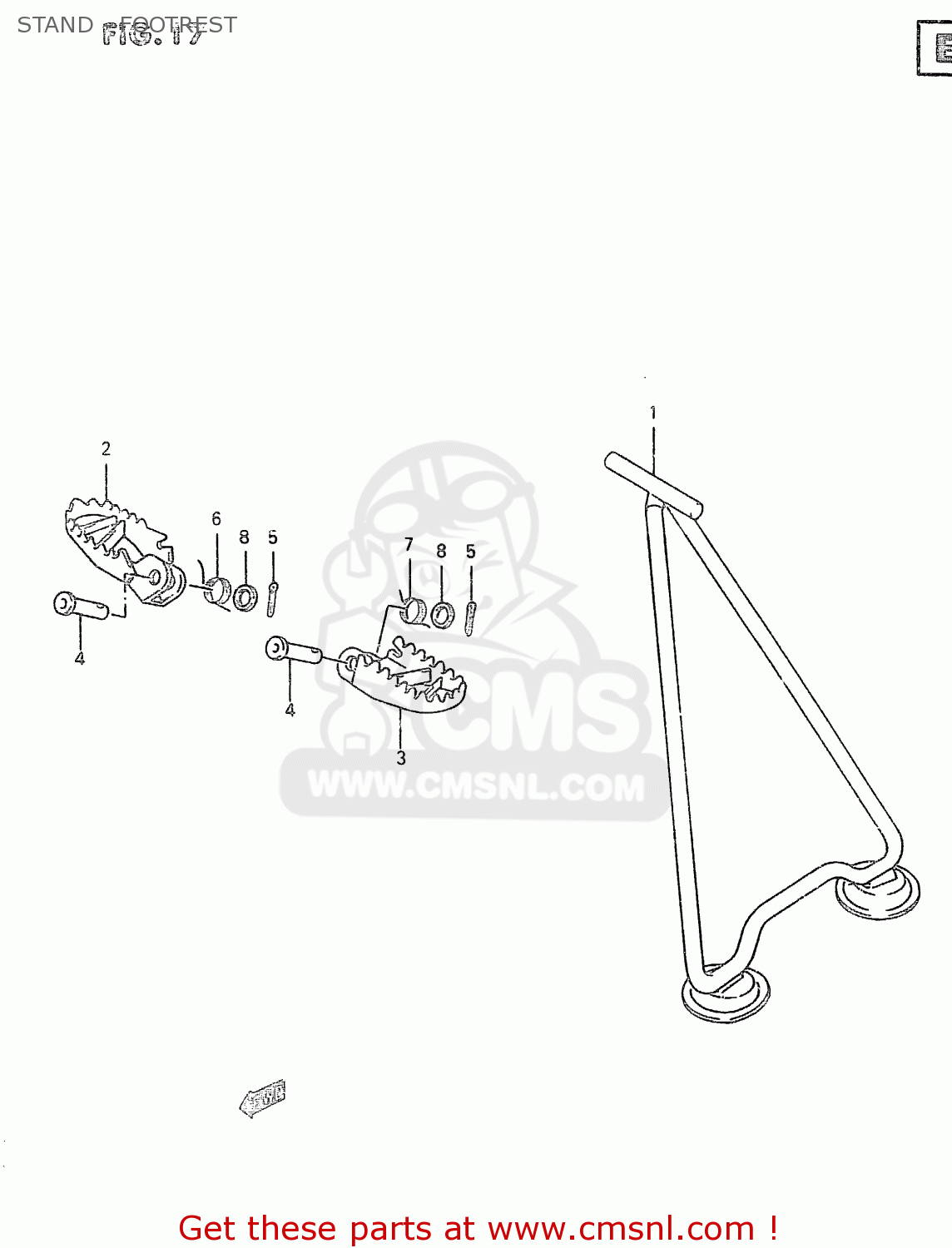

Stand - footrest diagram RM250 1996 (T) (E02 E04 E24)

STAND - FOOTREST RM250 1996 (T) (E02 E04 E24)

STAND - FOOTREST RM250 1996 (T) (E02 E04 E24)

prices are in EUR

ref

part #

description

quantity

1-1

4231028E10
ref: 1-1
MODEL T

STAND COMP

€ 99.50

1-2

4231028E11
ref: 1-2
MODEL V/W

STAND

€ 99.50

2

4355136E00019
ref: 2

FOOTREST,RIGHT

€ 54.00

3

4356136E00019
ref: 3

FOOTREST,L

€ 66.00

4

0920010019
ref: 4

PIN(10X41.5)

€ 6.00

5

0411125208
ref: 5

PIN 25X20

€ 2.00

6

0944818030
ref: 6

SPRING

€ 5.00

7

0944818029
ref: 7

SPRING

€ 5.00

8

0832201103
ref: 8

WASHER

€ 2.50
