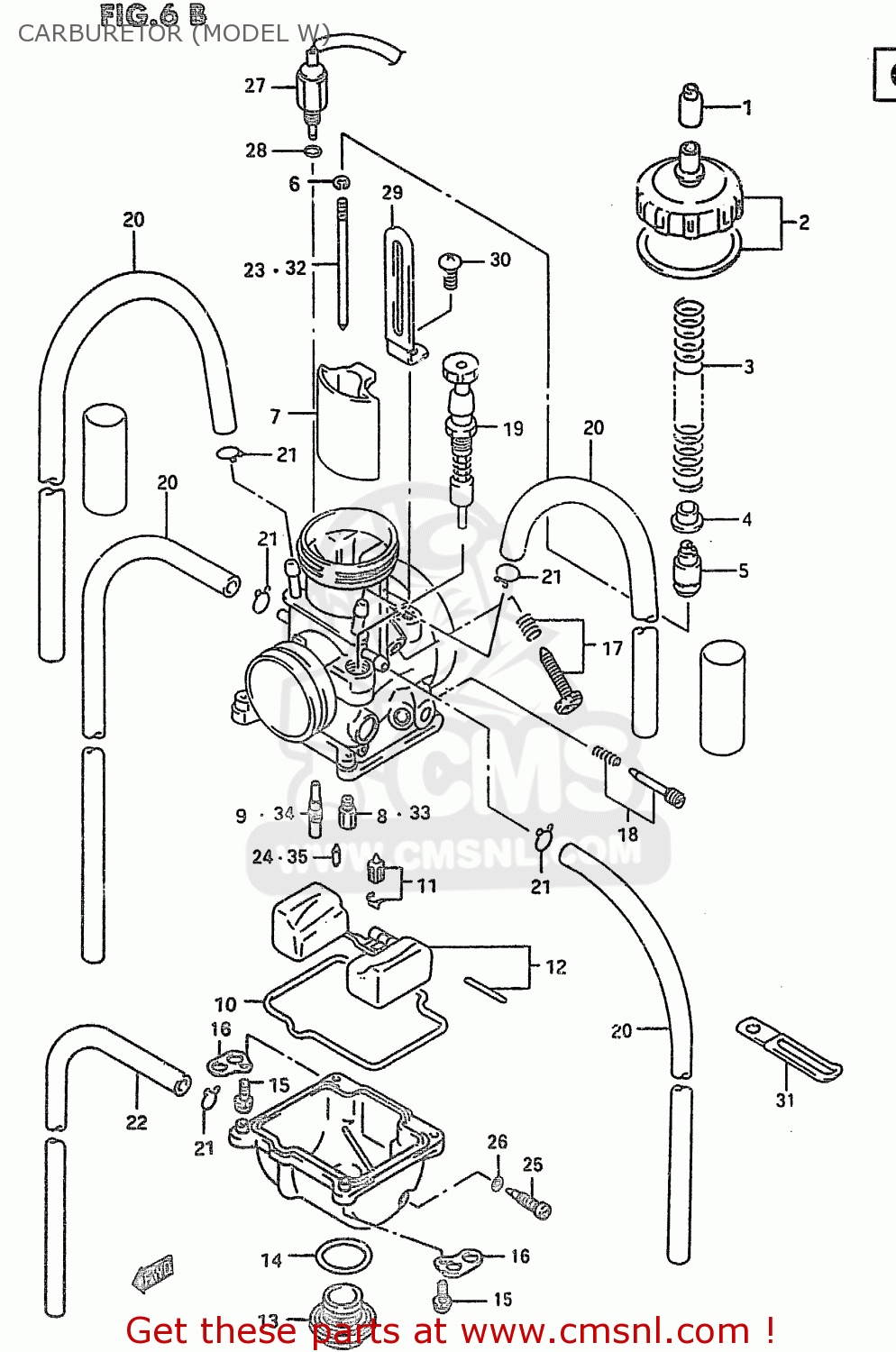

CARBURETOR (MODEL W)

ref

part #

description

quantity

0

1320037E20
ref: 0

CARBURETOR ASSY

€ 352.00

1

1368143D30
ref: 1

CAP,CARBURETOR

€ 7.50

2

1326043D30
ref: 2

CAP SET,TOP

€ 43.50

3

1357343D30
ref: 3

SPRING,THROTTLE VALVE

€ 9.00

4

1342443D30
ref: 4

COLLAR,THROTTLE VALVE

€ 5.00

5

1358143D30
ref: 5

HOLDER,CABLE

€ 19.00

6

1339428E00
ref: 6

CLIP,NEEDLE

€ 3.50

7

1355137E00
ref: 7

VALVE,THROTTLE

€ 114.50

8

0949132011
ref: 8

JET,MAIN(162)

€ 13.00

9

0949245032
ref: 9

JET,PILOT(45)

€ 9.00

10

1369644E00
ref: 10

GASKET,FLOAT CAHMBER

€ 11.00

11

1337043D30
ref: 11

VALVE SET,FLOAT

€ 40.50

12

1324028E00
ref: 12

FLOAT SET

€ 49.00

13

1324728E00
ref: 13

BOLT,DRAIN

€ 15.00

14

1324628E00
ref: 14

O RING

€ 3.50

15

0211234163
ref: 15

SCREW

€ 3.00

16

1369336E00
ref: 16

PLATE

€ 4.50

17

1327043D30
ref: 17

SCREW SET,STOP

€ 14.50

18

1328043D30
ref: 18

SCREW SET,AIR

€ 18.50

19

1341043D30
ref: 19

STARTER VALVE

€ 64.50

20

1368636E00
ref: 20
UP/RH L:620->580 UP/

HOSE(4X7X620)

€ 7.50

21

0940106101
ref: 21

CLIP

€ 2.50

22

0935135653600
ref: 22
L:600->330

HOSE(3.5X6.5X600)

€ 5.50

23

1338337EK0
ref: 23

NEEDLE(N1EI)

€ 12.00

24

0949260018
ref: 24

JET,POWER(60)

€ 10.00

25

1324744E00
ref: 25

SCREW,DRAIN

€ 4.50

26

1325644E00
ref: 26

O RING

€ 2.00

27

1316037E00
ref: 27

SOLENOID ASSEMBLY

€ 105.50

28

1345337E00
ref: 28

O RING

€ 4.00

29

1345137E00
ref: 29

CLAMP

€ 6.00

30

1345237E00
ref: 30

SCREW

€ 2.00

31

0940406429
ref: 31

CLAMP(L:45)

€ 2.50

32-1

1338337EC0
ref: 32-1
OPT

NEEDLE(N0ZG)

€ 12.50

32-2

1338337ED0
ref: 32-2
OPT

NEEDLE(N0ZH)

€ 10.00

32-3

1338337EE0
ref: 32-3
OPT

NEEDLE(N0ZI)

€ 12.00

32-4

1338337EF0
ref: 32-4
OPT

NEEDLE(N0ZJ)

€ 12.00

32-5

1338337EG0
ref: 32-5
OPT

NEEDLE(N0ZK)

€ 13.00

32-6

1338337EH0
ref: 32-6
OPT

NEEDLE(N1EG)

€ 11.00

32-7

1338337EJ0
ref: 32-7
OPT

NEEDLE (N1EH)

€ 10.50

32-8

1338337EK0
ref: 32-8
OPT

NEEDLE(N1EI)

€ 12.00

32-9

1338337EL0
ref: 32-9
OPT

NEEDLE(N1EJ)

€ 9.50

32-10

1338337EM0
ref: 32-10
OPT

NEEDLE(N1EK)

€ 12.00

33-1

0949130018
ref: 33-1
OPT

JET,MAIN(150)

€ 13.00

33-2

0949130019
ref: 33-2
OPT

JET,MAIN(152)

€ 13.00

33-3

0949131012
ref: 33-3
OPT

JET,MAIN(155)

€ 13.00

33-4

0949131013
ref: 33-4
OPT

JET,MAIN(158)

€ 13.00

33-5

0949132010
ref: 33-5
OPT

JET,MAIN(160)

€ 13.00

33-6

0949132011
ref: 33-6
OPT

JET,MAIN(162)

€ 13.00

33-7

0949133009
ref: 33-7
OPT

JET,MAIN(165)

€ 9.00

33-8

0949133010
ref: 33-8
OPT

JET,MAIN(168)

€ 12.50

33-9

0949134010
ref: 33-9
OPT

JET,MAIN(170)

€ 12.50

33-10

0949134011
ref: 33-10
OPT

JET,MAIN(172)

€ 12.50

33-11

0949135009
ref: 33-11
OPT

JET,MAIN(175)

€ 15.50

33-12

0949135010
ref: 33-12
OPT

JET,MAIN(178)

€ 15.50

33-13

0949136008
ref: 33-13
OPT

JET,MAIN(180)

€ 15.50

33-14

0949137008
ref: 33-14
OPT

JET,MAIN(185)

€ 15.50

33-15

0949138011
ref: 33-15
OPT

JET,MAIN(190)

€ 15.50

33-16

0949139001
ref: 33-16
OPT

JET,MAIN(195)

€ 12.50

33-17

0949140013
ref: 33-17
OPT

JET,MAIN(200)

€ 12.50

33-18

0949141001
ref: 33-18
OPT

JET,MAIN(205)

€ 8.50

33-19

0949142006
ref: 33-19
OPT

JET,MAIN(210)

€ 8.50

34-1

0949235019
ref: 34-1
OPT

JET,SLOW(35)

€ 13.00

34-2

0949240022
ref: 34-2
OPT

JET,SLOW(40)

€ 15.50

34-3

0949242019
ref: 34-3
OPT

JET,SLOW(42)

€ 12.50

34-4

0949245032
ref: 34-4
OPT

JET,PILOT(45)

€ 9.00

34-5

0949248013
ref: 34-5
OPT

JET,SLOW(48)

€ 9.50

34-6

0949250023
ref: 34-6
OPT

JET,SLOW(50)

€ 11.50

34-7

0949252011
ref: 34-7
OPT

JET,SLOW(52)

€ 11.50

34-8

0949255017
ref: 34-8
OPT

JET,SLOW(55)

€ 11.50

34-9

0949258001
ref: 34-9
OPT

JET,PILOT(58)

€ 9.50

34-10

0949260016
ref: 34-10
OPT

JET,SLOW(60)

€ 12.50

35-1

0949250025
ref: 35-1
OPT

JET,POWER(50)

€ 9.50

35-2

0949255019
ref: 35-2
OPT

JET,POWER(55)

€ 13.00

35-3

0949260018
ref: 35-3
OPT

JET,POWER(60)

€ 10.00

all assemblies
