KICK STARTER
RM250 1996 (T) (E02 E04 E24)

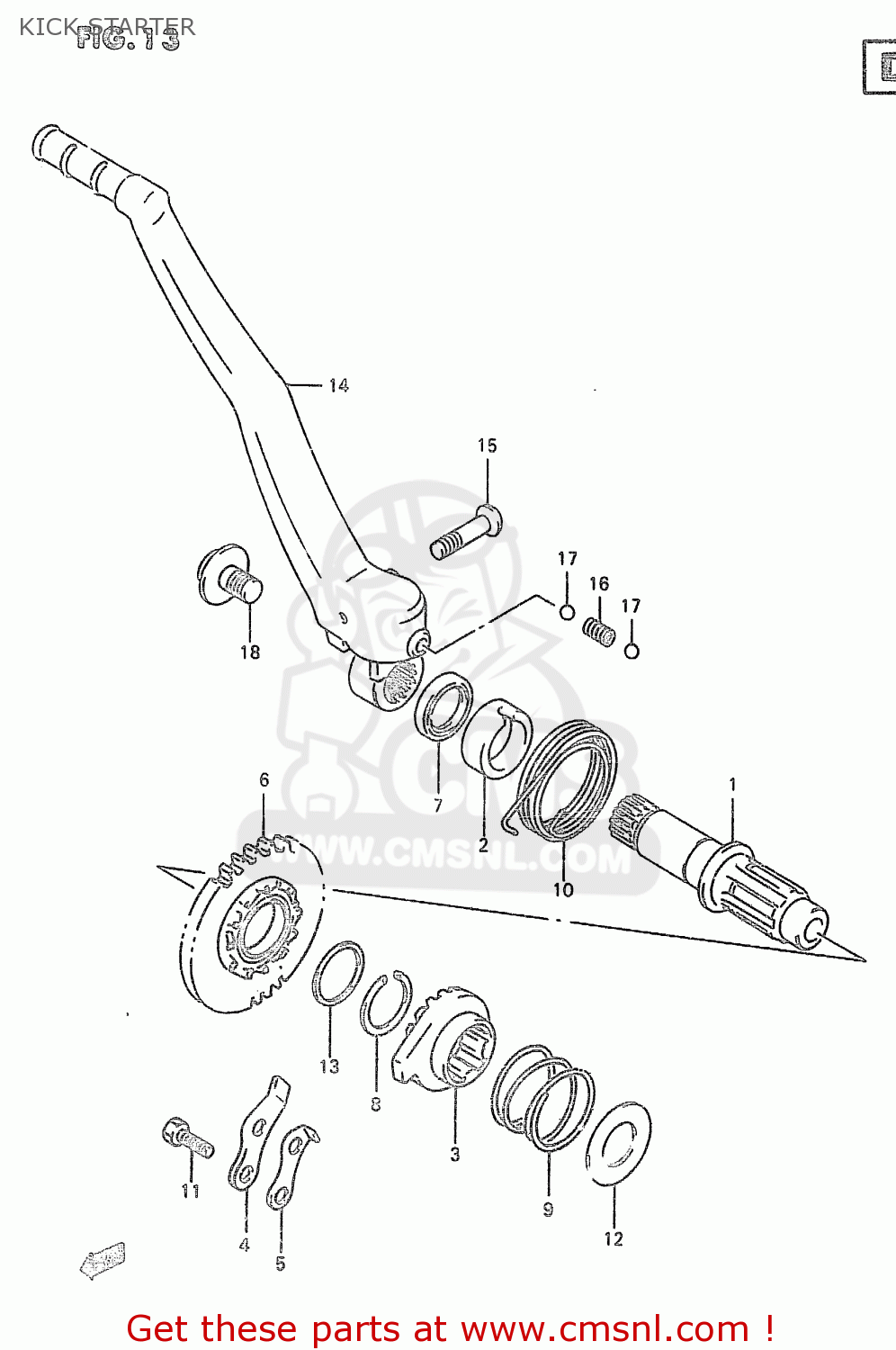

Kick starter diagram RM250 1996 (T) (E02 E04 E24)
KICK STARTER RM250 1996 (T) (E02 E04 E24)
×
prices are in EUR
ref
part #
description
quantity
1
2621105D02
ref: 1
SHAFT,KICK STARTER
€ 69.00
2
2622101B00
ref: 2
GUIDE,KICK STARTER SHAFT
€ 3.00
3-1
2623128E20
ref: 3-1
MODEL T/V
STARTER,KICK
€ 36.00
3-2
2623128E21
ref: 3-2
MODEL W
STARTER,KICK
€ 36.00
4
2623240200
ref: 4
GUIDE,KICK STARTER
€ 3.00
5-1
2623340200
ref: 5-1
MODEL T
STOPPER,KICK STARTER
€ 2.50
5-2
2623340201
ref: 5-2
MODEL V/W
STOPPER,KICK STARTER
€ 2.50
6
2624037E00
ref: 6
NT:28
GEAR,KICK STARTER DRIVE(NT:28)
€ 57.50
7
0928320031
ref: 7
20X27X5
SEAL,OIL(20X27X5)
€ 5.00
8
0938022006
ref: 8
CIRCLIP
€ 3.00
9
0944032002
ref: 9
SPRING
€ 2.00
10
0944848012
ref: 10
SPRING
€ 15.50
11
0150006123
ref: 11
BOLT
€ 2.00
12
0821117341
ref: 12
WASHER
€ 2.00
13-1
0821122281
ref: 13-1
MODEL T
SHIM
€ 4.00
13-2
0918122139
ref: 13-2
MODEL V/W, 22X28X1.0
SHIM(22X28X1)
€ 4.00
14-1
2630037E01
ref: 14-1
MODEL T, <-26300-37E
LEVER ASSEMBLY,KICK STARTER
€ 303.00
14-2
2630037E10
ref: 14-2
MODEL V/W
LEVER ASSEMBLY,KICK STARTER
€ 303.00
15
0912706016
ref: 15
6X27.5
SCREW(6X27.5)
€ 3.00
16
0944005031
ref: 16
SPRING
€ 1.50
17
0611107004
ref: 17
BALL
€ 1.50
18
0910308340
ref: 18
BOLT(8X14)
€ 5.50
