FRONT MASTER CYLINDER
RM250 1996 (T) (E02 E04 E24)

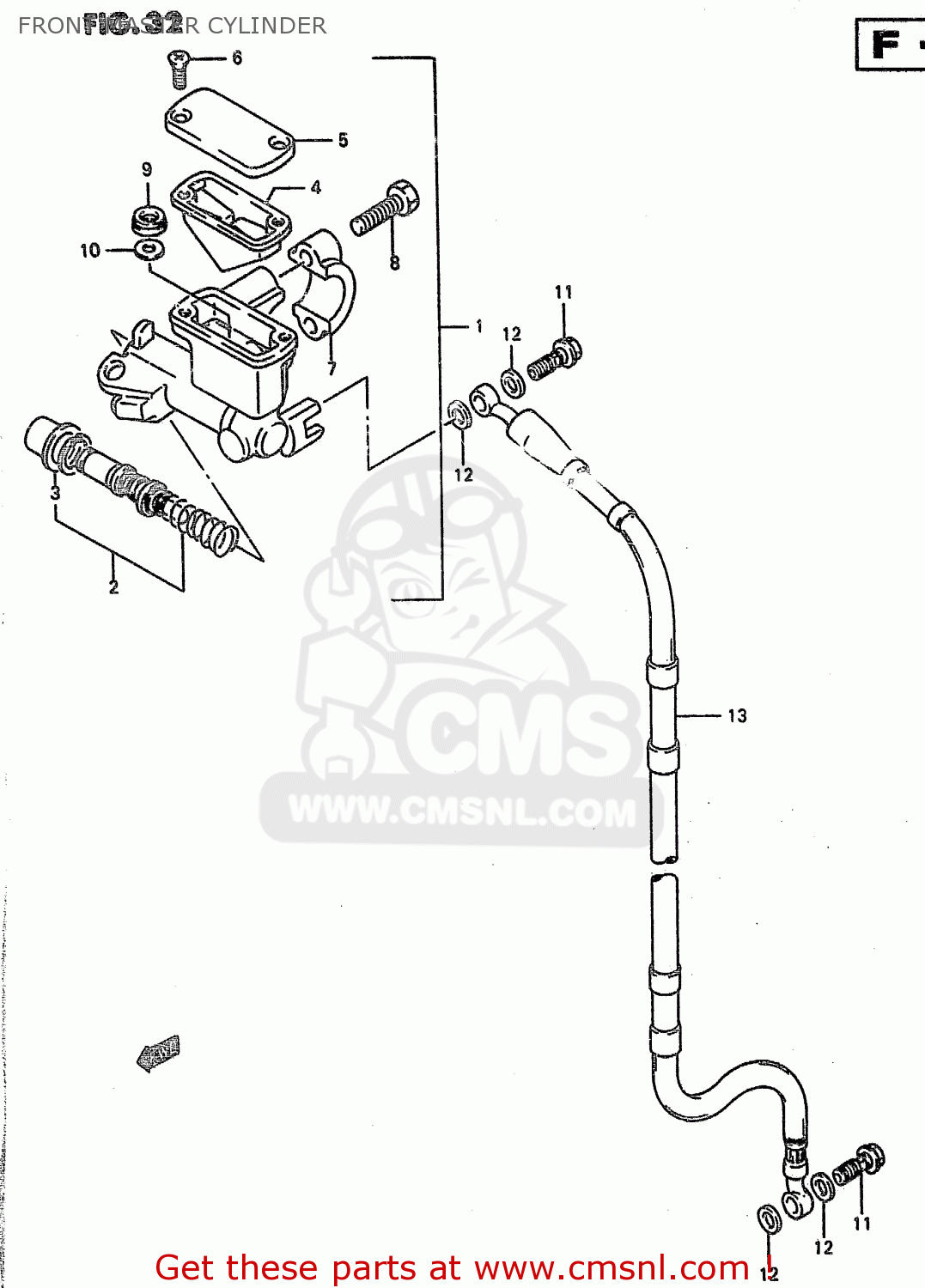

Front master cylinder diagram RM250 1996 (T) (E02 E04 E24)
FRONT MASTER CYLINDER RM250 1996 (T) (E02 E04 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
5960036E00
ref: 1-1
MODEL T
CYLINDER ASSY,FR MASTER
€ 184.00
1-2
5960036E10
ref: 1-2
MODEL V/W
CYLINDER ASSY,FR MASTER
€ 252.50
2
5960036830
ref: 2
PISTON & CUP SET
€ 44.00
3
5966636E00
ref: 3
BOOT
€ 43.00
4
5966736E00
ref: 4
DIAPHRAGM
€ 9.00
5-1
5966936E00
ref: 5-1
MODEL T
CAP
€ 10.00
5-2
5966936E10
ref: 5-2
MODEL V/W
CAP
€ 15.00
6
6968949300
ref: 6
SCREW
€ 1.50
7-1
5967136500
ref: 7-1
MODEL T
HOLDER
€ 10.00
7-2
5967127C00
ref: 7-2
MODEL V/W
HOLDER
€ 9.50
8
5967527C00
ref: 8
BOLT
€ 2.50
9
5974836E00
ref: 9
SEPARATOR
€ 5.00
10
6974436E00
ref: 10
RING
€ 2.00
11
0936010042
ref: 11
BOLT UNION
€ 5.00
12
0916110009
ref: 12
WASHER(10X15X1.5)
€ 2.00
13-1
5948036E00
ref: 13-1
MODEL T
HOSE COMP,FRONT BRAKE
€ 181.00
13-2
5948036E10
ref: 13-2
MODEL V/W
HOSE COMP,FRONT BRAKE
€ 181.00
