GEAR SHIFTING
RM250 1996 (T) (E02 E04 E24)

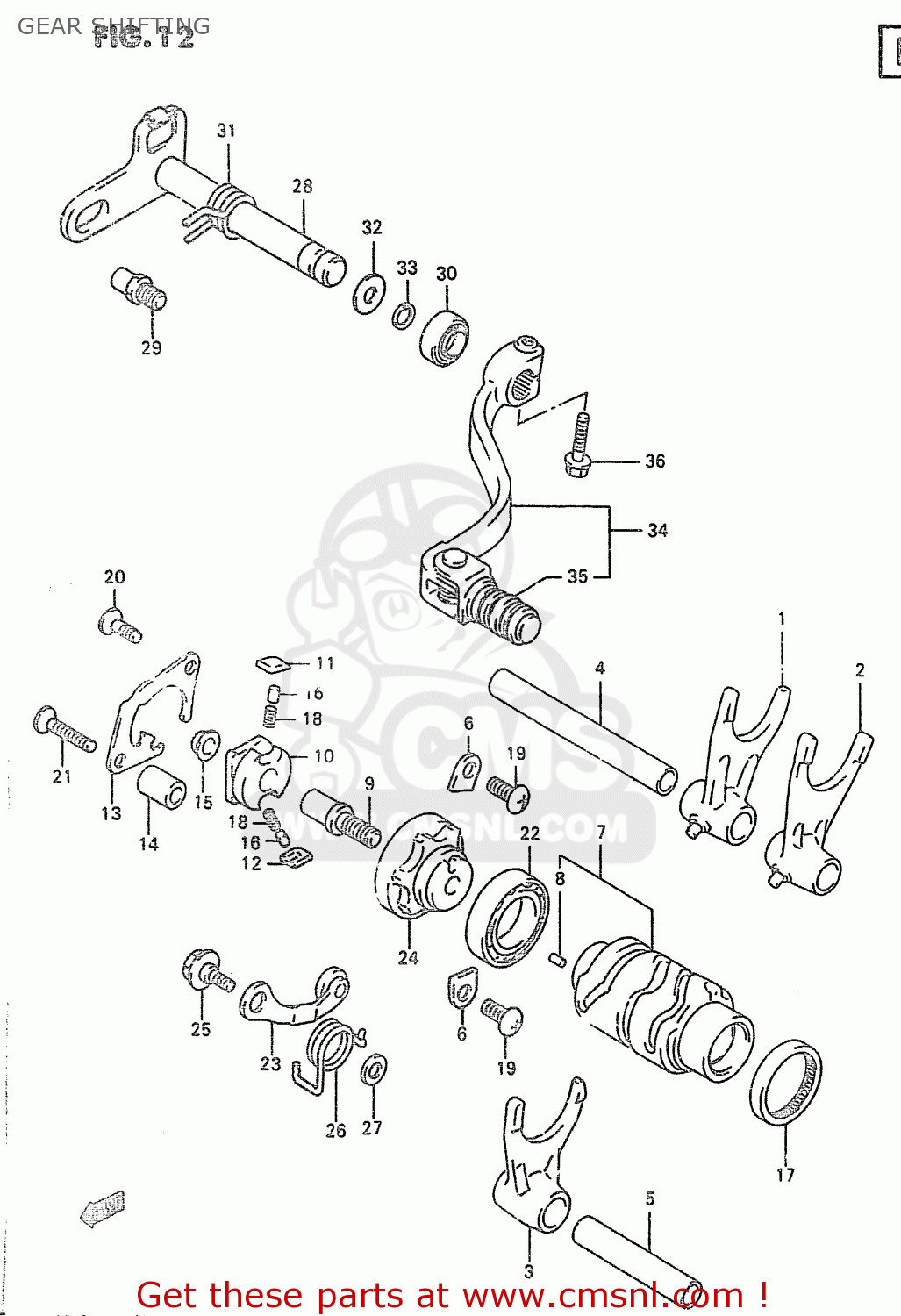

Gear shifting diagram RM250 1996 (T) (E02 E04 E24)
GEAR SHIFTING RM250 1996 (T) (E02 E04 E24)
×
prices are in EUR
ref
part #
description
quantity
1
2521128C01
ref: 1
FORK,GEAR SHIFT NO.1
€ 45.00
2-1
2522128C02
ref: 2-1
MODEL T/V
FORK,GEAR SHIFT NO.2
€ 45.00
2-2
2522137E10
ref: 2-2
MODEL W
FORK,GEAR SHIFT NO.2
€ 63.00
3
2523128C02
ref: 3
FORK,GEAR SHIFT NO.3
€ 48.00
4
2541127C00
ref: 4
SHAFT,GEAR SHIFT FORK
€ 11.50
5
2542127C00
ref: 5
SHAFT,GEAR SHIFT FORK
€ 9.50
6
2474121A00
ref: 6
RETAINER
€ 2.00
7
2531037E00
ref: 7
CAM,GEAR SHIFT
€ 166.00
8
0422104089
ref: 8
PIN
€ 1.50
9-1
2531327C01
ref: 9-1
MODEL T
PIN,SHIFT CAM DRIVEN GEAR
€ 6.00
9-2
2531327C02
ref: 9-2
MODEL V/W
PIN,SHIFT CAM DRIVEN GEAR
€ 6.00
10-1
2532233C01
ref: 10-1
MODEL T/V <-25322-33
SHIFTER,GEAR SHIFT CAM
€ 49.50
10-2
2532236E00
ref: 10-2
MODEL W
SHIFTER,GEAR SHIFT CAM
€ 28.00
11
2532334201
ref: 11
PAWL,GEAR SHIFT NO.1
€ 6.00
12
2532434201
ref: 12
PAWL,GEAR SHIFT NO.2
€ 6.00
13
2533137E00
ref: 13
LIFTER,GEAR SHIFT PAWL
€ 12.50
14
0918006204
ref: 14
MODEL T, 6.2/12X18
SPACER(6.2X12X18)
€ 6.50
15
0918007014
ref: 15
SPACER(7X10X5)
€ 4.00
16
0926105003
ref: 16
PIN(5X8)
€ 1.50
17
0926333004
ref: 17
33X38X8
BEARING(33X38X8)
€ 21.50
18
0944004003
ref: 18
SPRING
€ 1.50
19
0211206123
ref: 19
SCREW
€ 1.50
20-1
0212206123
ref: 20-1
MODEL T
SCREW
€ 3.00
20-2
0212206123
ref: 20-2
MODEL V/W
SCREW
€ 3.00
21
0212206303
ref: 21
MODEL T
SCREW
€ 2.00
22
0814069050
ref: 22
BEARING
€ 28.50
23
2535028C20
ref: 23
STOPPER,SHIFT CAM
€ 12.00
24
2538128C20
ref: 24
PLATE,SHIFT CAM STOPPER
€ 31.50
25
0911106041
ref: 25
6X14.3
BOLT(6X14.3)
€ 3.00
26-1
0944818024
ref: 26-1
MODEL T
SPRING
€ 3.50
26-2
0944818025
ref: 26-2
MODEL V/W
SPRING
€ 5.00
27
0821106121
ref: 27
WASHER
€ 2.00
28
2551037E00
ref: 28
SHAFT,GEAR SHIFT
€ 61.00
29
2567138B00
ref: 29
STOPPER,SHIFT ARM
€ 3.00
30
0928314006
ref: 30
14X22X6
SEAL,OIL(14X22X6)
€ 6.50
31
0944420004
ref: 31
SPRING
€ 7.00
32-1
0821114201
ref: 32-1
MODEL T
WASHER
€ 2.50
32-2
0918114139
ref: 32-2
MODEL V/W, 14X20X1.0
SHIM(14X20X1)
€ 2.50
33
0833131146
ref: 33
CIRCLIP
€ 2.00
34
2560037E00
ref: 34
LEVER ASSEMBLY,GEAR SHIFTING
€ 73.00
35
2565227C00
ref: 35
RUBBER,GEAR SHIFT PEDAL
€ 21.00
36
0154706253
ref: 36
SCREW
€ 2.50
