FRONT DAMPER (MODEL V)
RM250 1996 (T) (E02 E04 E24)

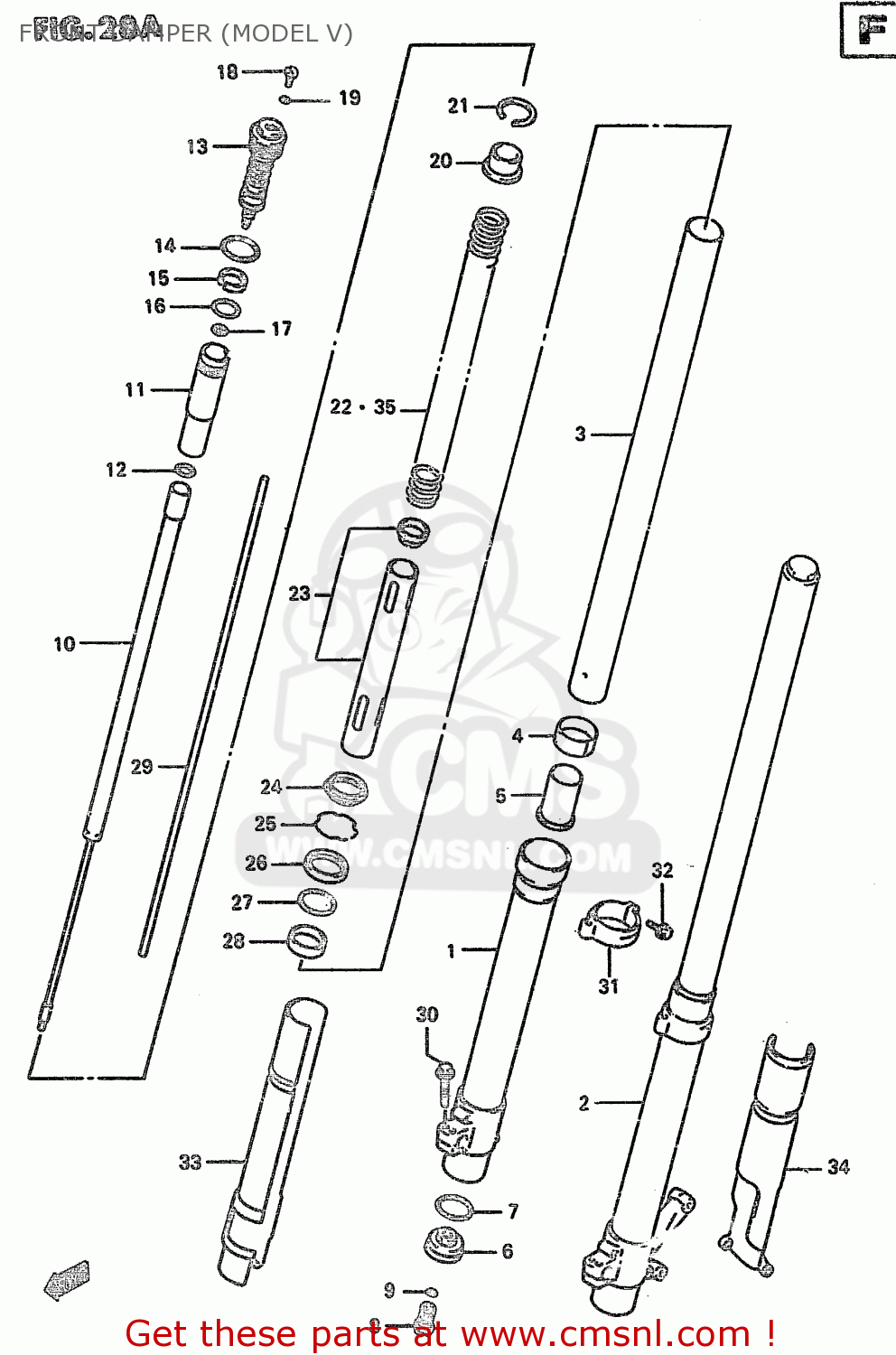

Front damper (model v) diagram RM250 1996 (T) (E02 E04 E24)
FRONT DAMPER (MODEL V) RM250 1996 (T) (E02 E04 E24)
×
prices are in EUR
ref
part #
description
quantity
0
5110337E30
ref: 0
DAMPER ASSEMBLY,FRONT FORK
€ 1,372.50
0
5110437E30
ref: 0
DAMPER ASSEMBLY,FRONT FORK
€ 1,372.50
1
5113036E20
ref: 1
TUBE,OUTER,RIGHT
€ 610.00
2
5114036E20
ref: 2
TUBE,OUTER,LEFT
€ 476.00
3
5111036E20
ref: 3
TUBE,INNER
€ 451.50
4
5112136E00
ref: 4
BUSH,SLIDE
€ 17.50
5
5119536E30
ref: 5
PIECE,OIL LOCK
€ 50.00
6
5120536E20
ref: 6
PLATE,END
€ 35.50
7
5111727C40
ref: 7
O RING
€ 3.50
8
5117036E20
ref: 8
BOLT,CTR
€ 128.50
9
5117736E20
ref: 9
O RING
€ 2.50
10
5119036E30
ref: 10
ROD,FR DAMPER
€ 639.00
11
5119836E20
ref: 11
TANK,SUB
€ 107.00
12
5117436E30
ref: 12
O-RING
€ 3.50
13
5135136E30
ref: 13
BOLT,FORK
€ 220.00
14
5111736E00
ref: 14
O RING
€ 3.50
15
5112328E30
ref: 15
BUSH,FORK BOLT SLIDE
€ 9.50
16
5117436E20
ref: 16
O RING
€ 3.00
17
5117536E20
ref: 17
O RING
€ 2.50
18
5135728E30
ref: 18
BOLT,PLUG
€ 8.00
19
5135828E30
ref: 19
O RING,PLUG
€ 2.50
20
5135536E20
ref: 20
SPRING,STOPPER
€ 15.00
21
5135436E20
ref: 21
RING,STOPPER
€ 2.50
22
5117137E20
ref: 22
SPRING,FRONT (K=0.42)
€ 47.50
23
5117636E20
ref: 23
COLLAR,SPRING
€ 112.00
24
5117336E00
ref: 24
SEAL,DUST
€ 19.50
25
5115636E00
ref: 25
RING,STOPPER
€ 4.50
26
5115336E00
ref: 26
SEAL,OIL
€ 19.00
27
5115836E00
ref: 27
SPACER,SEAL
€ 5.00
28
5116736E00
ref: 28
BUSH,GUIDE
€ 22.00
29
5119136E20
ref: 29
ROD,PUSH
€ 10.00
30
5132127C40
ref: 30
BOLT,HANDLE HOLDER(8X35)
€ 3.00
31-1
5121136E00
ref: 31-1
GUIDE,FR PROTECTOR,R
€ 33.50
31-2
5122136E00
ref: 31-2
GUIDE,FR PROTECTOR,L
€ 33.50
32
5862843D00
ref: 32
BOLT,PROTECTOR GUIDE,6
€ 2.50
33
5155136E1025Y
ref: 33
OPT
PROTECTOR,OUTER TUBE,R
€ 50.00
34
5155236E1025Y
ref: 34
OPT
PROTECTOR,OUTER TUBE,L
€ 51.00
35
5117137E30
ref: 35
OPT
SPRING,FR(K=0.40)
€ 70.50
