REAR BRAKE

RM250 1996 (T) (E02 E04 E24)

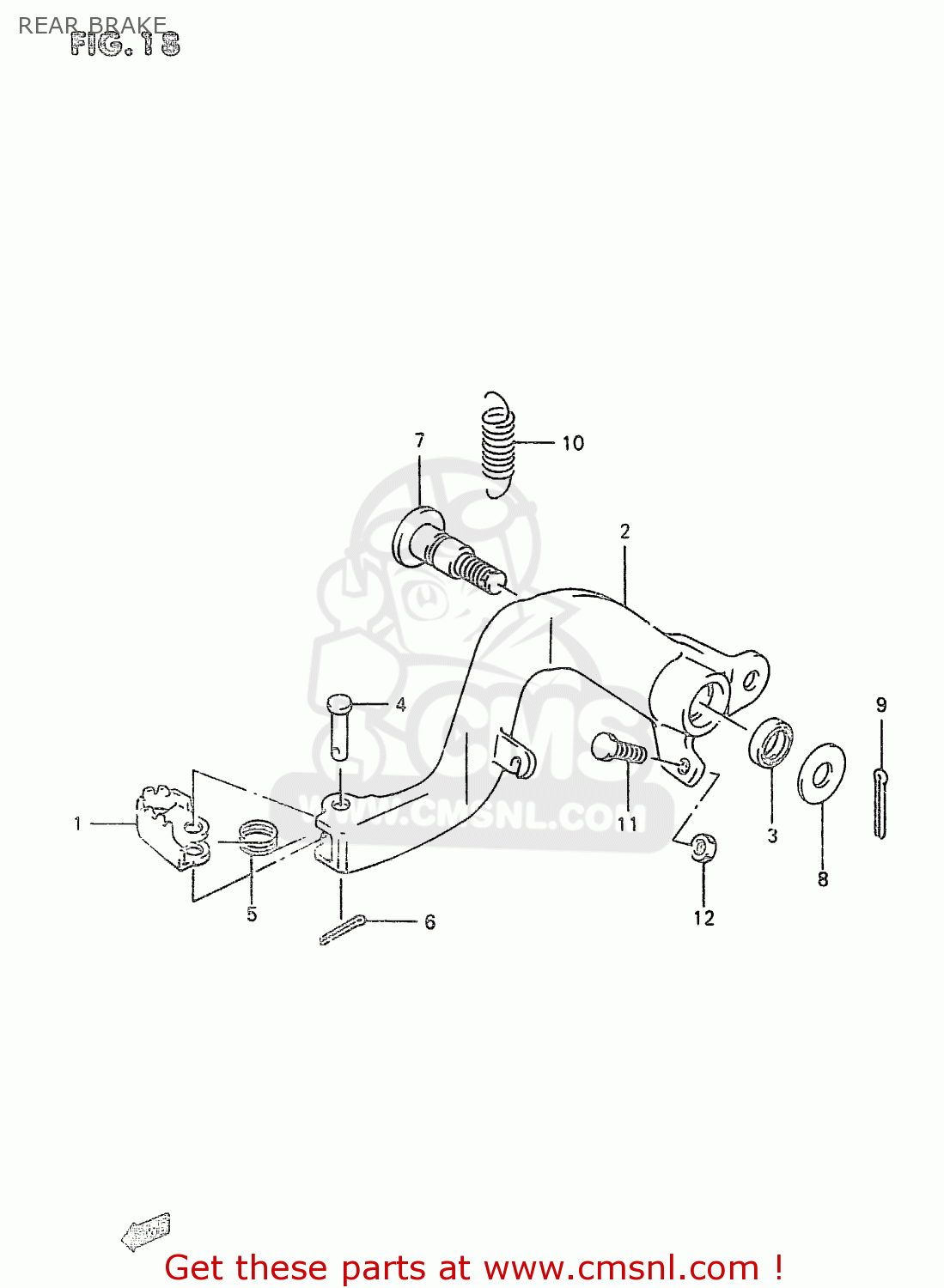

Rear brake diagram RM250 1996 (T) (E02 E04 E24)

REAR BRAKE RM250 1996 (T) (E02 E04 E24)

REAR BRAKE RM250 1996 (T) (E02 E04 E24)

prices are in EUR

ref

part #

description

quantity

1

4311043D00
ref: 1

PEDAL,BRAKE

€ 6.00

2

4312037E00
ref: 2

ARM,BRAKE PEDAL

€ 142.50

3

0928415006
ref: 3

SEAL,OIL(15X21X3)

€ 3.50

4

0920006062
ref: 4

PIN(6X23.5)

€ 2.50

5

0944411006
ref: 5

SPRING

€ 3.50

6

0411120158
ref: 6

PIN

€ 1.50

7

4314227C00
ref: 7

SHAFT,BRAKE PEDAL

€ 15.00

8

0821110261
ref: 8

WASHER

€ 2.50

9

0411120208
ref: 9

PIN 20X20

€ 1.50

10

0944311032
ref: 10

SPRING,BRAKE PEDAL RETURN

€ 6.00

11

0910006009
ref: 11

BOLT(6X23)

€ 1.50

12

0831000063
ref: 12

NUT 6MM

€ 2.00
