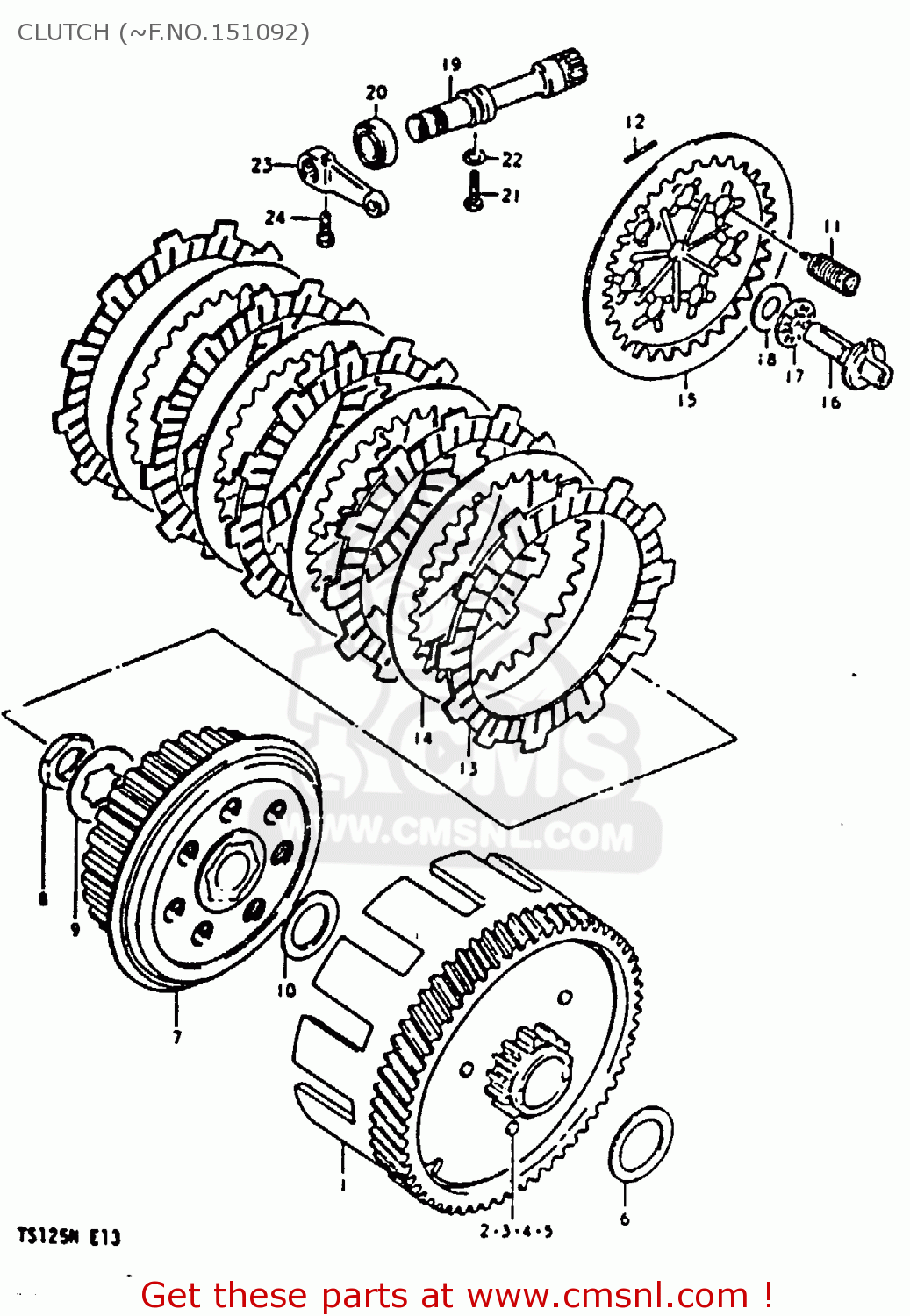

CLUTCH (~F.NO.151092)

ref

part #

description

quantity

1-1

2120048002
ref: 1-1
NT:57/17, ~E.NO.1788

GEAR ASSEMBLY,PRIMARY DRIVE

€ 178.00

1-2

2120048003
ref: 1-2
NT:57/17, E.NO.17887

GEAR ASSEMBLY,PRIMARY DRIVE

€ 178.00

2

2123128041
ref: 2

DAMPER NO.1

€ 2.50

3

2123228040
ref: 3

DAMPER,PRI DRIVEN GEAR NO.2

€ 5.00

4

2124128001
ref: 4

PLATE

€ 10.00

5

0502205249
ref: 5

RIVET

€ 1.00

6

0821120323
ref: 6

WASHER

€ 2.50

7

2141028000
ref: 7

HUB,CLUTCH SLEEVE

€ 68.50

8

0914016001
ref: 8

NUT

€ 4.50

9

0916717002
ref: 9

WASHER,LOCK

€ 2.00

10

0821117282
ref: 10

WASHER

€ 3.00

11

0944312018
ref: 11

SPRING

€ 3.00

12

0926102001
ref: 12

PIN(2.5X19.8)

€ 1.50

13

2144128301
ref: 13

PLATE,CLUTCH DRIVE

€ 8.50

14

2145128000
ref: 14

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

15

2146028200
ref: 15

PLATE,CLUTCH PRESSURE

€ 21.50

16

2316548000
ref: 16

BACK,CLUTCH RELEASE

€ 20.00

17

0926310002
ref: 17

BEARING(10X22X2.8)

€ 8.50

18

0916010021
ref: 18

WASHER(10.1X21.4X0.8)

€ 3.00

19

2326148000
ref: 19

PINION,CLUTCH RELEASE

€ 28.50

20

0928512002
ref: 20

OIL SEAL

€ 7.00

21

0913506009
ref: 21

BOLT(6X12)

€ 2.00

22

0832221068
ref: 22

WASHER

€ 2.00

23

2327129300
ref: 23

ARM,CLUTCH RELEASE

€ 23.50

24

0110706208
ref: 24

BOLT

€ 2.00

all assemblies
