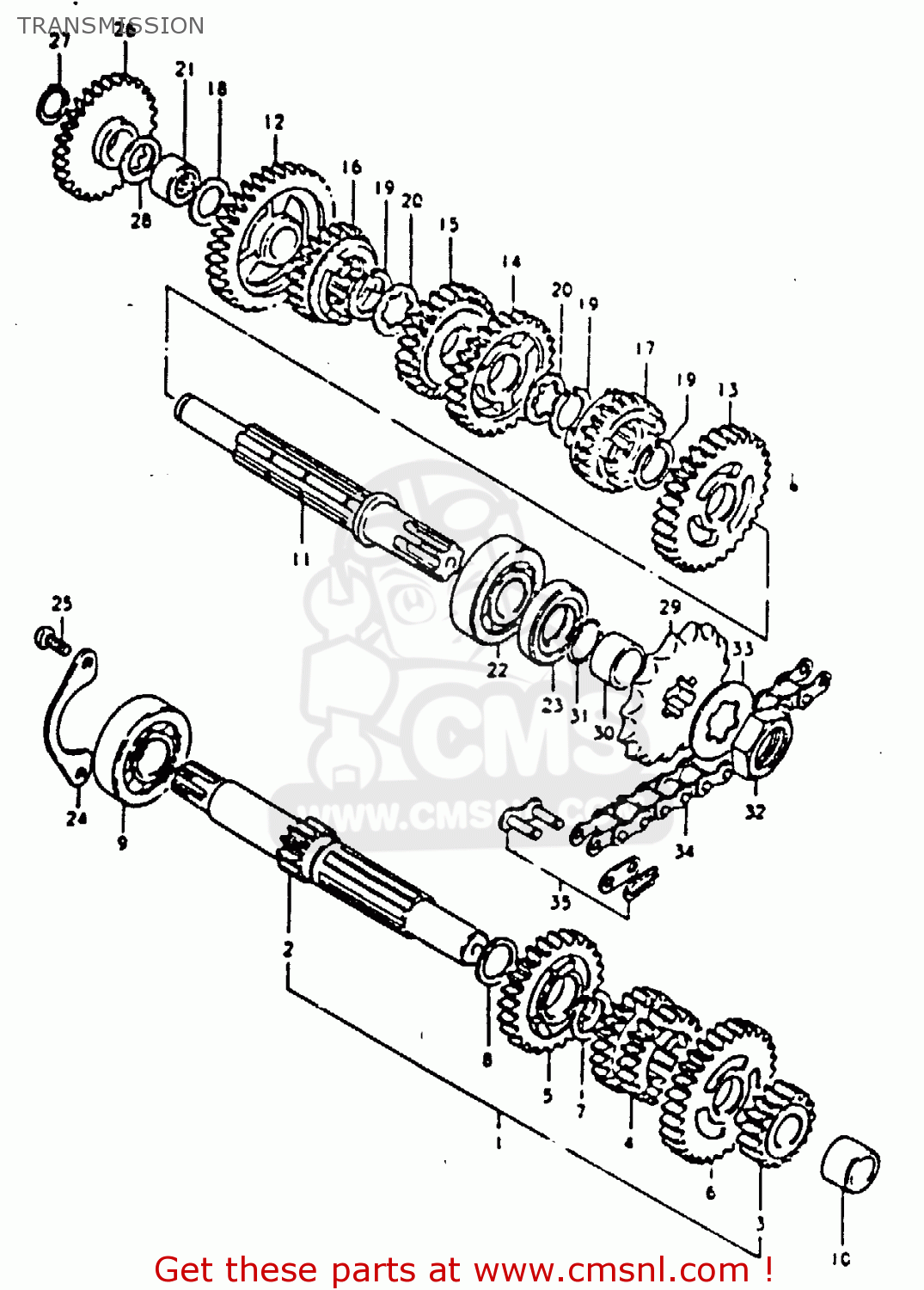

TRANSMISSION

ref

part #

description

quantity

1

2412048011
ref: 1

SHAFT ASSEMBLY,COUNTER

€ 0.00

2

2412148001
ref: 2

SHAFT,COUNTER

€ 71.50

3

2422148000
ref: 3

GEAR,SECOND DRIVE

€ 31.50

4

2423148000
ref: 4

GEAR,THIRD/FOURTH DRIVE

€ 71.50

5

2425148010
ref: 5

GEAR,FIFTH DRIVE

€ 44.50

6

2426048011
ref: 6

GEAR,SIXTH DRIVE

€ 54.50

7

0938020007
ref: 7

CIRCLIP

€ 3.00

8

0821120261
ref: 8

WASHER

€ 2.50

9

0811362040
ref: 9

Bearing

€ 28.00

10

0930015009
ref: 10

BUSH(15X22X15)

€ 10.00

11

2413148000
ref: 11

SHAFT,GEAR SHIFT

€ 104.50

12

2431048001
ref: 12

GEAR,1ST DRIVEN

€ 54.50

13

2432148002
ref: 13

GEAR,SECOND DRIVEN

€ 48.00

14

2433148000
ref: 14

GEAR,THIRD DRIVEN

€ 50.00

15

2434148000
ref: 15

GEAR,FOURTH DRIVEN

€ 47.50

16

2435148011
ref: 16

GEAR,FIFTH DRIVEN

€ 52.00

17

2436148011
ref: 17

GEAR,SIXTH DRIVEN

€ 57.00

18

0821115261
ref: 18

WASHER,THRUST

€ 2.50

19

0938020007
ref: 19

CIRCLIP

€ 3.00

20

0916720011
ref: 20

WASHER,LOCK

€ 2.50

21

0926315012
ref: 21

BEARING(15X22X12)

€ 11.50

22

0811362040
ref: 22

Bearing

€ 28.00

23

0928325035
ref: 23

SEAL,OIL(25X40X7)

€ 6.50

24

2474148000
ref: 24

RETAINER,CNTR SHAFT BEARING

€ 5.50

25

0211206128
ref: 25

SCREW 6X12

€ 2.00

26

2626028002
ref: 26

GEAR,KICK STARTER IDLE

€ 38.00

27

0833131159
ref: 27

CIRCLIP,15MM

€ 2.00

28

0821115261
ref: 28

WASHER,THRUST

€ 2.50

29

2751148000
ref: 29

SPROCKET,ENGINE

€ 24.50

30

0918020039
ref: 30

SPACER(20X25X12.5)

€ 9.50

31

0928020001
ref: 31

O RING(D:1,ID:19.5)

€ 2.00

32

0914020001
ref: 32

NUT

€ 3.50

33

0916720006
ref: 33

WASHER,LOCK

€ 3.00

34

2760036011
ref: 34

CHAIN ASSEMBLY,DRIVE

€ 128.00

35

2762036011
ref: 35

JOINT ASSEMBLY,CHAIN

€ 4.50
