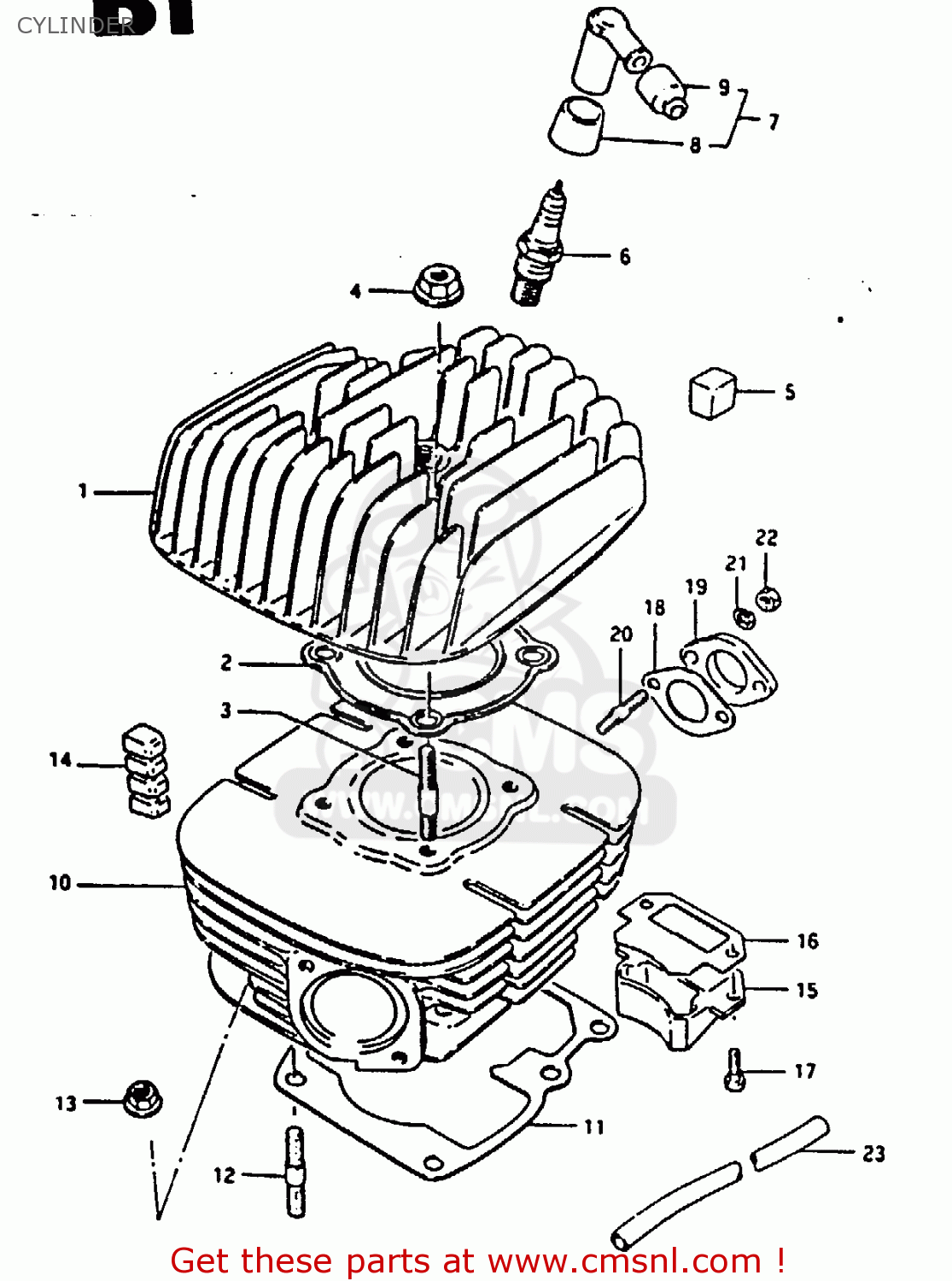

CYLINDER

ref

part #

description

quantity

1

1111148002
ref: 1

HEAD,CYLINDER

€ 187.50

2

1114148011
ref: 2

GASKET,CYLINDER HEAD (MCA)

€ 15.00

3

0142108358
ref: 3

STUD BOLT

€ 2.00

4

0831616088
ref: 4

NUT

€ 2.50

5

1125129300
ref: 5

PAD,CYLINDER

€ 6.00

6-1

0948200091
ref: 6-1

PLUG,SPARK

€ 3.00

6-2

0948200092
ref: 6-2

PLUG,SPARK(W24ES)

€ 3.50

7

3350069810
ref: 7

CAP,SPARK PLUG

€ 29.50

8

3354169010
ref: 8

SEAL,SPARK PLUG

€ 5.00

9

3354298000
ref: 9

SEAL,SPARK PLU

€ 4.50

10

1121048010
ref: 10

CYLINDER

€ 372.50

11

1124141300
ref: 11

GASKET,CYLINDER (MCA)

€ 6.00

12

0142108258
ref: 12

STUD 8X25

€ 2.50

13

0831616088
ref: 13

NUT

€ 2.50

14

1125148000
ref: 14

PAD,CYLINDER

€ 6.50

15

1315048011
ref: 15

VALVE ASSEMBLY,REED

€ 133.50

16

1315641100
ref: 16

GASKET,REED VALVE (MCA)

€ 4.50

17

0211206208
ref: 17

SCREW

€ 2.00

18

1312511000
ref: 18

GASKET,CARBURETOR (MCA)

€ 3.00

19

1312948000
ref: 19

INSULATOR,CARBURETOR

€ 9.50

20

0142108308
ref: 20

STUD BOLT

€ 2.00

21

0832121088
ref: 21

LOCK WASHER

€ 2.00

22

0831012088
ref: 22

NUT

€ 2.00

23

0934403014
ref: 23

HOSE

€ 6.50
