FRONT FORK
TS125 1979 (N) (E08 E13 E14 E24 E30 E31)

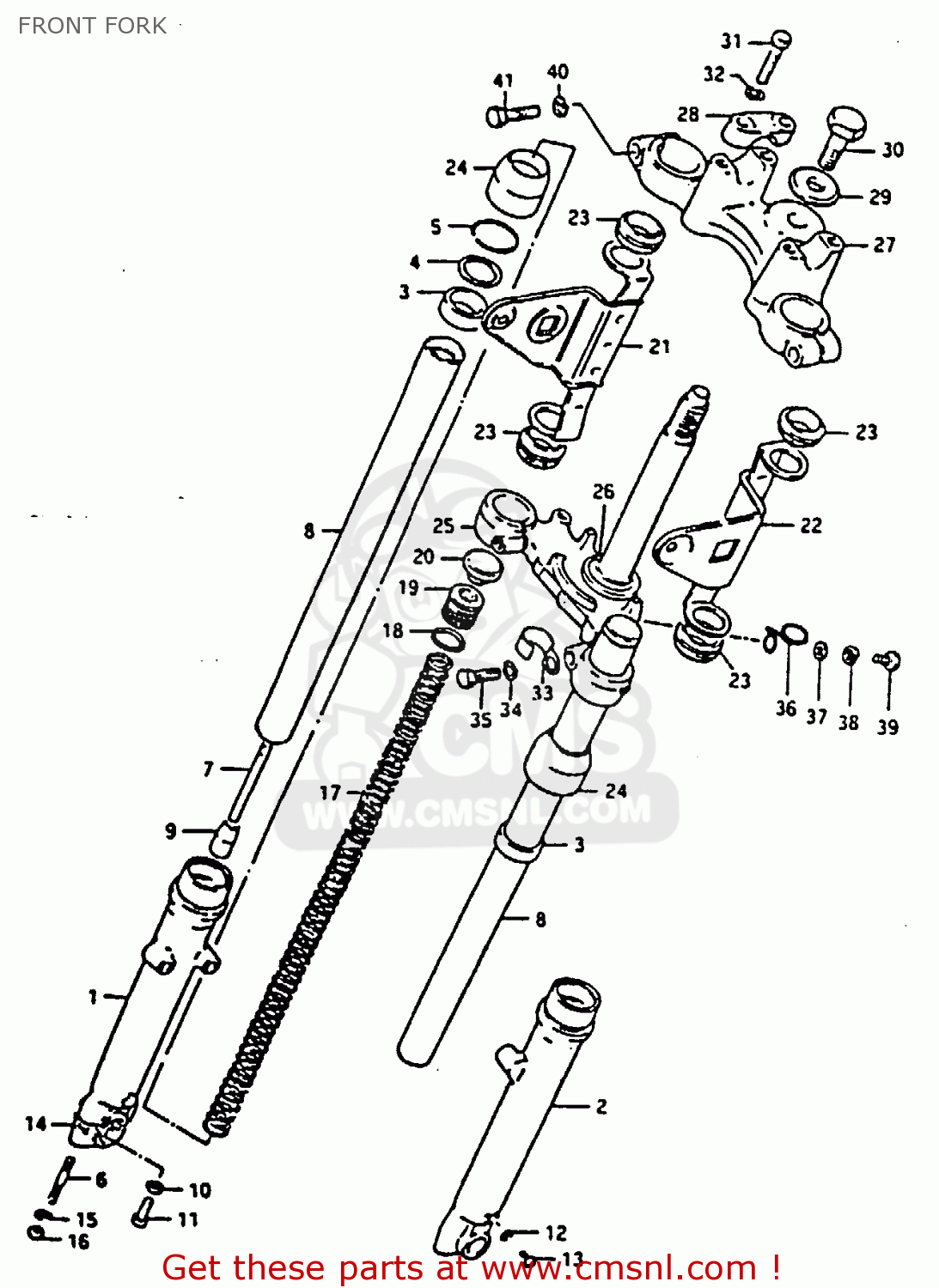

Front fork diagram TS125 1979 (N) (E08 E13 E14 E24 E30 E31)
FRONT FORK TS125 1979 (N) (E08 E13 E14 E24 E30 E31)
×
prices are in EUR
ref
part #
description
quantity
0
5110048020291
ref: 0
FORK ASSY, FRONT (BLACK)
€ 0.00
1
5113029320
ref: 1
TUBE,FORK,OUTER,RIGHT
€ 0.00
2
5114029320
ref: 2
TUBE,FORK,LEFT,OUTER
€ 0.00
3
5115329400
ref: 3
OIL SEAL,FRONT FORK
€ 11.00
4
5115836010
ref: 4
WASHER,FRONT FORK
€ 4.00
5
5115636010
ref: 5
RING,SNAP
€ 5.50
6
0142108308
ref: 6
STUD BOLT
€ 2.00
7
5114629320
ref: 7
CYLINDER,FRONT FORK
€ 0.00
8
5111029400
ref: 8
TUBE,FORK,INNER
€ 103.50
9
5119529400
ref: 9
PIECE,OIL LOCK
€ 0.00
10
5114841310
ref: 10
GASKET (NAS)
€ 2.50
11
5114716510
ref: 11
BOLT,FORK CYLINDER(10X25)
€ 3.50
12
5118303010
ref: 12
GASKET,DRAIN,PLUG (NAS)
€ 3.00
13
0211204088
ref: 13
SCREW
€ 1.50
14
5113216510
ref: 14
HOLDER,AXLE
€ 11.50
15
0832121088
ref: 15
LOCK WASHER
€ 2.00
16
0914008005
ref: 16
NUT (8MM)
€ 1.50
17
5117148020
ref: 17
SPRING
€ 0.00
18
5118129400
ref: 18
O RING
€ 2.50
19
5135129320
ref: 19
CAP
€ 13.50
20
5118929400
ref: 20
CAP,FR FORK
€ 7.00
21
5153029311291
ref: 21
BLACK
BRACKET,HEADLAMP HOUSING
€ 0.00
22
5154029311291
ref: 22
BLACK
BRACKET,HEADLAMP,LEFT
€ 0.00
23
5155329311
ref: 23
GASKET (NAS)
€ 4.00
24
5117329310
ref: 24
SEAL,DUST
€ 10.00
25
5141048010019
ref: 25
STEM, STEERING (BLACK)
€ 0.00
26
5162133001
ref: 26
RACE,STEERING OUTER LWR
€ 10.00
27
5131129320291
ref: 27
HEAD,STEERING STEM
€ 65.50
28
5621129320291
ref: 28
HOLDER,HANDLE(BLACK)
€ 12.00
29
5135622012
ref: 29
WASHER,STEM HEAD(10.5X30X3.2)
€ 4.00
30
5135120010
ref: 30
BOLT,FORK INNER TUBE
€ 25.00
31
0110708358
ref: 31
BOLT
€ 3.50
32
0832121088
ref: 32
LOCK WASHER
€ 2.00
33
5145536010
ref: 33
CLIP
€ 6.50
34
0832121128
ref: 34
WASHER,LOCK 12
€ 2.50
35
5145128012
ref: 35
BOLT,FR FORK LWR(12X33)
€ 11.50
36
5145246100
ref: 36
CLIP
€ 3.00
37
0832221068
ref: 37
WASHER
€ 2.00
38
0832121068
ref: 38
LOCK WASHER
€ 2.50
39
0211206128
ref: 39
SCREW 6X12
€ 2.00
40
0832121208
ref: 40
LOCK WASHER
€ 2.50
41
5145129400
ref: 41
BOLT,FORK INNER TUBE F
€ 4.50
