MAGNETO

TS125 1979 (N) (E08 E13 E14 E24 E30 E31)

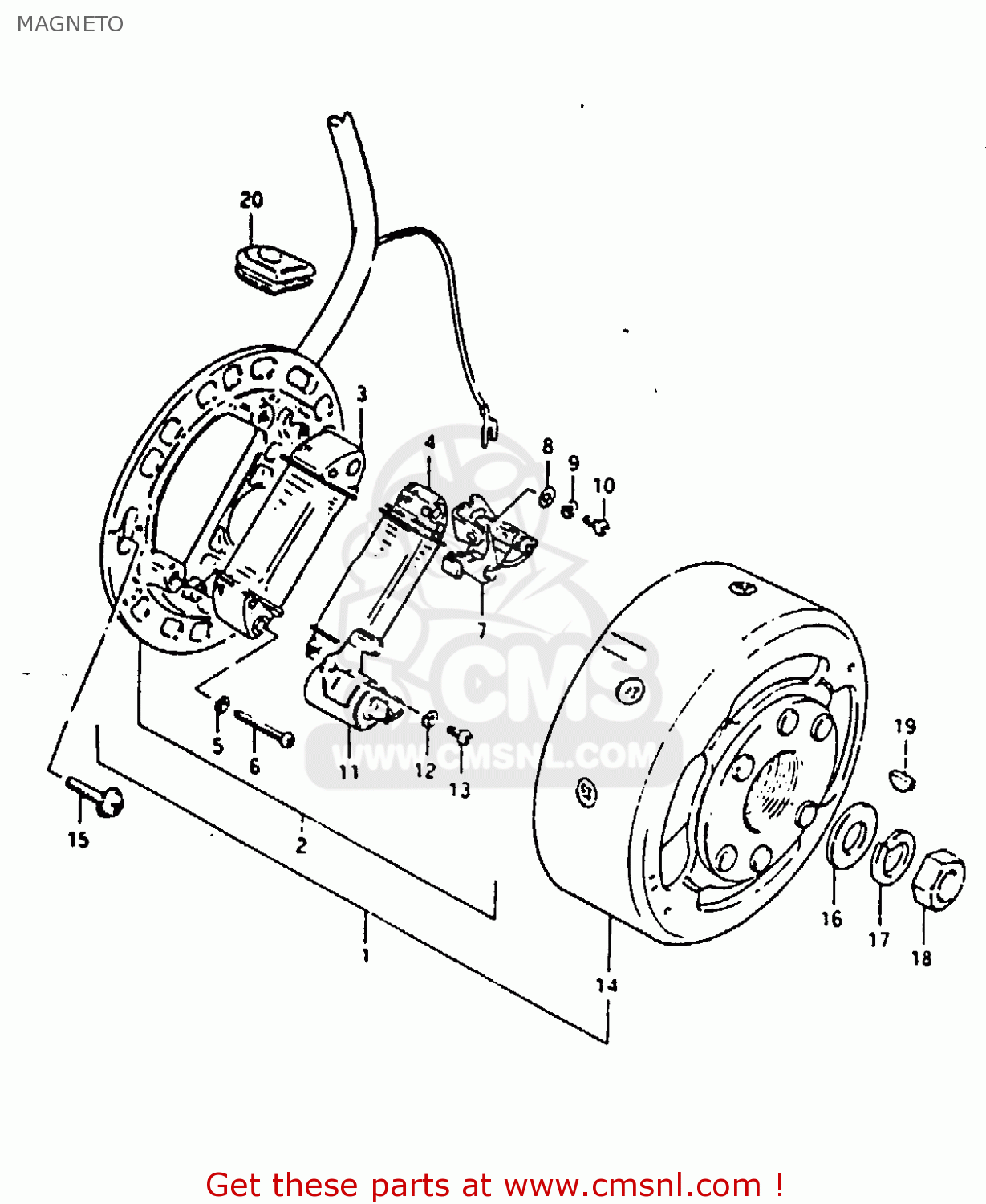

Magneto diagram TS125 1979 (N) (E08 E13 E14 E24 E30 E31)

MAGNETO TS125 1979 (N) (E08 E13 E14 E24 E30 E31)
MAGNETO TS125 1979 (N) (E08 E13 E14 E24 E30 E31)
MAGNETO TS125 1979 (N) (E08 E13 E14 E24 E30 E31)
prices are in EUR
ref
part #
description
quantity
1
3210048010
ref: 1
MAGNETO ASSY
€ 84.00
2
3210148010
ref: 2
STARTER ASSY
3210148010
€ 84.00
3
3212048010
ref: 3
COIL,LIGHTING
3212048010
€ 32.50
4
3214048010
ref: 4
COIL,PRIMARY
3214048010
€ 60.50
5
0832121048
ref: 5
LOCK WASHER
0832121048
€ 2.00
6
0211204308
ref: 6
SCREW (4X30)
€ 1.50
7
3224043012
ref: 7
POINT ASSY,CONTACT
3224043012
€ 18.50
8
0832221048
ref: 8
WASHER
0832221048
€ 2.00
9
0832121048
ref: 9
LOCK WASHER
0832121048
€ 2.00
10
0912504001
ref: 10
SCREW(4X10)
0912504001
€ 4.50
11
3234143012
ref: 11
CONDENSER
3234143012
€ 12.50
12
0832121048
ref: 12
LOCK WASHER
0832121048
€ 2.00
13
0211204088
ref: 13
SCREW
€ 1.50
14
3210248010
ref: 14
ROTOR
€ 211.50
15
0913905011
ref: 15
SCREW(5X14)
0913905011
€ 3.00
16
0832221108
ref: 16
WASHER
0832221108
€ 2.50
17
0832121108
ref: 17
LOCK WASHER
0832121108
€ 2.00
18
0914010003
ref: 18
NUT (10MM)
0914010003
€ 3.50
19
0834131039
ref: 19
KEY
0834131039
€ 2.00
20
0930909007
ref: 20
GROMMET
0930909007
€ 2.50
