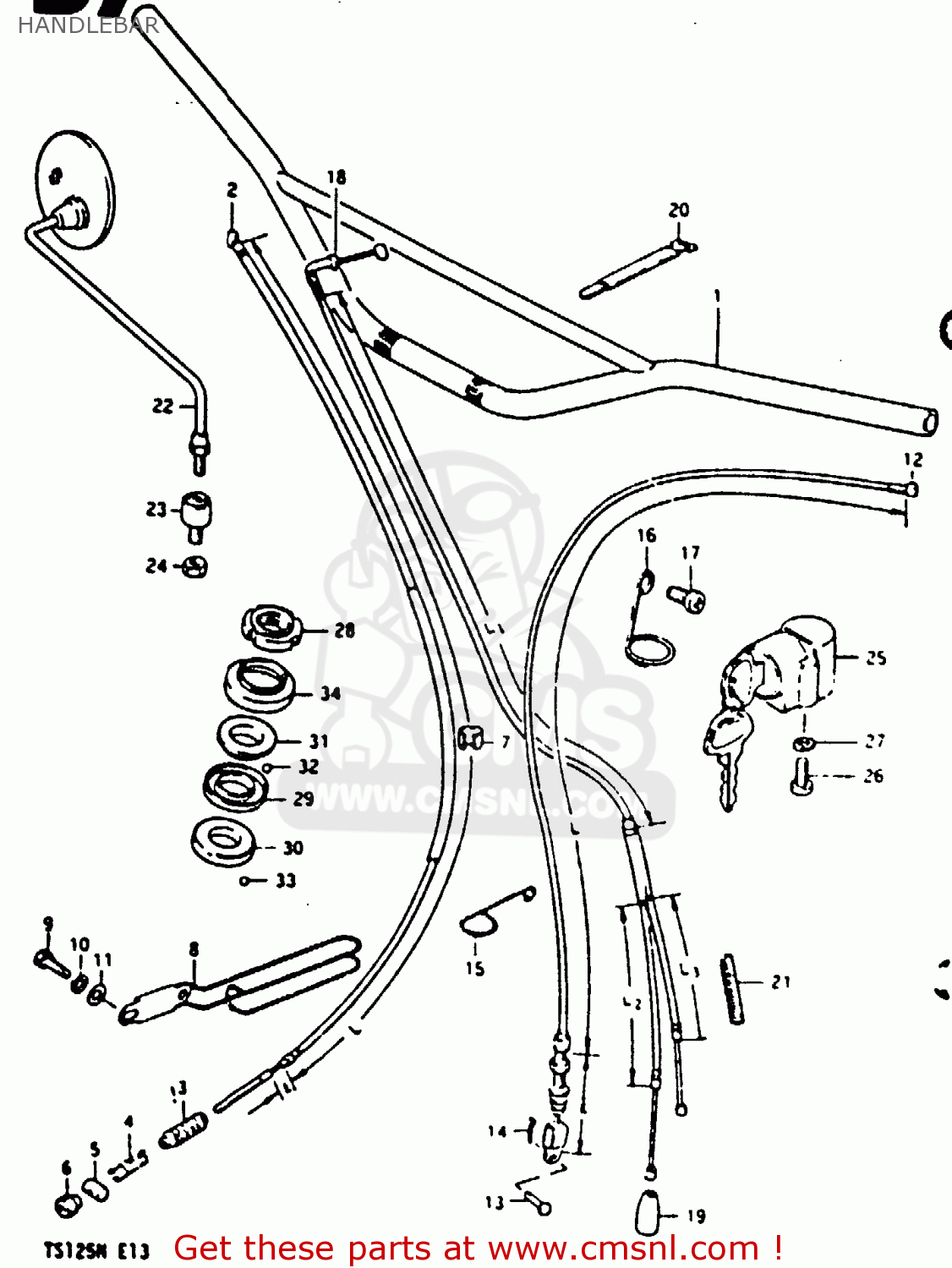

HANDLEBAR

ref

part #

description

quantity

1

5611048203291
ref: 1

HANDLEBAR

€ 49.00

2

5810028100
ref: 2

CABLE ASSEMBLY,FRONT BRAKE

€ 23.50

3

0928707001
ref: 3

SEAL,DUST(7X16X75)

€ 2.00

4

0944006003
ref: 4

SPRING

€ 2.00

5

0920910001
ref: 5

PIN,10X19

€ 2.00

6

0915005101
ref: 6

NUT

€ 3.00

7

0940800002
ref: 7

CLIP

€ 2.00

8

5862030501
ref: 8

GUIDE,CABLE

€ 16.00

9

0110708128
ref: 9

BOLT 8X12

€ 2.50

10

0832121088
ref: 10

LOCK WASHER

€ 2.00

11

0832211088
ref: 11

WASHER

€ 2.00

12

5820048000
ref: 12
L:960, L:136

CABLE ASSEMBLY,CLUTCH

€ 19.00

13

0920006011
ref: 13

PIN(L:15)

€ 2.50

14

0411120158
ref: 14

PIN

€ 1.50

15-1

3494829000
ref: 15-1

CLAMP,METER CABLE

€ 0.00

15-2

5862648500
ref: 15-2
E14

CLAMP

€ 7.50

16

3494930001
ref: 16
TO 34949-30002

CLIP,TACHOMETER CABLE

€ 15.50

17

0211206088
ref: 17

SCREW

€ 2.00

18

5830048400
ref: 18

CABLE ASSEMBLY,THROTTLE

€ 32.00

19

0928707002
ref: 19

SEAL,DUST(7X18X30)

€ 2.50

20

0940711302
ref: 20

CLAMP

€ 6.00

21

5839927100
ref: 21

PROTECTOR,CABLE

€ 10.50

22-1

5650031011
ref: 22-1
TO 56500-31012

MIRROR ASSEMBLY,RIGHT

€ 65.50

22-2

5660031011
ref: 22-2
TO 56600-31012

MIRROR ASSEMBLY,LEFT

€ 65.50

22-3

ref: 22-3

22-4

ref: 22-4

23

5670031001
ref: 23

CUSHION,REAR VIEW MIRROR

€ 18.00

24

0831022108
ref: 24

NUT

€ 2.50

25

5191025310
ref: 25
TO 51910-25311

LOCK ASSEMBLY,STEERING

€ 22.50

26

0211205128
ref: 26

SCREW

€ 2.50

27

0832121058
ref: 27

LOCK WASHER

€ 2.00

28

5163128000
ref: 28

NUT,STEERING STEM(25X44X10)

€ 12.50

29

5161120002
ref: 29

RACE,STEERING INNER UPR

€ 5.50

30

5161133002
ref: 30

LACE,STEERING INNER LWR

€ 7.00

31

5162128000
ref: 31

RACE,STEERING OUTER UPR

€ 7.00

32

0611106003
ref: 32

BALL

€ 1.50

33

0611108003
ref: 33

BALL

€ 1.50

34

5164325001
ref: 34

DUST SEAL,STEERING UPR

€ 4.50

all assemblies
