REAR FENDER

TS125 1979 (N) (E08 E13 E14 E24 E30 E31)

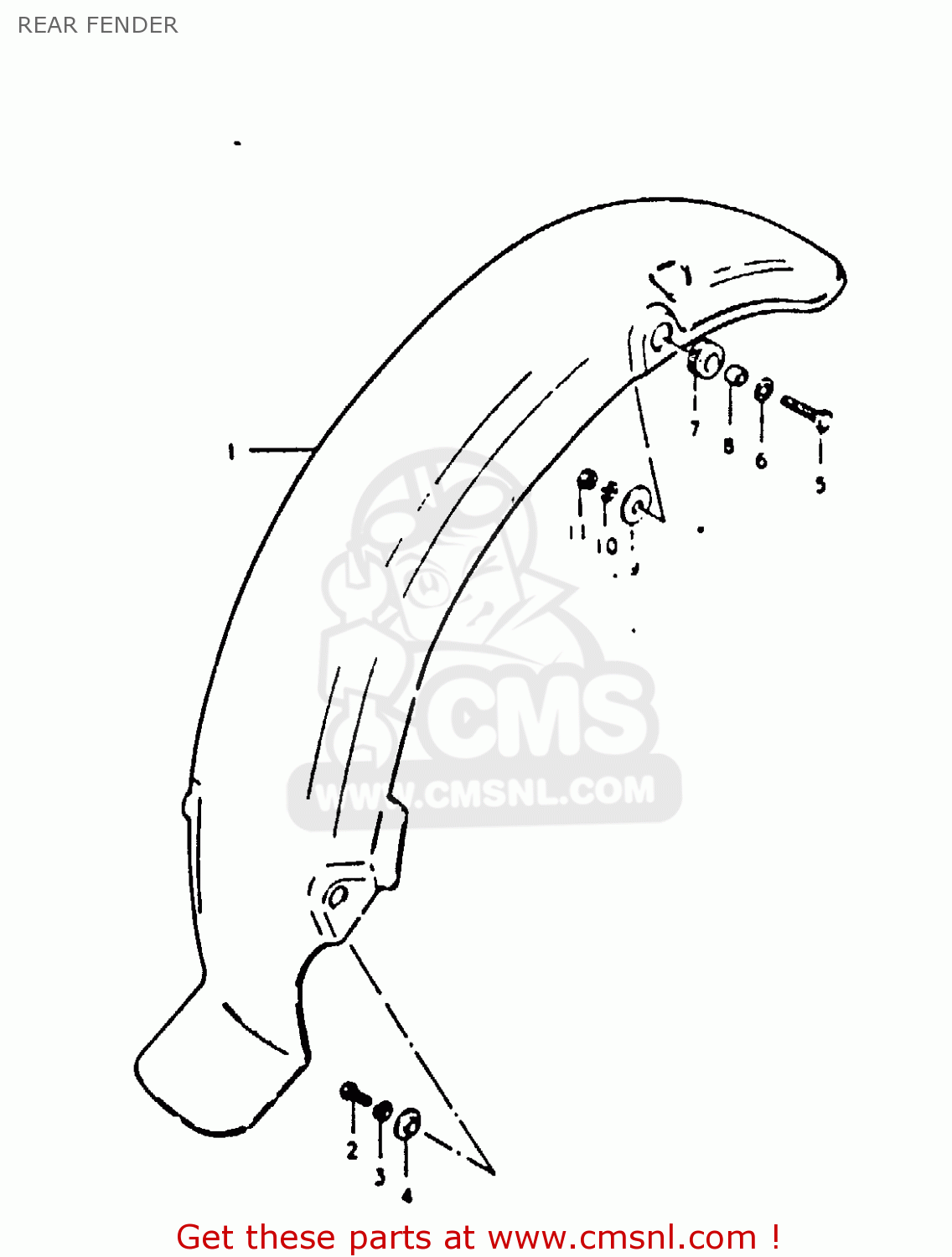

Rear fender diagram TS125 1979 (N) (E08 E13 E14 E24 E30 E31)

prices are in EUR

ref

part #

description

quantity

1-1

6311148002189
ref: 1-1

FENDER,REAR

€ 95.50

1-2

631114800207P
ref: 1-2

FENDER, REAR (RED)

€ 95.50

1-3

631114800205H
ref: 1-3

FENDER, REAR (BLUE)

€ 95.50

0110706168
ref: 2

BOLT, UPPER

€ 3.00

0832121068
ref: 3

LOCK WASHER

€ 2.50

0916906010
ref: 4

WASHER

€ 3.00

0110708358
ref: 5

BOLT

€ 3.50

0832211088
ref: 6

WASHER

€ 2.00

0932012011
ref: 7

CUSHION

€ 3.00

0918008021
ref: 8

SPACER (8.2X12X7.5)

€ 3.00

0916008032
ref: 9

WASHER(8.5X26X1.2)

€ 3.50

0832121088
ref: 10

LOCK WASHER

€ 2.00

0831012088
ref: 11

NUT

€ 2.00
