RIGHT HANDLE SWITCH

TS125 1979 (N) (E08 E13 E14 E24 E30 E31)

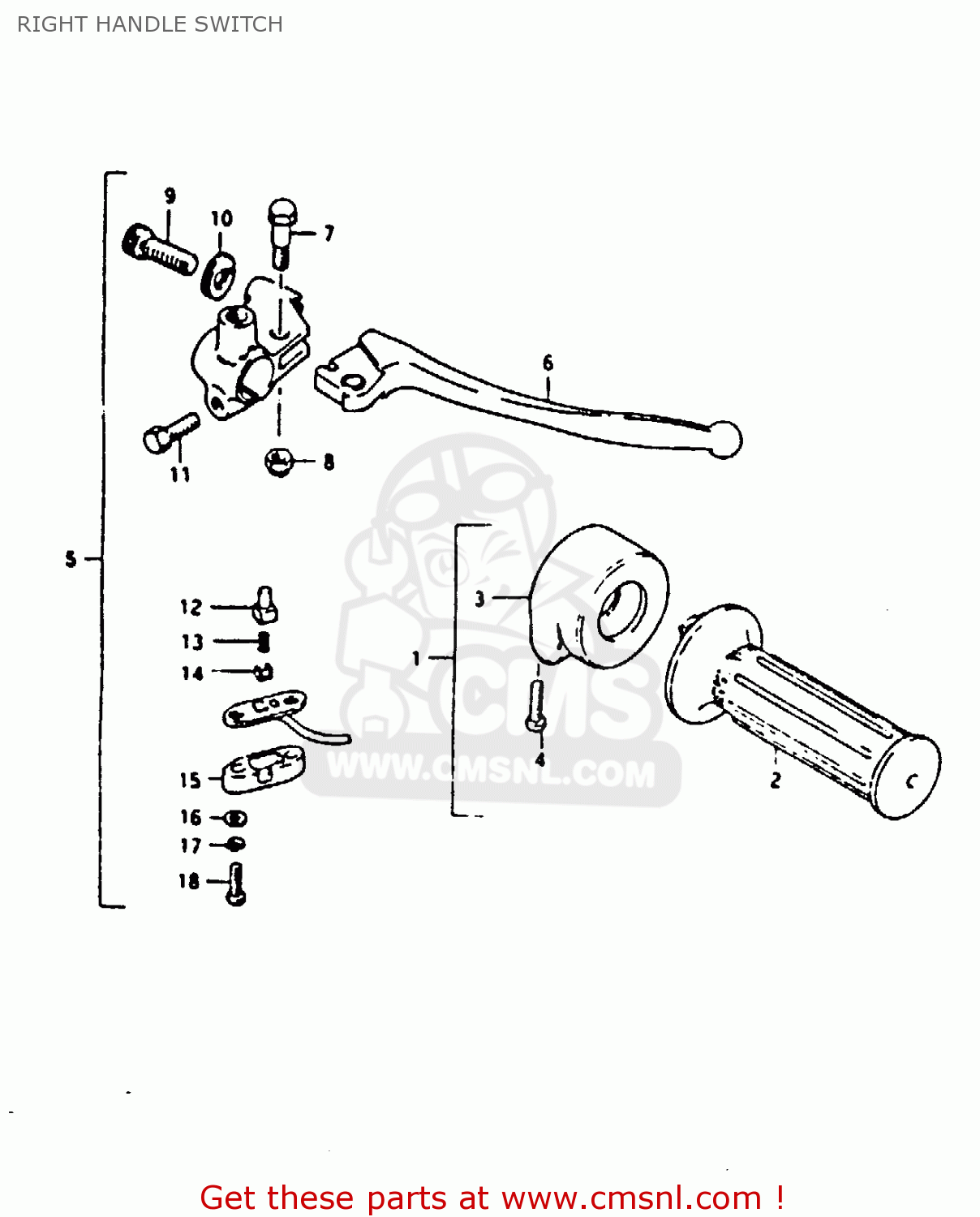

Right handle switch diagram TS125 1979 (N) (E08 E13 E14 E24 E30 E31)

prices are in EUR

ref

part #

description

quantity

5710048000
ref: 1

GRIP ASSY, THROTTLE

€ 57.50

5711030501
ref: 2

GRIP,THROTTLE

€ 22.50

5710030550
ref: 3

CASE ASSY,THROTTLE

€ 35.00

0211205258
ref: 4

SCREW

€ 2.00

5730029301
ref: 5

LEVER ASSEMBLY,BRAKE

€ 41.00

5742018602
ref: 6

LEVER,BRAKE

€ 37.00

5743111010
ref: 7

BOLT,LEVER

€ 6.00

0831921068
ref: 8

NUT 6MM

€ 2.00

5744126010
ref: 9

ADJUSTER,CABLE

€ 4.00

5744211010
ref: 10

NUT,CABLE ADJUSTER

€ 4.00

0110706208
ref: 11

BOLT

€ 2.00

5746118600
ref: 12
TO 57465-18601

HOLDER

€ 4.50

5746218600
ref: 13
TO 57465-18601

SPRING

€ 4.50

5746318600
ref: 14
TO 57465-18601

PLATE

€ 4.50

5748133010
ref: 15

COVER,FR BK TERMINAL BASE

€ 19.50

0832221038
ref: 16

WASHER

€ 2.00

0832121038
ref: 17

LOCK WASHER

€ 1.50

0912503105
ref: 18

SCREW

€ 2.50
