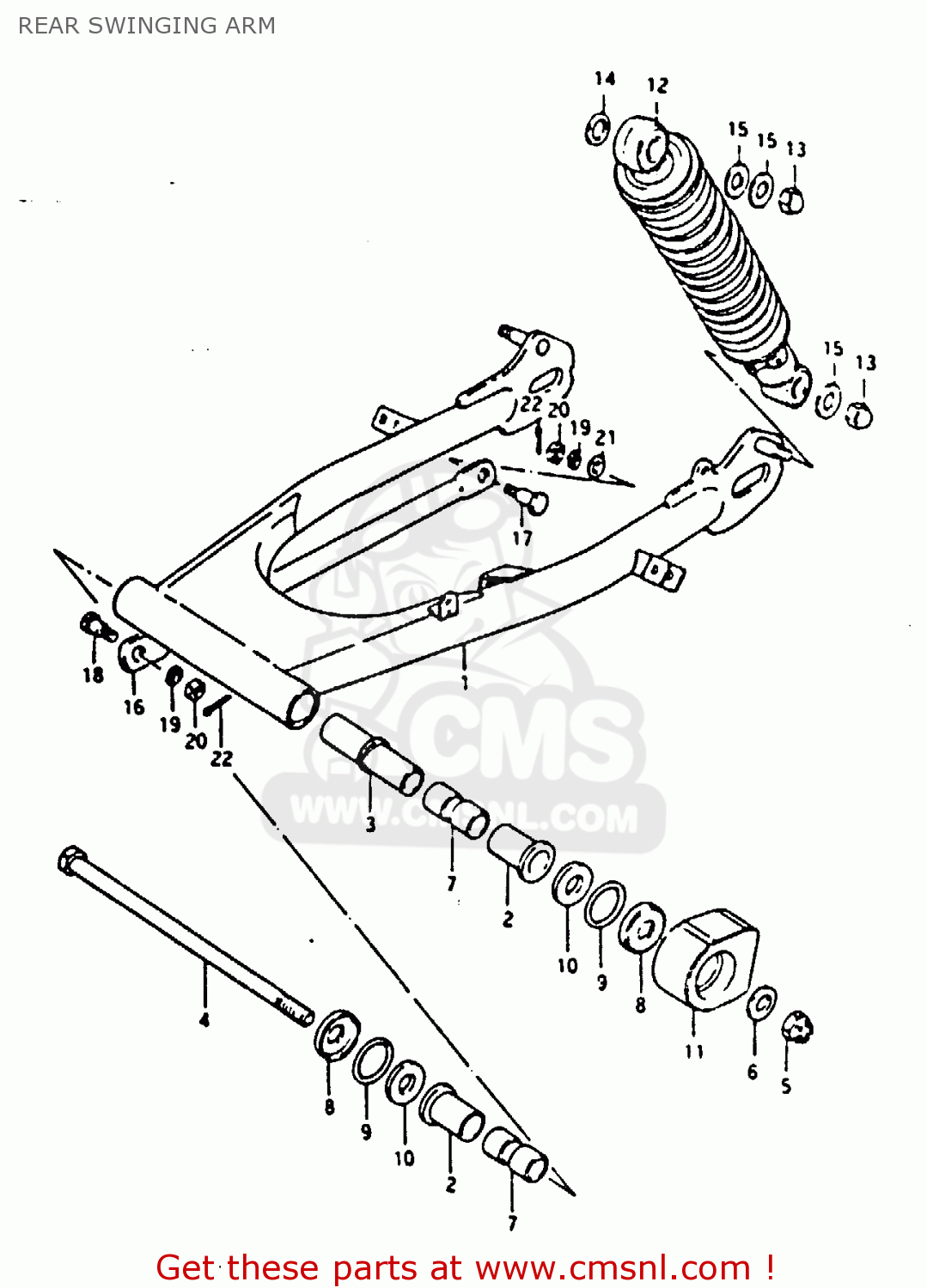

REAR SWINGING ARM

ref

part #

description

quantity

1

6110048811019
ref: 1
BLACK

REAR SWINGING ARM SET

€ 128.00

2

0930718002
ref: 2

BUSH

€ 10.50

3

6128029300
ref: 3

SPACER,RR SWGARM PIVOT CTR

€ 9.00

4

6121129301
ref: 4

SHAFT,REAR SWING ARM

€ 11.50

5

0915912102
ref: 5

NUT

€ 5.00

6

0832211128
ref: 6

WASHER

€ 2.00

7

6125128000
ref: 7

SPACER,RR SWGARM PIVOT

€ 8.50

8

6126209200
ref: 8

COVER,SWGARM BUSH DUST SEAL

€ 2.50

9

0928024001
ref: 9

O RING(D:2,ID:24.5)

€ 2.00

10

0916012005
ref: 10

WASHER(12.5X24X2.3)

€ 3.00

11

6127328001
ref: 11

BUFFER,CHAIN TOUCH DEFENSE

€ 11.00

12-1

6210048020
ref: 12-1

SHOCK ABSORBER ASSY

€ 0.00

12-2

ref: 12-2

13

0831311108
ref: 13

NUT, LOWER LH

€ 2.50

14

0832211128
ref: 14

WASHER

€ 2.00

15

0916010001
ref: 15

WASHER

€ 2.00

16

6431146000019
ref: 16
BLACK

LINK,REAR TORQUE

€ 8.00

17

0911108015
ref: 17

BOLT(8X22)

€ 3.00

18

0911108013
ref: 18

BOLT(8X26.5)

€ 3.00

19

0832121088
ref: 19

LOCK WASHER

€ 2.00

20

0914008008
ref: 20

NUT

€ 1.50

21

0832211088
ref: 21

WASHER

€ 2.00

22

0411120208
ref: 22

PIN 20X20

€ 1.50
