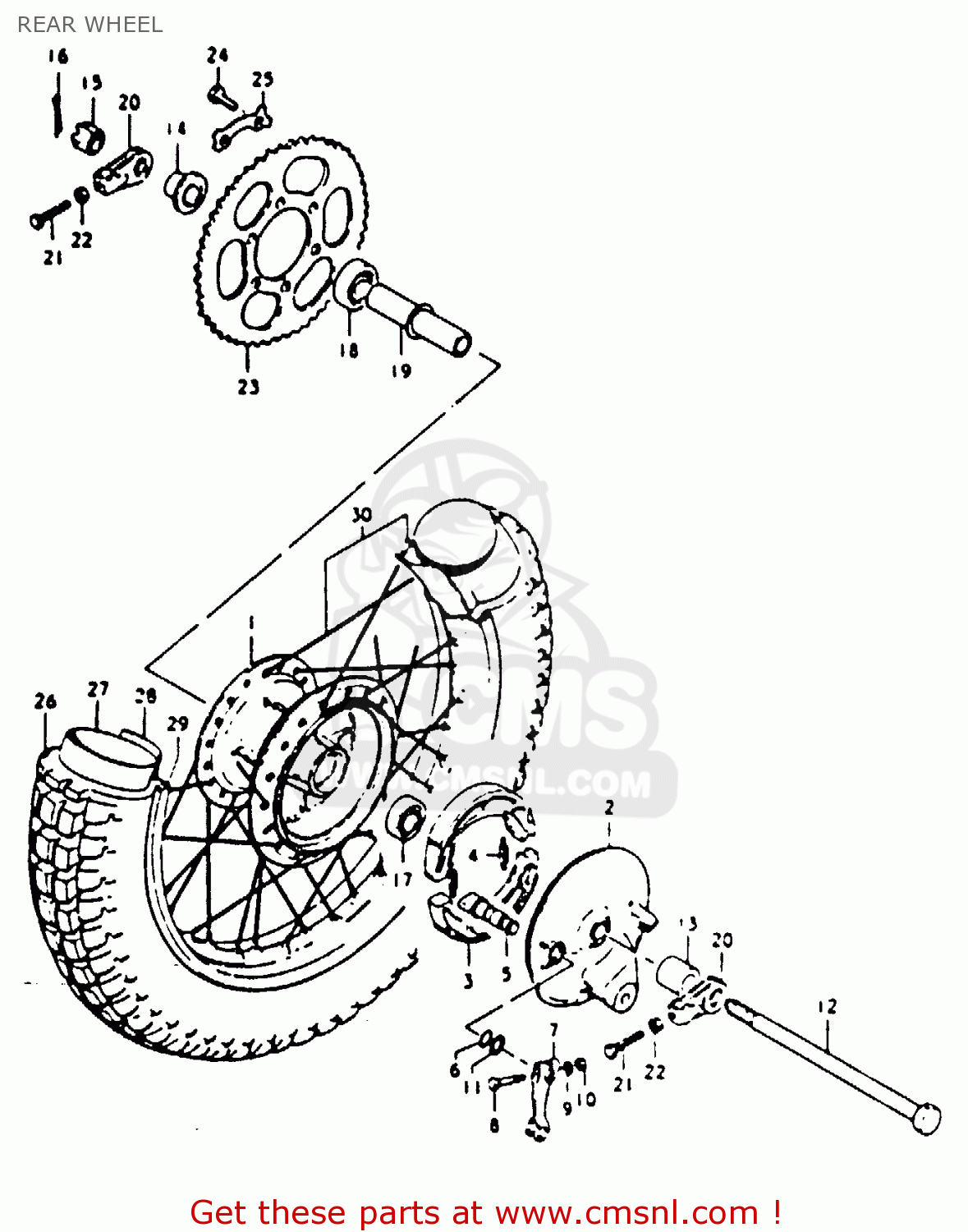

REAR WHEEL

ref

part #

description

quantity

1

6411038001
ref: 1

HUB,REAR WHEEL

€ 357.00

2

6421048000
ref: 2

PANEL,RR BRAKE ANCHOR

€ 83.50

3

5441007002
ref: 3

SHOE,BRAKE

€ 35.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444129301
ref: 5
TO 54441-29302

CAM,FRONT BRAKE

€ 13.00

6

0928014003
ref: 6

O-RING (D:2.4 ID:13.8)

€ 3.50

7

6445148000
ref: 7

LEVER,RR BRAKE CAM

€ 32.50

8

0910006078
ref: 8

BOLT(6X33)

€ 2.50

9

0832221068
ref: 9

WASHER

€ 2.00

10

0831011068
ref: 10

NUT

€ 2.50

11

0916014001
ref: 11

WASHER (14.5X22X1.6)

€ 2.50

12

6471148000
ref: 12

AXLE,REAR

€ 35.50

13

0918015038
ref: 13

SPACER(15.2X22X26)

€ 7.00

14

6475048000
ref: 14

SPACER,RR AXLE,L

€ 8.00

15

0914114001
ref: 15

NUT

€ 4.50

16

0411130308
ref: 16

COTTER PIN

€ 1.50

17

0814362027
ref: 17

BEARING

€ 12.50

18

0812363027
ref: 18

BEARING

€ 19.00

19

6473028001
ref: 19

SPACER,RR WHEEL HUB BEARING

€ 9.00

20

6141028004A
ref: 20

ADJUSTER,CHAIN

€ 8.00

21

0910008146
ref: 21

BOLT(8X40)

€ 2.50

22

0831012088
ref: 22

NUT

€ 2.00

23

6451148000
ref: 23

SPROCKET,REAR

€ 48.00

24

0910008094
ref: 24

BOLT(8X30)

€ 2.50

25

0916908013
ref: 25

WASHER

€ 2.50

26-1

6510028610
ref: 26-1
IRC

TIRE

€ 0.00

26-2

6510028310
ref: 26-2
IRC, E14

TIRE

€ 0.00

27

6520018010
ref: 27

TUBE ASSEMBLY,WHEEL,INNER

€ 35.00

28

5526111010
ref: 28

PROTECTOR,INNER TUBE

€ 3.50

29-1

6531129022
ref: 29-1

RIM,REAR WHEEL

€ 105.50

29-2

6531148500
ref: 29-2
E14

RIM,WHEEL(1.85X18)

€ 133.00

30

6532028021
ref: 30

SPOKE SET

€ 31.50

all assemblies
