REAR BRAKE

TS125 1979 (N) (E08 E13 E14 E24 E30 E31)

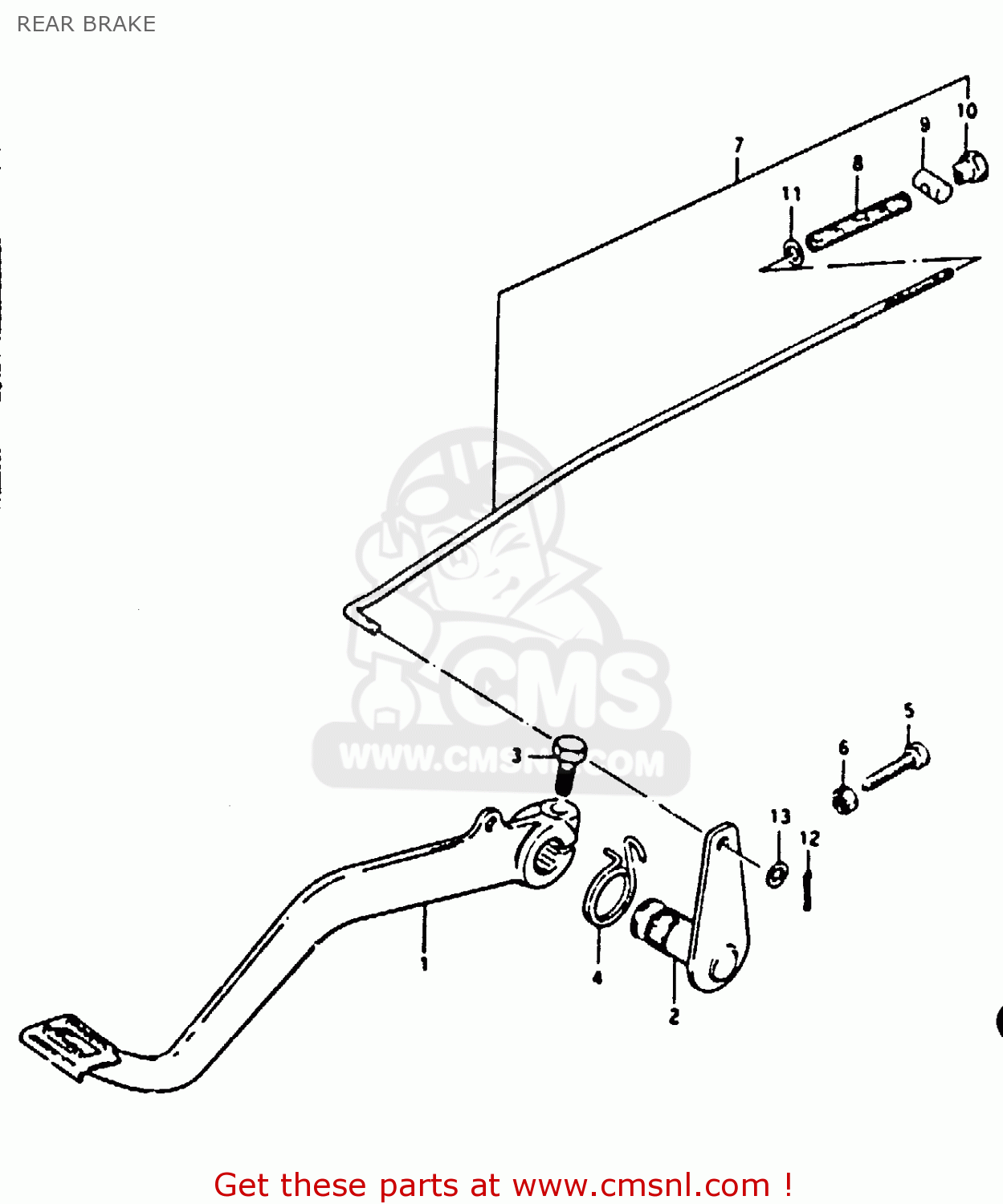

Rear brake diagram TS125 1979 (N) (E08 E13 E14 E24 E30 E31)

REAR BRAKE TS125 1979 (N) (E08 E13 E14 E24 E30 E31)

REAR BRAKE TS125 1979 (N) (E08 E13 E14 E24 E30 E31)

prices are in EUR

ref

part #

description

quantity

1

4311029301
ref: 1

PEDAL,BRAKE

€ 32.00

2

4312029300
ref: 2

ARM,BRAKE PEDAL ROD

€ 20.00

3

0110706208
ref: 3

BOLT

€ 2.00

4

0944825001
ref: 4

SPRING

€ 20.50

5

0910006009
ref: 5

BOLT(6X23)

€ 1.50

6

0831011068
ref: 6

NUT

€ 2.50

7

4330048000
ref: 7

ROD ASSEMBLY,REAR BRAKE

€ 12.50

8

0944009004
ref: 8

SPRING

€ 2.00

9

0920911002
ref: 9

PIN(11X18)

€ 2.00

10

0915006001
ref: 10

NUT

€ 3.50

11

0832221058
ref: 11

WASHER

€ 2.50

12

0411120208
ref: 12

PIN 20X20

€ 1.50

13

0832221068
ref: 13

WASHER

€ 2.00
