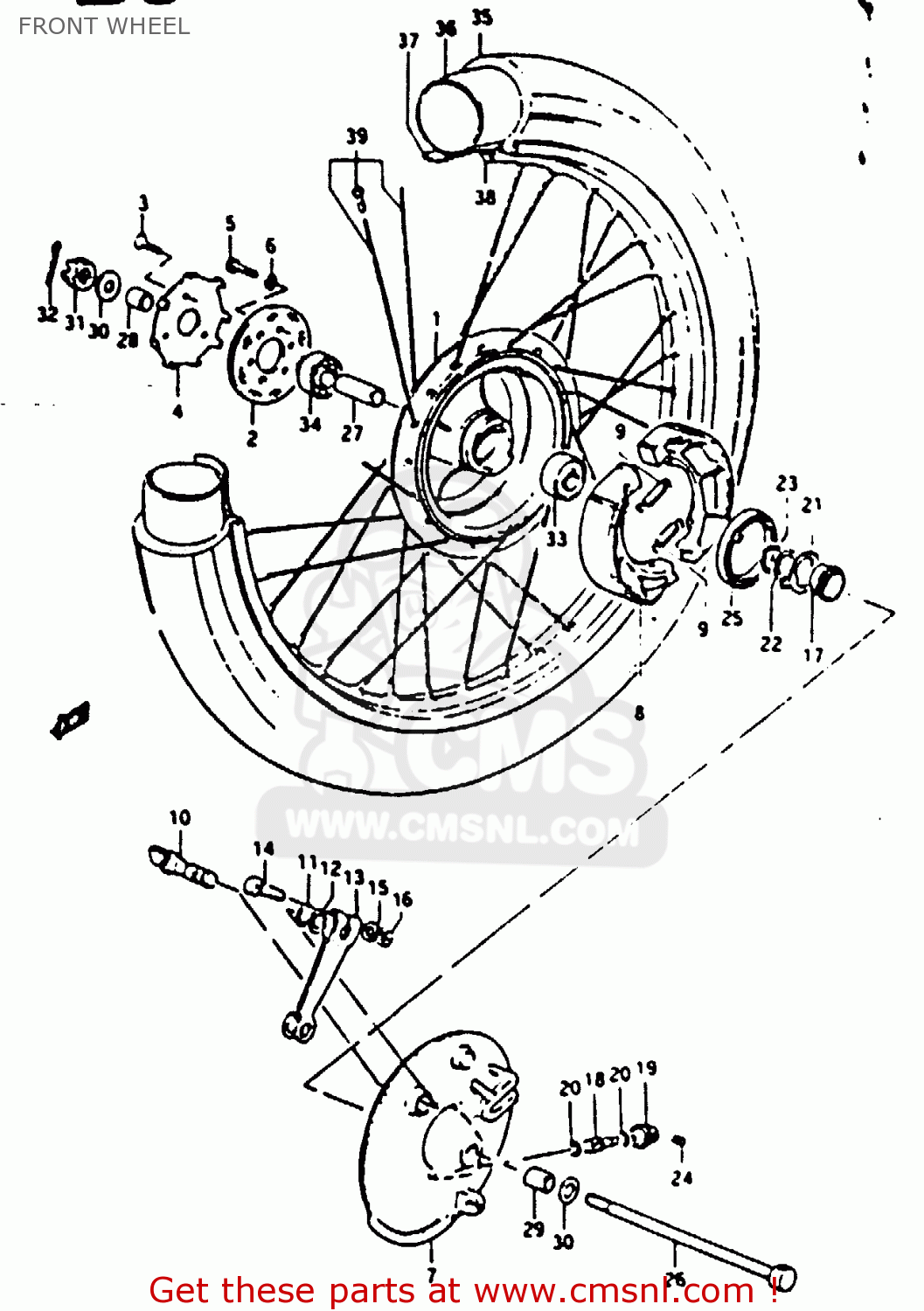

FRONT WHEEL

ref

part #

description

quantity

1

5411029300
ref: 1

HUB,FR WHEEL

€ 156.50

2

5411230500
ref: 2

FLANGE,FR HUB,R

€ 17.00

3

0212206168
ref: 3

SCREW

€ 2.00

4

5415130500
ref: 4

RETAINER,FR HUB BEARING,R

€ 7.00

5

0110706168
ref: 5

BOLT, UPPER

€ 3.00

6

0832121068
ref: 6

LOCK WASHER

€ 2.50

7

5421029300
ref: 7

PANEL,FRONT HUB

€ 0.00

8

5441007002
ref: 8

SHOE,BRAKE

€ 35.00

9

0944307001
ref: 9

SPRING(L:34)

€ 2.50

10

5444129301
ref: 10
TO-54441-29302

CAM,FRONT BRAKE

€ 13.00

11

0928014003
ref: 11

O-RING (D:2.4 ID:13.8)

€ 3.50

12

0916014001
ref: 12

WASHER (14.5X22X1.6)

€ 2.50

13

5445129300
ref: 13

LEVER,FR BRAKE CAM

€ 11.50

14

0910006078
ref: 14

BOLT(6X33)

€ 2.50

15

0832221068
ref: 15

WASHER

€ 2.00

16

0831011068
ref: 16

NUT

€ 2.50

17

5461128401
ref: 17

GEAR,SPEEDOMETER

€ 26.00

18

5462128400
ref: 18

PINION,SPEEDOMETER

€ 15.50

19

5463201001
ref: 19

BUSH,METER GEAR OUTER

€ 9.00

20

0916005001
ref: 20

WASHER (5.1X9X0.4)

€ 2.00

21

5466129300
ref: 21

DRIVER,SPEEDOMETER GEAR

€ 4.00

22

0916018002
ref: 22

WASHER(18.5X24X1)

€ 2.00

23

0833111189
ref: 23

CIRCLIP

€ 2.00

24

0913403101
ref: 24

SCREW

€ 1.50

25

0928543001
ref: 25

OIL SEAL (43X58X7)

€ 10.00

26

6471143000
ref: 26

AXLE,REAR

€ 28.50

27

0918012041
ref: 27

SPACER (12.6X19X52)

€ 4.50

28

0918012076
ref: 28

SPACER (12.2X19X18.5)

€ 5.00

29

0918012063
ref: 29

SPACER(12X20X34.5)

€ 4.50

30

0832221128
ref: 30

WASHER

€ 2.00

31

0831431128
ref: 31

NUT 12MM

€ 2.00

32

0411130308
ref: 32

COTTER PIN

€ 1.50

33

0814362017
ref: 33

BEARING

€ 11.50

34

0812362017
ref: 34

BEARING, RH

€ 15.00

35

5510028600
ref: 35
IRC

TIRE,FRONT

€ 0.00

36

5520016510
ref: 36

TUBE

€ 32.50

37

5526116510
ref: 37

PROTECTOR,WHEEL,INNER

€ 5.00

38

5531148020
ref: 38

RIM,FR WHEEL(1.60X21)

€ 136.00

39

5530029830
ref: 39
TO 55320-29300

SPOKE SET,FRONT

€ 37.00

all assemblies
