CLUTCH
TS125R 1994 (R) (E02 E04 E18 E21)

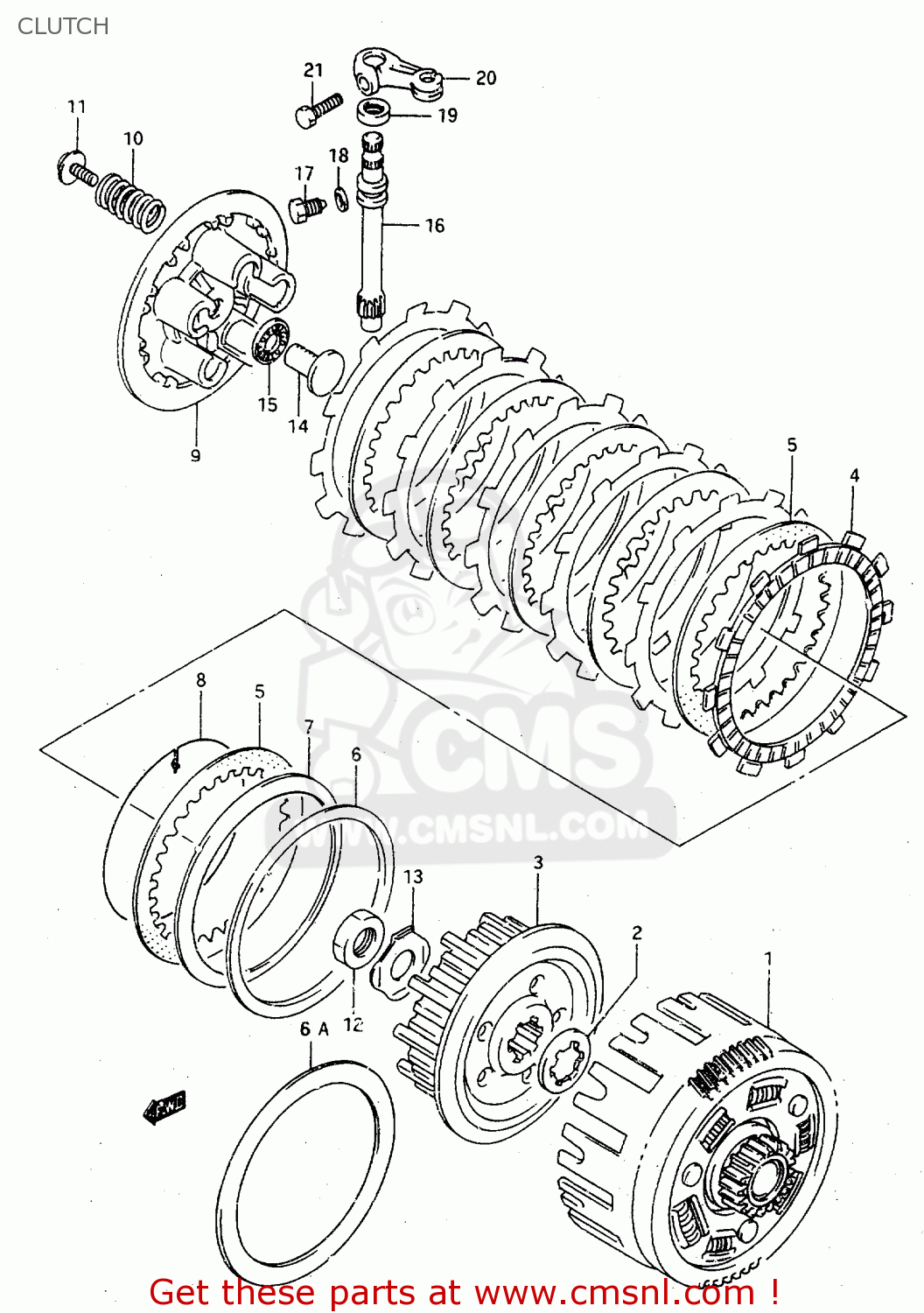

Clutch diagram TS125R 1994 (R) (E02 E04 E18 E21)
CLUTCH TS125R 1994 (R) (E02 E04 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120008D00
ref: 1-1
MODEL K/L/M
GEAR ASSY, PRIMARY DRIVEN (NT:67/17)
€ 211.50
1-2
2120008D01
ref: 1-2
MODEL N/P/R
GEAR ASSY,PRI DRIVEN
€ 211.50
2-1
0916720027
ref: 2-1
MODEL K/L/M/N/P
** SUPERSEEDED
€ 5.50
2-2
0916720029
ref: 2-2
MODEL R
WASHER
€ 5.50
3
2141003D00
ref: 3
HUB,CLUTCH SLEEVE
€ 44.00
4
2144113A01
ref: 4
PLATE,CLUTCH DRIVE(T:3.0) (NAS)
€ 8.50
5
2145136200
ref: 5
PLATE,CLUTCH DRIVEN(T:2.0) (NAS)
€ 5.00
6
2147136200
ref: 6
MODEL K
SEAT,WAVE WASHER
€ 43.50
6A
2147108D00
ref: 6A
MODEL L/M/N/P/R
SEAT,WAVE WASHER
€ 10.00
7
0916498001
ref: 7
MODEL K
WASHER
€ 8.50
8
2148139301
ref: 8
MODEL K
RING,STOPPER
€ 5.00
9
2146201B40
ref: 9
DISC,CLUTCH PRESSURE
€ 47.50
10
0944015024
ref: 10
SPRING
€ 5.50
11
0911605003
ref: 11
BOLT 5X16
€ 2.50
12
0914016027
ref: 12
NUT
€ 5.50
13
0916916006
ref: 13
WASHER
€ 19.50
14-1
2316502B00
ref: 14-1
MODEL K/L/M/N/P
RACK,CLUTCH RELEASE
€ 17.00
14-2
2316544B01
ref: 14-2
MODEL R
RACK,CLUTCH RELEASE
€ 17.00
15
0926310002
ref: 15
BEARING(10X22X2.8)
€ 8.50
16
2326120A01
ref: 16
PINION,CLUTCH RELEASE
€ 35.00
17
0913506009
ref: 17
BOLT(6X12)
€ 2.00
18-1
0832221067
ref: 18-1
MODEL K/L/M/N/P
WASHER
€ 2.00
18-2
0832201063
ref: 18-2
MODEL R
WASHER
€ 2.00
19
0928510004
ref: 19
SEAL,OIL(10X17X5)
€ 3.50
20
2327122A00
ref: 20
ARM,CLUTCH RELEASE
€ 47.00
21-1
0110706166
ref: 21-1
MODEL K//L/M/N/P
BOLT
€ 2.00
21-2
0150006163
ref: 21-2
MODEL R
BOLT
€ 2.00
