RIGHT HANDLE SWITCH
TS125R 1994 (R) (E02 E04 E18 E21)

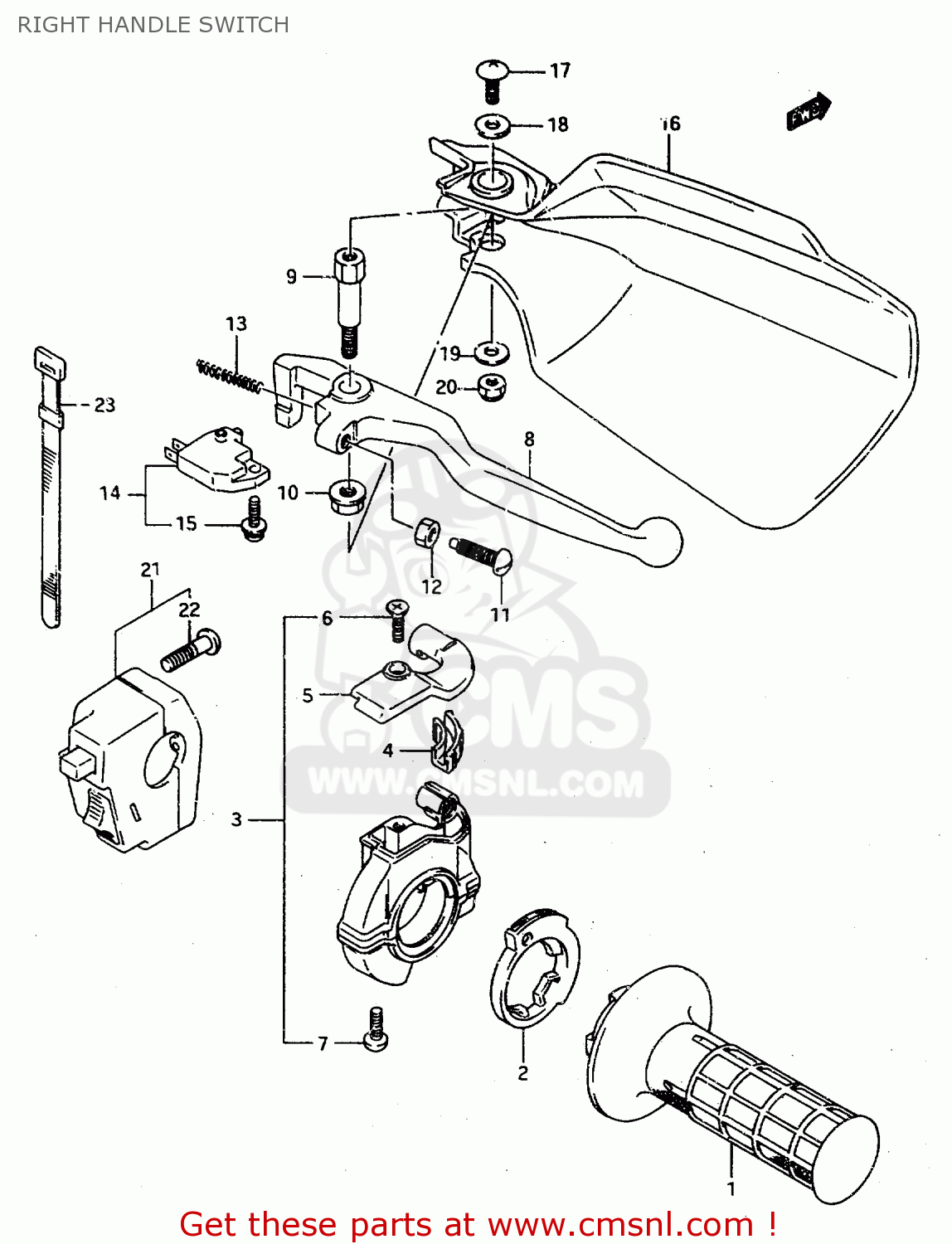

Right handle switch diagram TS125R 1994 (R) (E02 E04 E18 E21)
RIGHT HANDLE SWITCH TS125R 1994 (R) (E02 E04 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1
5711027C00
ref: 1
GRIP,THROTTLE
€ 25.00
2
5711420410
ref: 2
ROTOR,THROTTLE GRIP
€ 6.00
3
5710003D00
ref: 3
CASE ASSY,THROTTLE
€ 30.00
4
5712220410
ref: 4
GUIDE PIECE,THROTTLE
€ 4.50
5
5712920411
ref: 5
COVER,THROTTLE CASE
€ 8.50
6
0213204105
ref: 6
SCREW 4X10
€ 2.50
7
0211205167
ref: 7
SCREW
€ 2.50
8
5742103D00
ref: 8
LEVER,BRAKE
€ 14.50
9
5743105D00
ref: 9
BOLT,BRAKE LEVER PIVOT
€ 9.00
10
0831921068
ref: 10
NUT 6MM
€ 2.00
11
5743114511
ref: 11
BOLT,ADJUST
€ 3.50
12
0831012055
ref: 12
NUT ,5MM
€ 2.50
13
5731814502
ref: 13
SPRING,RETURN
€ 3.00
14
5746017C00
ref: 14
SWITCH ASSEMBLY,STOP
€ 32.50
15
5746517C00
ref: 15
SCREW
€ 1.50
16-1
5734105D0014C
ref: 16-1
MODEL K/L FOR 14C
COVER, KNUCKLE RH (RED)
€ 30.00
16-2
5734105D0025Y
ref: 16-2
MODEL K/L/M/N/ FOR 2
COVER,KNUCKLE,R
€ 24.50
16-3
5734105D0030H
ref: 16-3
MODEL K/M FOR 30HMOD
COVER,KNUCKLE,RIGHT
€ 18.00
16-4
5734105D000NF
ref: 16-4
MODEL L/M/N FOR 0NF
COVER,KNUCKLE,R
€ 28.00
17-1
0912505042
ref: 17-1
MODEL K/L/M/N/P
SCREW(5X10)
€ 2.50
17-2
0214205107
ref: 17-2
MODEL R
SCREW
€ 2.50
18
0916005017
ref: 18
WASHER (5.5X16X1.2)
€ 2.50
19
0916006042
ref: 19
WASHER (6.5X17X1.6)
€ 2.00
20
0831921068
ref: 20
NUT 6MM
€ 2.00
21-1
3720003D11
ref: 21-1
-37200-14A01
SWITCH ASSY, HANDLE, RH
€ 101.50
21-2
3720014A01
ref: 21-2
SWITCH ASSY,HANDLE,R
€ 101.50
21-3
3720003D01
ref: 21-3
E24
SWITCH ASSY, HANDLE, RH
€ 0.00
22
0912505066
ref: 22
SCREW(5X25)
€ 2.00
23
0940712402
ref: 23
CLAMP(L:120)
€ 3.00
