CRANKCASE
TS125R 1994 (R) (E02 E04 E18 E21)

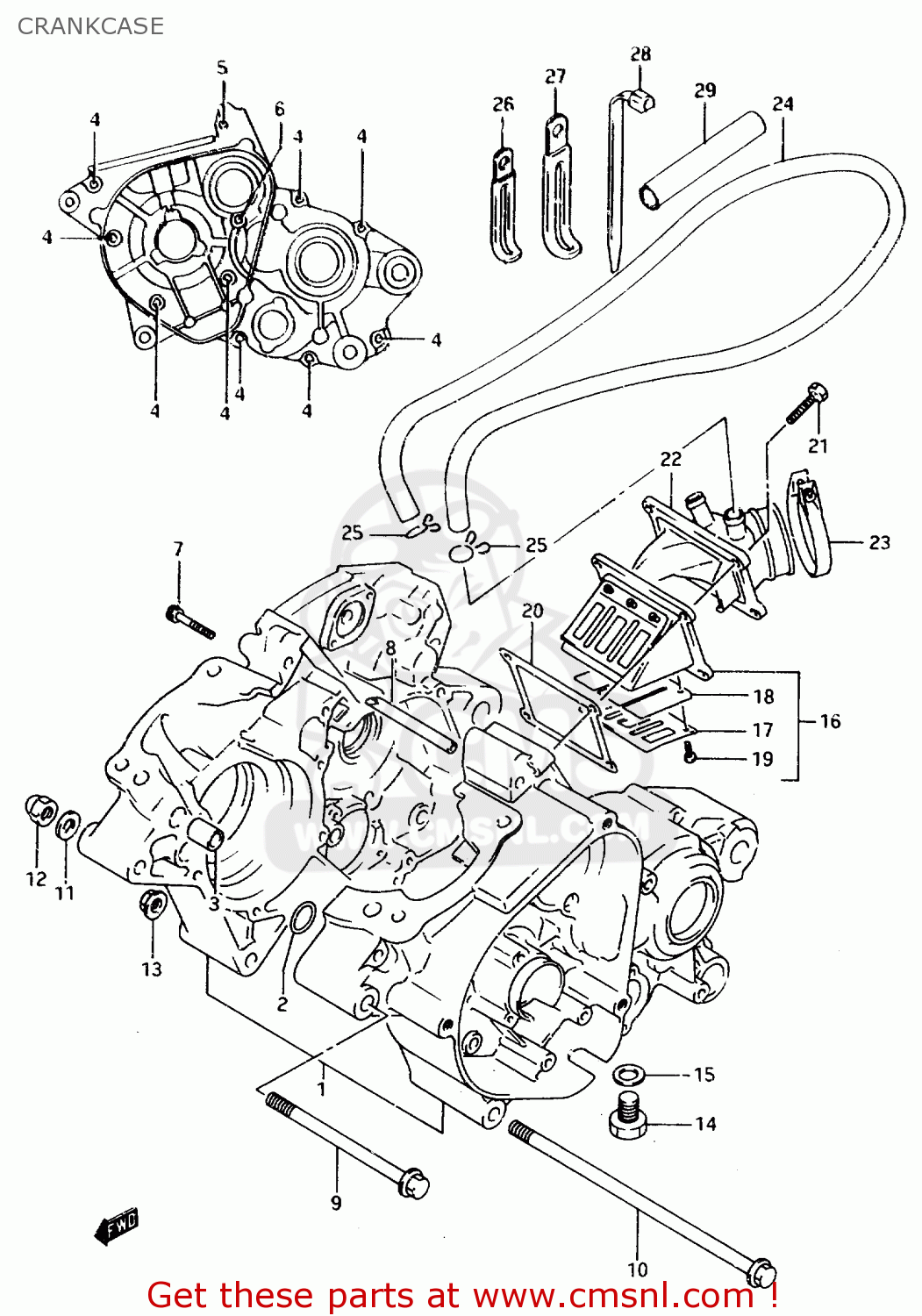

Crankcase diagram TS125R 1994 (R) (E02 E04 E18 E21)
CRANKCASE TS125R 1994 (R) (E02 E04 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1
1130003D00
ref: 1
CRANKCASE ASSY
€ 534.50
2
0928016010
ref: 2
O RING(D:1.9,ID:15.8)
€ 1.50
3-1
0920613004
ref: 3-1
MODEL K/L/M/N/P
PIN(10.4X13X22)
€ 3.00
3-2
0920613001
ref: 3-2
MODEL R
PIN
€ 2.50
4-1
0154706507
ref: 4-1
MODEL K/L/M/N/P
BOLT
€ 2.50
4-2
0154706503
ref: 4-2
MODEL R
BOLT
€ 3.50
5-1
0154706657
ref: 5-1
MODEL K/L/M/N/P
BOLT
€ 2.00
5-2
0154706653
ref: 5-2
MODEL R
BOLT
€ 2.00
6
1139503D00
ref: 6
SCREW,CRANKCASE
€ 0.00
7-1
0711006357
ref: 7-1
MODEL K/L/M/N/P
BOLT
€ 3.50
7-2
0713006353
ref: 7-2
MODEL R
BOLT
€ 3.50
8
1139103D00
ref: 8
PIPE,BREATHER
€ 3.00
9
0910308098
ref: 9
BOLT(8X115)
€ 3.00
10
0910308067
ref: 10
BOLT(8X205)
€ 7.00
11
0916008050
ref: 11
WASHER (8.5X16X2.6)
€ 2.00
12
0915908101
ref: 12
NUT
€ 7.50
13
0831931087
ref: 13
NUT
€ 2.50
14
0924714025
ref: 14
09247-14031
PLUG
€ 3.50
15
0916814002
ref: 15
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
16
1315003D00
ref: 16
VALVE ASSY,REED
€ 81.50
17
1315203D00
ref: 17
STOPPER,REED VALVE
€ 5.50
18
1315301B20
ref: 18
VALVE,REED
€ 8.00
19
1315414500
ref: 19
SCREW,REED VALVE
€ 1.50
20-1
1315603D00
ref: 20-1
MODEL K/L/M/N
GASKET, REED VALVE (NA)
€ 6.00
20-2
1315603D10
ref: 20-2
MODEL P/R
GASKET,REED VALVE (NAS)
€ 6.00
21-1
0110706205
ref: 21-1
MODEL K/L/M/N/P
BOLT
€ 2.00
21-2
0150006203
ref: 21-2
MODEL R
BOLT
€ 2.00
22
1311003D01
ref: 22
13110-03D00
PIPE,INTAKE
€ 63.00
23
0940246208
ref: 23
CLAMP
€ 4.50
24
1311503D00
ref: 24
HOSE, INTERFERENCE
€ 21.00
25
0940113409
ref: 25
CLIP
€ 2.50
26
0940406419
ref: 26
CLAMP
€ 2.50
27
0940408405
ref: 27
CLAMP
€ 3.50
28
0940718402
ref: 28
CLAMP(L:165)
€ 2.50
29-1
4431138B02
ref: 29-1
MODEL N/P E18
TUBE, INTERFERENCE HOSE
€ 17.50
29-2
4431117E00
ref: 29-2
MODEL R E18
TUBE,FUEL HOSE
€ 17.50
