OIL TANK
TS125R 1994 (R) (E02 E04 E18 E21)

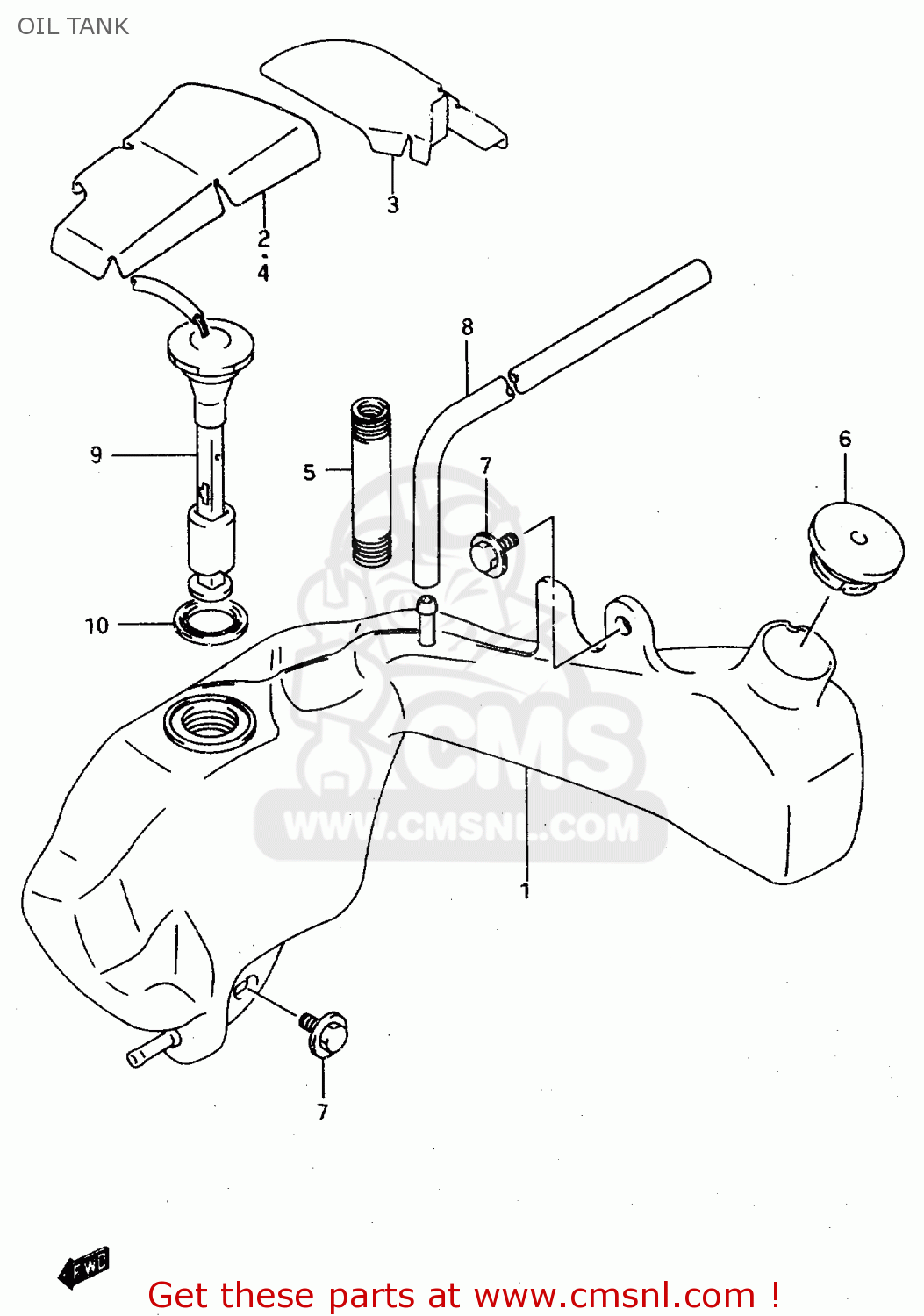

Oil tank diagram TS125R 1994 (R) (E02 E04 E18 E21)
OIL TANK TS125R 1994 (R) (E02 E04 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1-1
4461103D01
ref: 1-1
MODEL K
TANK, OIL
€ 52.00
1-2
4461103D02
ref: 1-2
MODEL L/M/N/P/R
TANK,OIL
€ 52.00
2-1
4469303D00
ref: 2-1
MODEL K/L
SHIELD, OIL TANK
€ 17.50
2-2
4469303D01
ref: 2-2
MODEL M/N/P
SHIELD, OIL TANK
€ 17.50
2-3
4469308D00
ref: 2-3
MODEL R
SHIELD,OIL TANK
€ 17.50
2-4
4469403D00
ref: 2-4
E18
SHIELD, OIL TANK
€ 12.00
2-5
4469308D00
ref: 2-5
E18
SHIELD,OIL TANK
€ 17.50
5
4442338B00
ref: 5
E18
SHIELD,FUEL HOSE HEATER
€ 13.50
6
4465120A00
ref: 6
CAP,OIL TANK
€ 4.00
7
0911606085
ref: 7
BOLT M6X16
€ 2.50
8
0935270113600
ref: 8
HOSE(7X11X600)
€ 17.50
9
3788003D00
ref: 9
SWITCH ASSY,OIL LEVEL
€ 38.50
10
4464331000
ref: 10
GASKET (NAS)
€ 2.50
