REAR SWINGING ARM (MODEL R)

TS125R 1994 (R) (E02 E04 E18 E21)

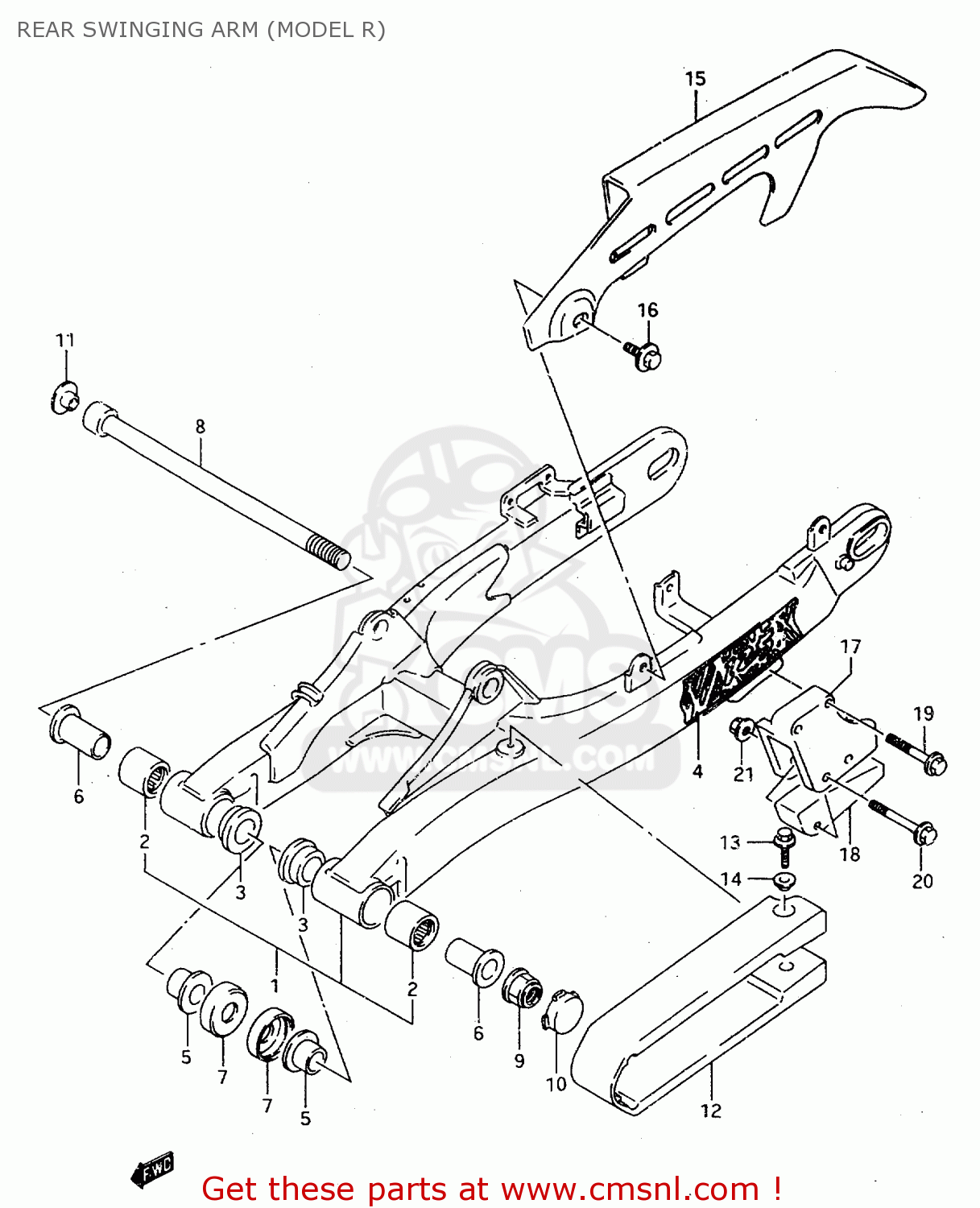

Rear swinging arm (model r) diagram TS125R 1994 (R) (E02 E04 E18 E21)

REAR SWINGING ARM (MODEL R) TS125R 1994 (R) (E02 E04 E18 E21)
REAR SWINGING ARM (MODEL R) TS125R 1994 (R) (E02 E04 E18 E21)
REAR SWINGING ARM (MODEL R) TS125R 1994 (R) (E02 E04 E18 E21)
prices are in EUR
ref
part #
description
quantity
1
6100003D30
ref: 1
SWINGING ARM ASSY, REAR
6100003D30
€ 454.00
2
0926320073
ref: 2
BEARING(20X27X30)
0926320073
€ 24.50
3
6126114101
ref: 3
BUSH,RR SWINGINGARM PIVOT
6126114101
€ 10.00
4
6838103D11C2N
ref: 4
EMBLEM, 125
€ 0.00
5
6125214100
ref: 5
SPACER,RR SWGARM PIVOT INNER
6125214100
€ 12.50
6
6125114100
ref: 6
SPACER,RR SWGARM PIVOT
6125114100
€ 16.00
7
6126240400
ref: 7
COVER,RR SWGARM DUST SEAL
6126240400
€ 4.00
8
6121103D00
ref: 8
SHAFT, PIVOT
€ 27.00
9
0831931148
ref: 9
NUT
0831931148
€ 9.00
10
6122213A00019
ref: 10
CAP,PIVOT
6122213A00019
€ 4.50
11
6122313A00019
ref: 11
CAP,SHAFT
€ 4.50
12
6127344A00
ref: 12
BUFFER,CHAIN TOUCH DEFENSE
6127344A00
€ 24.00
13
0155005163
ref: 13
BOLT
€ 2.00
14
0916905012
ref: 14
WASHER
0916905012
€ 3.00
15
6131136A00
ref: 15
CASE,CHAIN
6131136A00
€ 30.50
16
0911606060
ref: 16
BOLT 6X8
€ 2.50
17
6134202B02
ref: 17
GUIDE,CHAIN
6134202B02
€ 15.00
18
6134802B20
ref: 18
DEFENSE,CHAIN GUIDE
6134802B20
€ 11.00
19
0155006303
ref: 19
BOLT
0155006303
€ 2.50
20
0155006453
ref: 20
BOLT (6X45)
€ 2.50
21
0831931067
ref: 21
NUT
0831931067
€ 2.50
20
0151706458
ref: 20
BOLT,UNDER
0151706458
€ 2.50
21
0831931067
ref: 21
NUT
0831931067
€ 2.50
22
6825103D0017U
ref: 22
MODEL N
EMBLEM, SUZUKI
€ 0.00
