RADIATOR (MODEL P/R)

TS125R 1994 (R) (E02 E04 E18 E21)

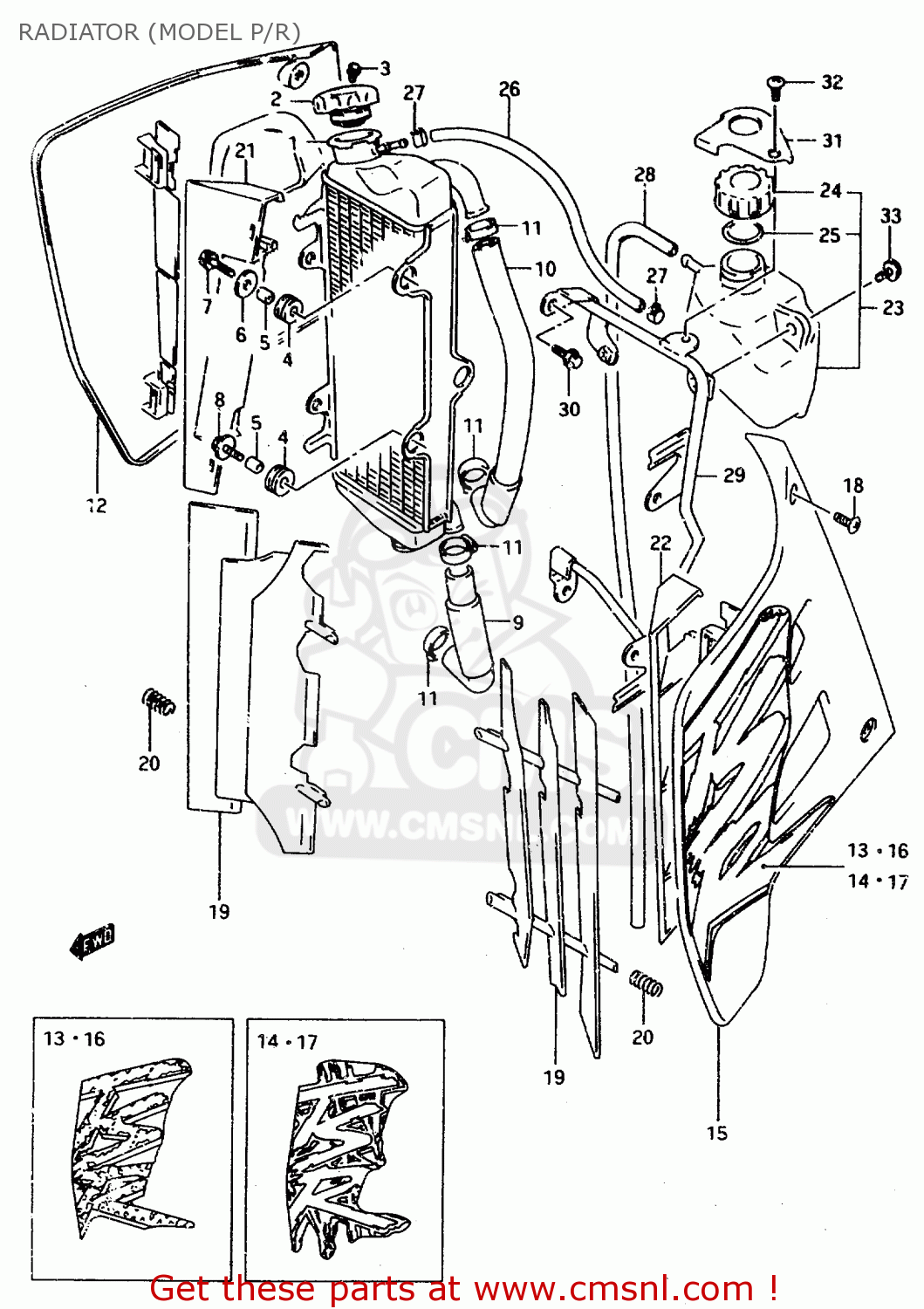

Radiator (model p/r) diagram TS125R 1994 (R) (E02 E04 E18 E21)

RADIATOR (MODEL P/R) TS125R 1994 (R) (E02 E04 E18 E21)
RADIATOR (MODEL P/R) TS125R 1994 (R) (E02 E04 E18 E21)
RADIATOR (MODEL P/R) TS125R 1994 (R) (E02 E04 E18 E21)
prices are in EUR
ref
part #
description
quantity
1
1771003D12
ref: 1
RADIATOR,WATER
€ 393.00
2
1773003D00
ref: 2
CAP, RADIATOR (0.9)
€ 71.50
3
1773303D00
ref: 3
SCREW,RADIATOR CAP
€ 2.00
4
1778719A00
ref: 4
CUSHION,RADIATOR LWR
1778719A00
€ 3.50
5
0918007004
ref: 5
SPACER(6.5X10.5X12)
0918007004
€ 2.50
6
0916006113
ref: 6
WASHER
€ 2.00
7-1
0151706254
ref: 7-1
MODEL K/L/M/N/P
BOLT
€ 2.50
7-2
0155006253
ref: 7-2
MODEL R
BOLT
0155006253
€ 2.50
8
0911606149
ref: 8
BOLT(6X20)
€ 2.50
9
1785103D00
ref: 9
HOSE,RADIATOR INLET
1785103D00
€ 22.50
10
1785203D00
ref: 10
HOSE,RADIATOR OUTLET
€ 16.50
11
0940225502
ref: 11
CLAMP
0940225502
€ 8.50
12-1
1776103D0025Y
ref: 12-1
COVER,RADIATOR,R(YELLOW)
€ 34.50
12-2
1776103D00ONF
ref: 12-2
COVER, RADIATOR,RH (BLUE)
€ 0.00
13-1
6866503D20A4H
ref: 13-1
FOR 25Y,MODEL P
TAPE, RADIATOR COVER,RH
€ 75.00
13-2
6866503D20A6L
ref: 13-2
FOR ONF,MODEL P
TAPE, RADIATOR COVER,RH
€ 75.00
14-1
6866503D30C2M
ref: 14-1
FOR 25Y,MODEL R
TAPE, RADIATOR COVER,RH
€ 76.50
14-2
6866503D30C5L
ref: 14-2
FOR ONF,MODEL R
TAPE,RADIATOR COVER,R
€ 73.50
15-1
1776203D0025Y
ref: 15-1
COVER,RADIATOR,L(YELLOW)
1776203D0025Y
€ 30.00
15-2
1776203D00ONF
ref: 15-2
COVER, RADIATOR,LH (BLUE)
€ 0.00
16-1
6867503D20A4H
ref: 16-1
FOR 25Y,MODEL P
TAPE, RADIATOR COVER,LH
€ 73.50
16-2
6867503D20A6L
ref: 16-2
FOR ONF,MODEL P
TAPE, RADIATOR COVER,LH
€ 73.50
17-1
6867503D30C2M
ref: 17-1
FOR 25Y,MODEL R
TAPE,RADIATOR COVER,L
€ 65.00
17-2
6867503D30C5L
ref: 17-2
FOR ONF,MODEL R
TAPE, RADIATOR COVER,LH
€ 0.00
18
0214206107
ref: 18
SCREW
0214206107
€ 2.00
19
1782103D00
ref: 19
LOUVER,RADIATOR
1782103D00
€ 21.00
20
0944611002
ref: 20
SPRING
€ 2.50
21
1782203D00
ref: 21
GUARD,RADIATOR LOUVER,R
€ 16.00
22
1782303D00
ref: 22
GUARD, RADIATOR LOUVER,LH
€ 15.00
23
1791003D01
ref: 23
TANK ASSY,RESERVOIR
1791003D01
€ 39.50
24
1784513700
ref: 24
CAP,RESERVOIR TANK
1784513700
€ 11.50
25
1784413700
ref: 25
GASKET,RESERVOIR TANK CAP (NAS)
1784413700
€ 2.50
26
0935250901300
ref: 26
L:300 280
HOSE 5X9X300
0935250901300
€ 6.50
27
0940108407
ref: 27
CLIP
€ 3.00
28
093525090100A
ref: 28
L:1000 650
HOSE
€ 19.50
29
1792003D00
ref: 29
HOLDER, RESERVE TANK
€ 63.00
30-1
0151706164
ref: 30-1
MODEL P
BOLT
€ 2.50
30-2
0155006163
ref: 30-2
MODEL R
BOLT
0155006163
€ 2.50
31
1793403D00
ref: 31
PLATE,RESERVE TANK CAP
€ 4.50
32-1
0211206104
ref: 32-1
MODEL P
SCREW
€ 1.50
32-2
0211206103
ref: 32-2
MODEL R
SCREW
0211206103
€ 1.50
33
0913606061
ref: 33
SCREW(6X16)
0913606061
€ 3.00
22-4
6867503D00N52
ref: 22-4
MODEL N E34,E53 FOR
TAPE, RADIATOR COVER,LH
€ 0.00
22-5
6867503D00N53
ref: 22-5
MODEL N E34,E53 FOR
TAPE, RADIATOR COVER,LH
€ 72.50
23-1
6867503D10N52
ref: 23-1
MODEL N FOR 25Y
TAPE, RADIATOR COVER,LH
€ 0.00
23-2
6867503D10N53
ref: 23-2
MODEL N FOR ONF
TAPE, RADIATOR COVER,LH
6867503D10N53
€ 72.50
24
0214206108
ref: 24
SCREW
0214206108
€ 2.00
25
1782103D00
ref: 25
LOUVER,RADIATOR
1782103D00
€ 21.00
26
0944611002
ref: 26
SPRING
€ 2.50
27
1782203D00
ref: 27
GUARD,RADIATOR LOUVER,R
€ 16.00
28
1782303D00
ref: 28
GUARD, RADIATOR LOUVER,LH
€ 15.00
29
1791003D01
ref: 29
TANK ASSY,RESERVOIR
1791003D01
€ 39.50
30
1784513700
ref: 30
CAP,RESERVOIR TANK
1784513700
€ 11.50
31
1784413700
ref: 31
GASKET,RESERVOIR TANK CAP (NAS)
1784413700
€ 2.50
32
0935250901300
ref: 32
L:300 280
HOSE 5X9X300
0935250901300
€ 6.50
33
0940108407
ref: 33
CLIP
€ 3.00
34
093525090100A
ref: 34
L:1000 650
HOSE
€ 19.50
35
1792003D00
ref: 35
HOLDER, RESERVE TANK
€ 63.00
36
0151706164
ref: 36
BOLT
€ 2.50
37
1793403D00
ref: 37
PLATE,RESERVE TANK CAP
€ 4.50
38
0211206104
ref: 38
SCREW
€ 1.50
39
0913606061
ref: 39
SCREW(6X16)
0913606061
€ 3.00
40
3485003D00
ref: 40
E24
SWITCH ASSY,WATER TEMP
3485003D00
€ 85.00
