GEAR SHAFTING
TS125R 1994 (R) (E02 E04 E18 E21)

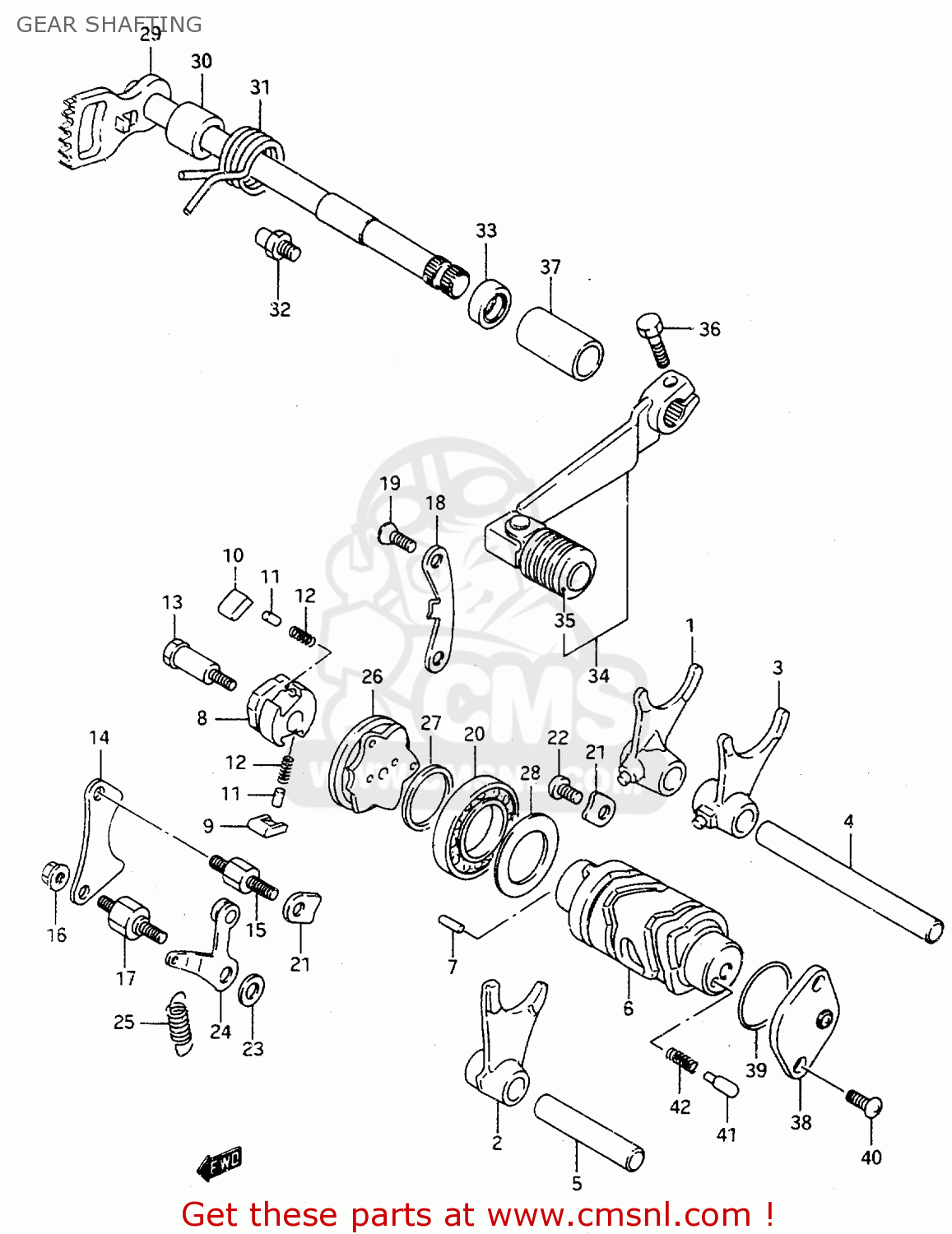

Gear shafting diagram TS125R 1994 (R) (E02 E04 E18 E21)
GEAR SHAFTING TS125R 1994 (R) (E02 E04 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1
2521141301
ref: 1
FORK,GEAR SHIFT NO.1
€ 71.50
2-1
2522141301
ref: 2-1
MODEL K/L/M/N/P
FORK,GEAR SHIFT NO.2
€ 71.50
2-2
2522141X00
ref: 2-2
MODEL R
FORK,GEAR SHIFT NO.2
€ 71.50
3
2523136A00
ref: 3
FORK, NO. 3
€ 54.00
4-1
2541116701
ref: 4-1
MODEL K/L/M/N
SHAFT,GEAR SHIFT FORK(L:109)
€ 11.50
4-2
2541105200
ref: 4-2
MODEL P/R
SHAFT,GEAR SHIFT FORK
€ 11.50
5
2542135402
ref: 5
SHAFT,GEAR SHIFT FORK
€ 19.00
6
2531012B01
ref: 6
CAM
€ 75.00
7
0422104089
ref: 7
PIN
€ 1.50
8
2532231301
ref: 8
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
9
2532334201
ref: 9
PAWL,GEAR SHIFT NO.1
€ 6.00
10
2532434201
ref: 10
PAWL,GEAR SHIFT NO.2
€ 6.00
11
0926105003
ref: 11
PIN(5X8)
€ 1.50
12
0944004003
ref: 12
SPRING
€ 1.50
13
2531238A00
ref: 13
PIN,SHIFT CAM DRIVEN GEAR
€ 4.00
14
2533112B00
ref: 14
LIFTER,GEAR SHIFT POLE
€ 6.00
15
2533238A00
ref: 15
BOSS,SHIFT PAWL LIFTER
€ 3.50
16-1
0915906017
ref: 16-1
MODEL K/L/M/N/P
NUT
€ 2.50
16-2
0831610063
ref: 16-2
MODEL R
NUT
€ 2.50
17
2535538A00
ref: 17
SUPPORT,CAM STOPPER ARM
€ 5.50
18
2534112B00
ref: 18
GUIDE,GEAR SHIFT CAM
€ 7.00
19
0212206128
ref: 19
SCREW
€ 3.00
20-1
0926225002
ref: 20-1
MODEL K/L/M/N/P
BEARING
€ 24.00
20-2
0926225006
ref: 20-2
MODEL R
BEARING(25X47X8)
€ 24.00
21
2474103D00
ref: 21
RETAINER,GEAR SHIFT CAM BRG
€ 4.50
22
0211206128
ref: 22
SCREW 6X12
€ 2.00
23
0821106161
ref: 23
WASHER
€ 2.00
24
2535012B00
ref: 24
STOPPER, CAM
€ 9.00
25
0944309038
ref: 25
SPRING
€ 3.00
26
2538012B00
ref: 26
PLATE,GEAR SHIFT CAM
€ 10.00
27
0916025059
ref: 27
WASHER(25X32X3)
€ 5.00
28
2538512B00
ref: 28
SEAL,SHIFT CAM OIL
€ 7.50
29-1
2551003D00
ref: 29-1
MODEL K/L
SHAFT, GEAR SHIFTING
€ 116.50
29-2
2551008D00
ref: 29-2
MODEL M/N/P/R
SHAFT,GEAR SHIFT
€ 116.50
30
0918012083
ref: 30
SPACER(12X20X15.3)
€ 2.50
31
0944426001
ref: 31
SPRING
€ 4.00
32
2567136A00
ref: 32
STOPPER,GEAR SHIFT ARM
€ 3.00
33
0928512002
ref: 33
OIL SEAL
€ 7.00
34
2560003D02
ref: 34
25600-03D01
LEVER ASSY,GEAR SHIFT
€ 165.00
35
2565203D00
ref: 35
RUBBER,GEAR SHIFT PEDAL
€ 3.50
36-1
0110706207
ref: 36-1
MODEL K/L/M/N/P 0910
BOLT
€ 2.00
36-2
0150006203
ref: 36-2
MODEL R
BOLT
€ 2.00
37
0932013004
ref: 37
CUSHION
€ 4.50
38
3772029350
ref: 38
BODY,GEAR SHIFT SWITCH
€ 10.50
39
0928026003
ref: 39
O-RING (D:2.4 ID:26.2)
€ 2.50
40-1
0211205125
ref: 40-1
MODEL K/L/M/N/P
SCREW
€ 1.50
40-2
0211205123
ref: 40-2
MODEL R
SCREW
€ 1.50
41
0920905011
ref: 41
PIN(5X15.5)
€ 2.00
42
0944004010
ref: 42
SPRING
€ 1.50
