HEADLAMP
TS125R 1994 (R) (E02 E04 E18 E21)

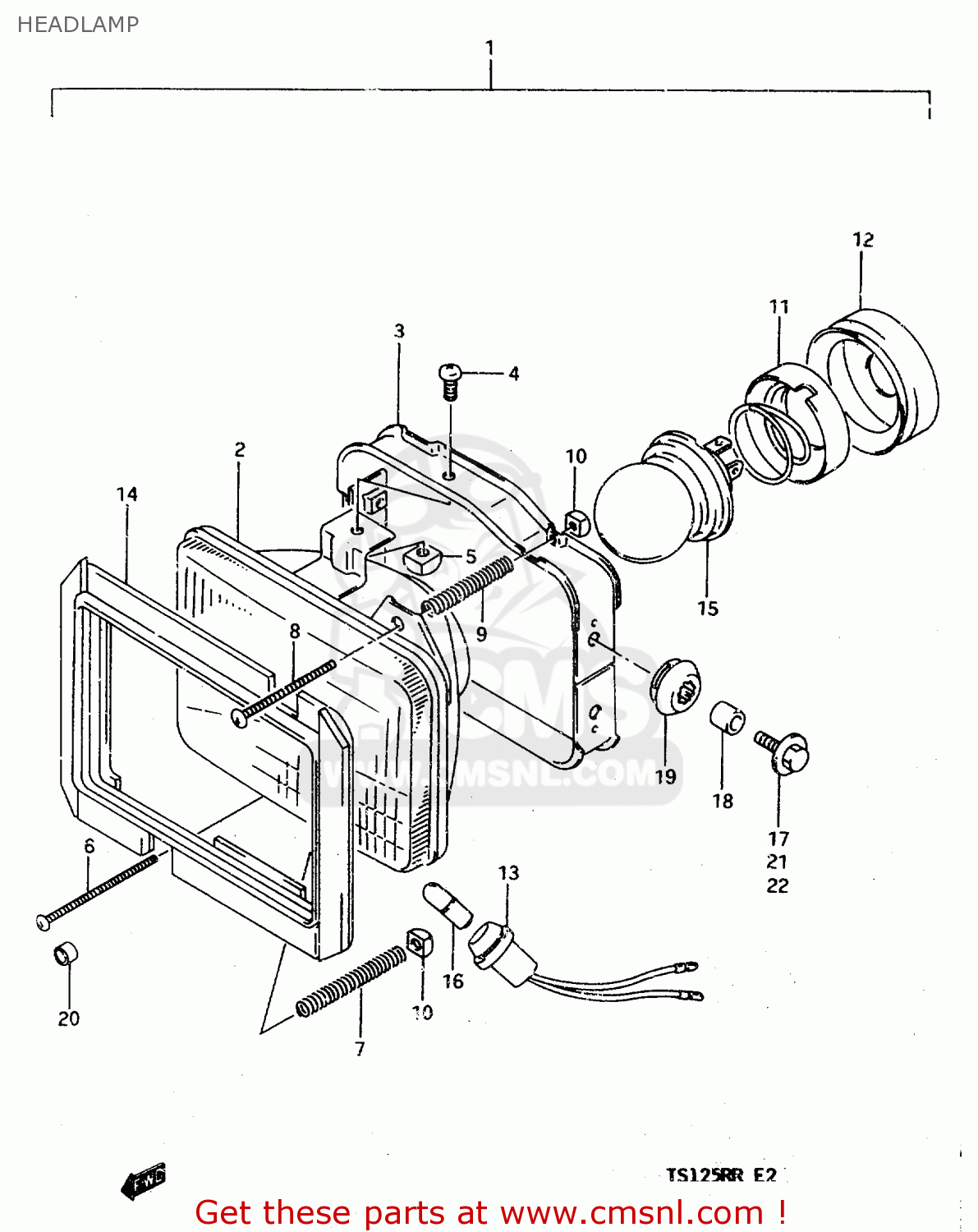

Headlamp diagram TS125R 1994 (R) (E02 E04 E18 E21)
HEADLAMP TS125R 1994 (R) (E02 E04 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510001A21999
ref: 1-1
E2
HEADLAMP ASSY
€ 159.50
1-2
3510001A51999
ref: 1-2
E4,E15,E17,E18,E21,E
HEADLAMP ASSY
€ 141.00
2-1
3512101A20
ref: 2-1
E2
UNIT
€ 94.50
2-2
3512101A50
ref: 2-2
E4,E15,E17,E18,E21,E
UNIT
€ 81.50
3
3514101A00
ref: 3
HOUSING
€ 24.50
4
0211205126
ref: 4
SCREW 5X12
€ 1.50
5
3513545900
ref: 5
NUT
€ 2.50
6-1
3515149200
ref: 6-1
MODEL K/L/M/N/P
SCREW,HEADLAMP ADJUST
€ 4.00
6-2
3515145900
ref: 6-2
MODEL R
SCREW
€ 4.00
7
3515449200
ref: 7
SPRING
€ 3.50
8
3515131300
ref: 8
SCREW,HEADLAMP ADJUST
€ 3.00
9
3515431300
ref: 9
SPRING
€ 2.00
10
3513545600
ref: 10
NUT
€ 3.00
11
3513605300
ref: 11
HOLDER,BULB
€ 9.50
12
3517305300
ref: 12
COVER,SOCKET
€ 9.00
13-1
3611845900
ref: 13-1
MODEL K/L/M/N/P
SOCKET,PARKING
€ 13.00
13-2
3611844B00
ref: 13-2
MODEL R
SOCKET
€ 13.00
14
3512901A01
ref: 14
SHADE
€ 20.00
15-1
0947112048
ref: 15-1
EXECUTED LOCALLY
BULB(12V45/40W)
€ 7.50
15-2
0947112049
ref: 15-2
E4, EXECUTED LOCALLY
BULB (12V, 45/40W)
€ 0.00
16
0947112063
ref: 16
BULB(12V4W)
€ 6.00
17
0911606011
ref: 17
BOLT 6X20
€ 2.00
18
0918006030
ref: 18
SPACER (6.8X10X10)
€ 2.00
19
0932009018
ref: 19
CUSHION
€ 2.00
20
3515843400
ref: 20
CAP,SCREW
€ 2.00
21
0110706257
ref: 21
BOLT
€ 2.00
22
0916006027
ref: 22
WASHER (6.5X20X1.2)
€ 2.00
