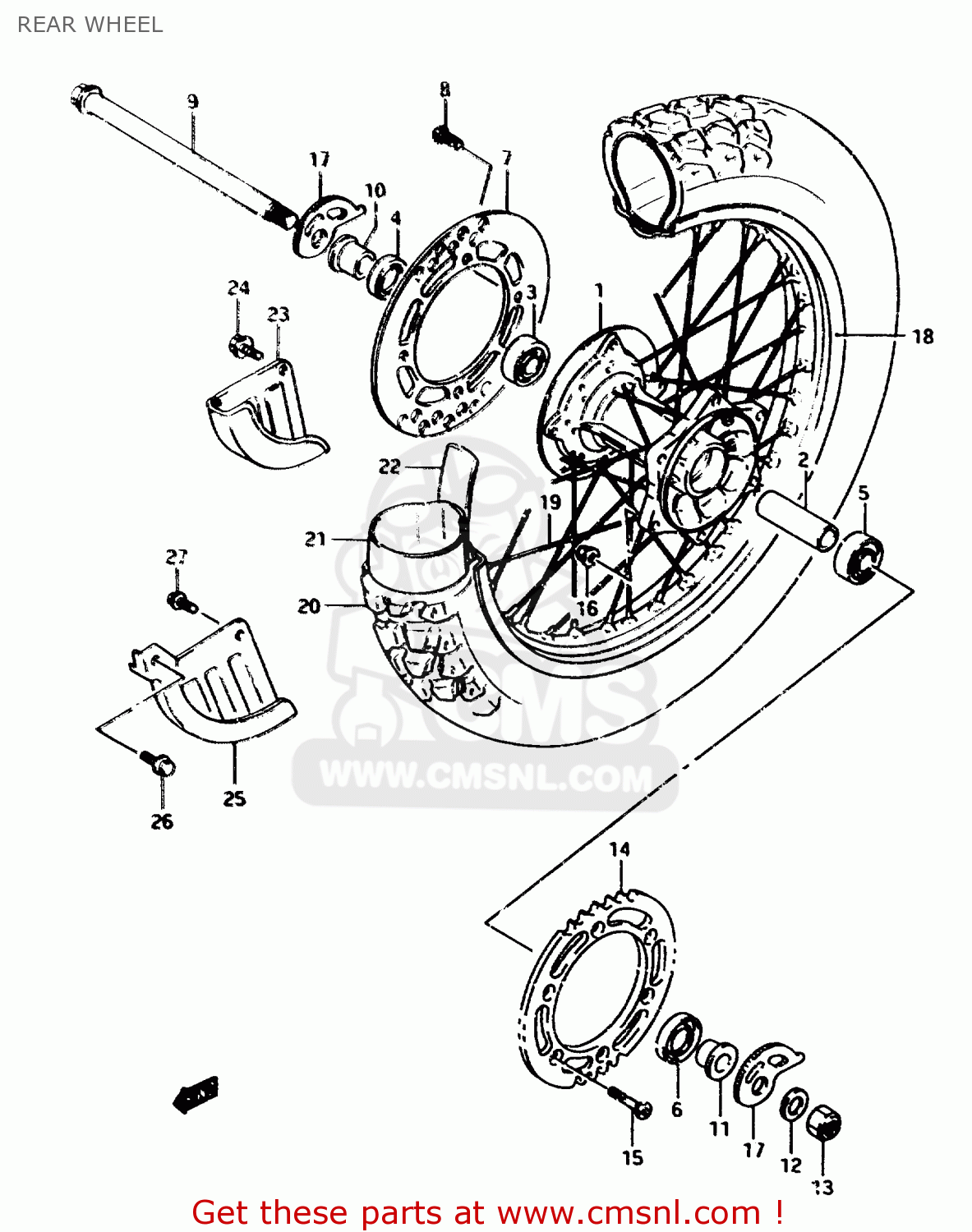

REAR WHEEL

ref

part #

description

quantity

1-1

6411003D00
ref: 1-1
MODEL K

HUB, REAR

€ 768.00

1-2

6411103D00
ref: 1-2
MODEL L/M/N/P/R

HUB,RR WHEEL

€ 768.00

2

0918017095
ref: 2

SPACER(17.3X24X112)

€ 12.00

3

0813362037
ref: 3

BEARING

€ 24.50

4-1

0928426002
ref: 4-1
MODEL K

SEAL,OIL(26X42X8)

€ 12.00

4-2

0928226001
ref: 4-2
MODEL L/M/N/P/R

SEAL,OIL(26X42X8)

€ 13.00

5

0812363037
ref: 5

BEARING

€ 16.00

6-1

0928426003
ref: 6-1
MODEL K

OIL SEAL

€ 9.50

6-2

0928326019
ref: 6-2
MODEL L/M/N/P/R

SEAL,OIL(26X47X5)

€ 9.50

7-1

6921103D00
ref: 7-1
MODEL K

DISC, REAR BRAKE

€ 160.00

7-2

6921103D01
ref: 7-2
MODEL L/M/N/P/R

DISC,RR BRAKE

€ 160.00

8

0910608111
ref: 8

BOLT

€ 4.00

9

6471103D00
ref: 9

AXLE,RR

€ 38.50

10

6474103D00
ref: 10

SPACER, RH

€ 11.50

11

6475103D00
ref: 11

SPACER, LH

€ 12.00

12

0916017047
ref: 12

WASHER(17X30X3)

€ 5.00

13

0831921168
ref: 13

NUT 16MM

€ 5.00

14-1

6451103D00
ref: 14-1
E2,E4,E18

SPROCKET, REAR (NT:50)

€ 77.50

14-2

6451103D10
ref: 14-2
E15,E17,E21,E24,E34,

SPROCKET, REAR (NT:48)

€ 36.00

15

0912008004
ref: 15

SCREW(8X33.5)

€ 3.00

16

0831931087
ref: 16

NUT

€ 2.50

17

6141103D00
ref: 17

ADJUSTER,CHAIN

€ 12.50

18

6531103D00
ref: 18

RIM, WHEEL (1.85X18)

€ 113.00

19

6532003D00
ref: 19

SPOKE SET,RR WHEEL

€ 39.00

20

6511003D00
ref: 20
BRIDGESTONE

TIRE, REAR (4.10-18)

€ 0.00

21

6520033030
ref: 21

TUBE ASSEMBLY,WHEEL,INNER

€ 35.00

22

6526133030
ref: 22

PROTECTOR,INNER TUBE

€ 5.50

23

6923127C00
ref: 23
MODEL M~F.NO.11213 F

COVER,REAR DISC

€ 29.50

24

0151706128
ref: 24
MODEL M

BOLT

€ 2.50

25

6923128C00
ref: 25
MODEL M F.NO.11211

COVER,REAR DISC

€ 29.50

26

0910306130
ref: 26
MODEL M/N/P/R

BOLT 6X20

€ 2.50

27-1

0151706128
ref: 27-1
MODEL M/N/P

BOLT

€ 2.50

27-2

0155006123
ref: 27-2
MODEL R

BOLT

€ 2.50
