CRANKSHAFT
TS125R 1994 (R) (E02 E04 E18 E21)

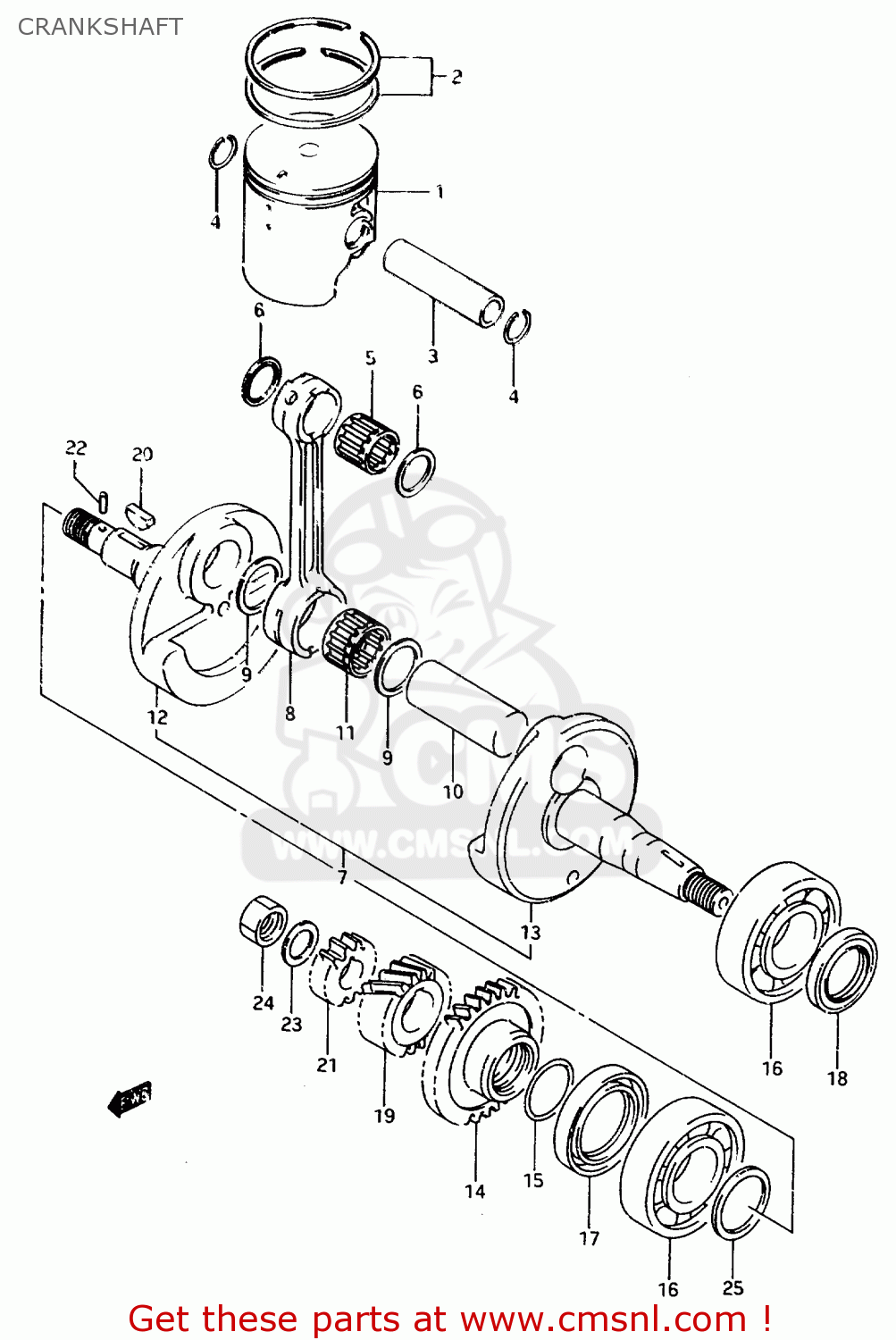

Crankshaft diagram TS125R 1994 (R) (E02 E04 E18 E21)
CRANKSHAFT TS125R 1994 (R) (E02 E04 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1-1
1211003D030F0
ref: 1-1
PISTON (56.00MM)
€ 79.50
1-2
1211003D03025
ref: 1-2
OPT
PISTON (0S:0.25)
€ 71.50
1-3
1211003D03050
ref: 1-3
OPT
PISTON (OS:0.5)
€ 525.50
2-1
1214003D30
ref: 2-1
RING SET,PISTON
€ 52.50
2-2
1214003D30025
ref: 2-2
OPT
RING SET, PISTON (OS:0.25)
€ 40.00
2-3
1214003D30050
ref: 2-3
OPT
RING SET, PISTON (OS:0.5)
€ 39.50
3
1215132C00
ref: 3
PIN, PISTON
€ 14.00
4
0938116001
ref: 4
RING,SNAP 16MM
€ 1.50
5
0926316028
ref: 5
09263-16027
BEARING(16X20X17.8)
€ 13.00
6
0916916007
ref: 6
WASHER
€ 6.50
7
1220003D00
ref: 7
CRANKSHAFT ASSY
€ 334.00
8
1216112C060D0
ref: 8
ROD,CONNECTING
€ 100.00
9
0916022070
ref: 9
WASHER(22X27.5X1.5)
€ 9.50
10
1221119D000A0
ref: 10
PIN,CRANK
€ 27.00
11
09263220470C0
ref: 11
ROLLER BEARING (22X28X1
€ 64.00
12
1222103D01
ref: 12
CRANKSHAFT, RH
€ 121.00
13
1226103D01
ref: 13
CRANKSHAFT,L
€ 138.00
14-1
1266103D01
ref: 14-1
MODEL K/L/M/N
GEAR, CRANK BALANCER DRIVE
€ 96.00
14-2
1266103D02
ref: 14-2
MODEL P/R
GEAR,CRANK BLANCER DRIVE
€ 96.00
15
0928024007
ref: 15
O RING(D:2.3,ID:24.4)
€ 2.00
16
0926225084
ref: 16
BEARING(25X62X17)
€ 29.00
17
0928336004
ref: 17
RH
SEAL,OIL(36X52X8)
€ 15.00
18
0928325079
ref: 18
LH
SEAL,OIL(25X36X6)
€ 7.50
19
2111136A00
ref: 19
GEAR,PRIMARY DRIVE
€ 41.00
20
0834131059
ref: 20
KEY
€ 3.00
21
1745113A01
ref: 21
GEAR,WATER PUMP DRIVE
€ 23.50
22
0422103059
ref: 22
PIN
€ 1.50
23
0916414011
ref: 23
WASHER
€ 2.00
24
0914014027
ref: 24
NUT
€ 2.50
25-1
0917025341160
ref: 25-1
PASTILHA
€ 5.50
25-2
0917025341165
ref: 25-2
SHIM(25X34X1.65)
€ 0.00
25-3
0917025341170
ref: 25-3
SHIM (T:1.7)
€ 0.00
25-4
0917025341175
ref: 25-4
SHIM(25X34X1.75)
€ 0.00
25-5
0917025341180
ref: 25-5
SHIM (T:1.8)
€ 6.00
25-6
0917025341185
ref: 25-6
SHIM(25X34X1.85)
€ 5.50
25-7
0917025341190
ref: 25-7
SHIM,25X34X1.9
€ 5.50
25-8
0917025341195
ref: 25-8
SHIM(25X34X1.95)
€ 4.50
25-9
0917025341200
ref: 25-9
SHIM(25X34X2)
€ 5.00
25-10
0917025341205
ref: 25-10
SHIM(25X34X2.05)
€ 5.50
25-11
0917025341210
ref: 25-11
SHIM (T:2.1)
€ 6.00
25-12
0917025341215
ref: 25-12
SHIM(25X34X2.15)
€ 0.00
25-13
0917025341220
ref: 25-13
SHIM (T:2.2)
€ 5.50
25-14
0917025341225
ref: 25-14
SHIM (T:2.25)
€ 5.00
25-15
0917025341230
ref: 25-15
SHIM,25X34X2.3
€ 5.50
