SPEEDOMETER (E24)
TS125R 1994 (R) (E02 E04 E18 E21)

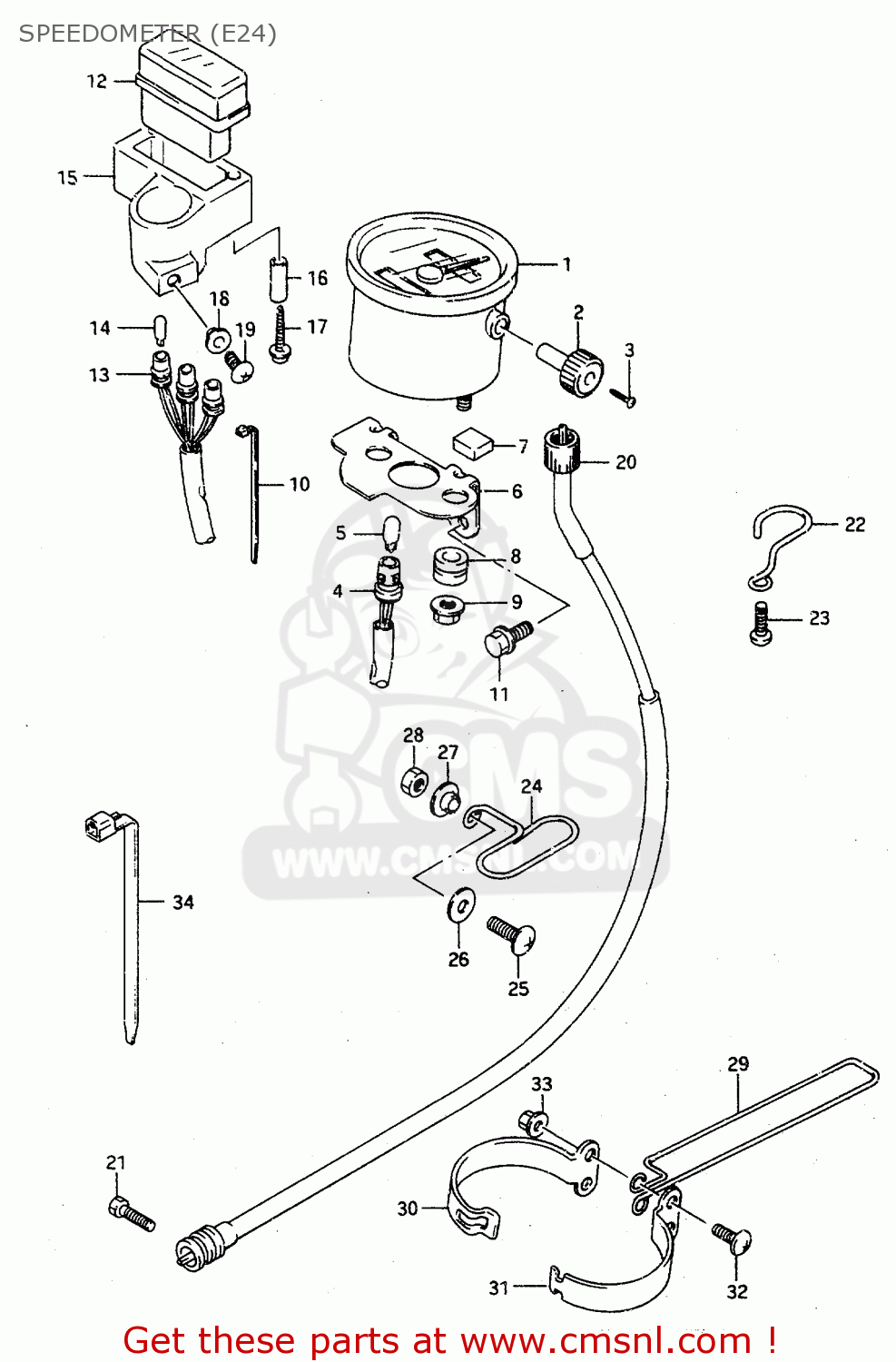

Speedometer (e24) diagram TS125R 1994 (R) (E02 E04 E18 E21)
SPEEDOMETER (E24) TS125R 1994 (R) (E02 E04 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1
3412003D00
ref: 1
SPEEDOMETER
€ 0.00
2
3412444B30
ref: 2
KNOB,TRIP
€ 7.00
3
3418414A00
ref: 3
SCREW,TRIP KNOB
€ 2.00
4
3417003D00
ref: 4
SOCKET
€ 0.00
5
0947112085
ref: 5
BULB(12V3W,WB371,T7)
€ 3.00
6
3495003D00
ref: 6
BRACKET,SPEEDOMETER
€ 39.00
7
3416103D00
ref: 7
CUSHION
€ 2.00
8
3418930921
ref: 8
CUSHION
€ 3.00
9
3418519C00
ref: 9
NUT
€ 3.00
10
3495416730
ref: 10
CLAMP
€ 2.50
11
0151706125
ref: 11
BOLT 6X12
€ 2.50
12
3638008D00
ref: 12
BOX ASSY, PILOT LAMP
€ 0.00
13
3639408D00
ref: 13
SOCKET
€ 23.00
14
0947112118
ref: 14
BULB(13.5V,2W,A7427)
€ 2.00
15-1
3638208D00
ref: 15-1
MODEL K/L/M/N
HOLDER, PILOT BOX
€ 0.00
15-2
3638208D01
ref: 15-2
MODEL P
HOLDER,PILOT BOX
€ 0.00
16
0918004016
ref: 16
SPACER (4.5X6.5X25)
€ 3.50
17
0351114355
ref: 17
SCREW
€ 2.00
18
0916905011
ref: 18
WASHER
€ 2.00
19
0214205104
ref: 19
SCREW 5X10
€ 2.50
20
3491003D20
ref: 20
CABLE ASSY, SPEEDOMETER
€ 58.50
21
0110705167
ref: 21
BOLT
€ 1.50
22
3493803D10
ref: 22
GUIDE,SPEEDOMETER CABLE
€ 0.00
23
0211205105
ref: 23
SCREW
€ 2.00
24
3493803D20
ref: 24
GUIDE, CABLE NO.2
€ 7.50
25
0214206164
ref: 25
SCREW
€ 2.50
26
0916006057
ref: 26
WASHER
€ 2.00
27
0916906053
ref: 27
WASHER
€ 2.00
28
0831012066
ref: 28
NUT
€ 2.00
29
3493803D30
ref: 29
GUIDE, CABLE NO.3
€ 0.00
30
3492603D00
ref: 30
BRACKET,CABLE GUIDE
€ 11.50
31
3492703D01
ref: 31
BRACKET,CABLE GUIDE
€ 10.00
32
0214205164
ref: 32
SCREW
€ 2.50
33
0831616055
ref: 33
NUT ,5MM
€ 2.00
34
0940714403
ref: 34
CLAMP(L:125)
€ 2.50
