CYLINDER
TS125R 1994 (R) (E02 E04 E18 E21)

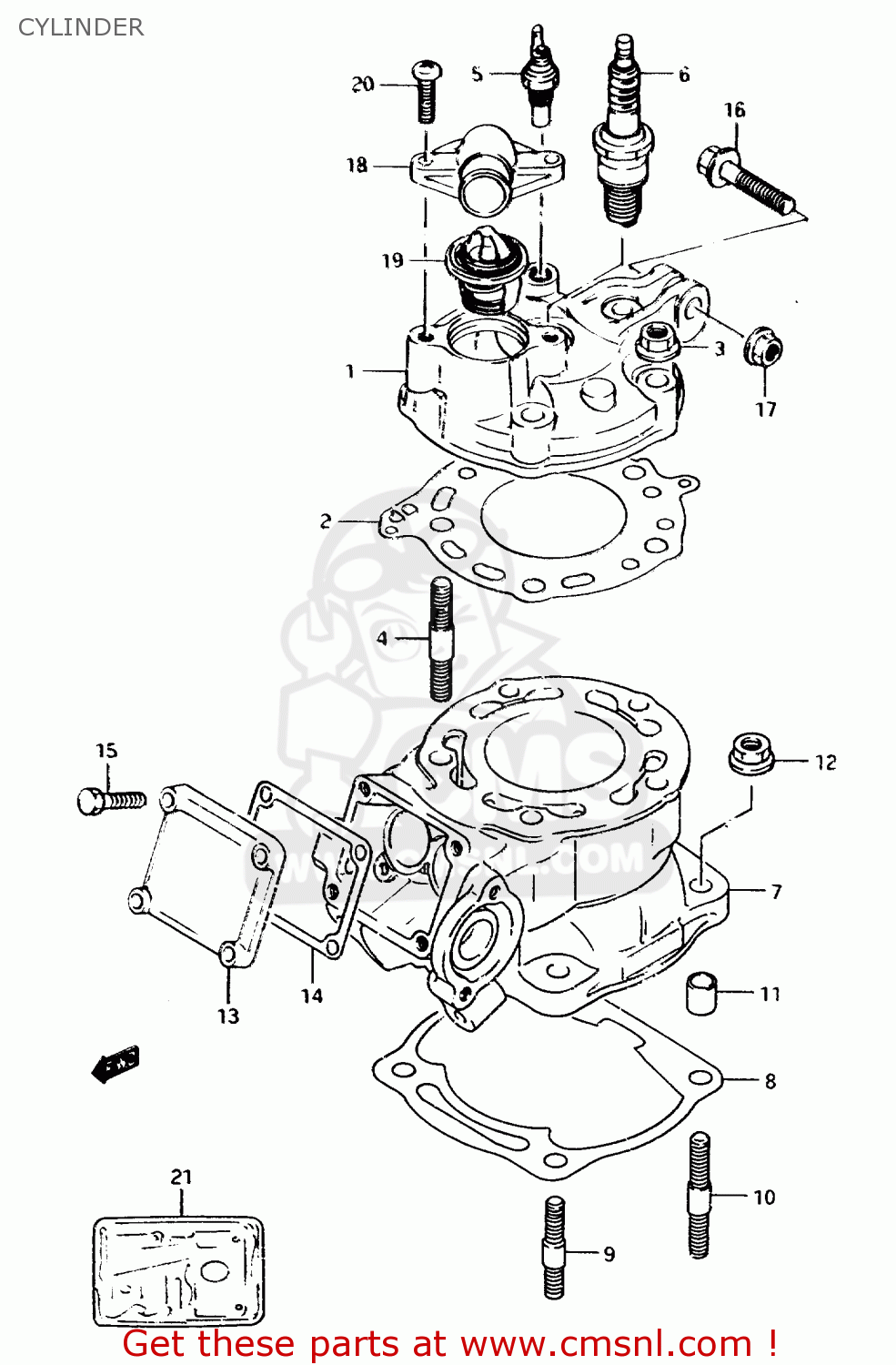

Cylinder diagram TS125R 1994 (R) (E02 E04 E18 E21)
CYLINDER TS125R 1994 (R) (E02 E04 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1-1
1111103D10
ref: 1-1
~E.NO.115346
HEAD, CYLINDER
€ 190.00
1-2
1111103D11
ref: 1-2
E.NO.115347~
HEAD, CYLINDER
€ 190.00
1-3
1111103D00
ref: 1-3
E24
HEAD, CYLINDER
€ 727.50
2
1114103D00
ref: 2
GASKET,CYLINDER HEAD (NAS)
€ 17.00
3-1
0831616088
ref: 3-1
MODEL K/L/M/N/P
NUT
€ 2.50
3-2
0831610083
ref: 3-2
MODEL R
NUT
€ 3.00
4
0910808198
ref: 4
BOLT,STUD
€ 5.00
5
3485082012
ref: 5
EXCEPT E24
GAUGE,WATER,TM
€ 82.50
6-1
0948200127
ref: 6-1
PLUG,SPARK(BR9ES)
€ 2.50
6-2
0948200233111
ref: 6-2
SPARK PLUG (ND, W27ESR)
€ 10.50
7-1
1121003D030F0
ref: 7-1
~E.NO.115401
CYLINDER
€ 564.50
7-2
1121003D040F0
ref: 7-2
E.NO.115402~
CYLINDER
€ 564.50
7-3
1121003D100F0
ref: 7-3
MODEL K E18
CYLINDER
€ 447.50
8
1124103D10
ref: 8
MODEL K E18
GASKET,CYLINDER (NAS)
€ 37.00
9
0910808090
ref: 9
BOLT,STUD L:25
€ 1.50
10
0910808199
ref: 10
BOLT,STUD
€ 3.00
11
0421111169
ref: 11
PIN
€ 2.00
12-1
0831616088
ref: 12-1
MODEL K/L/M/M/P
NUT
€ 2.50
12-2
0831610083
ref: 12-2
MODEL R
NUT
€ 3.00
13-1
1124803D01
ref: 13-1
~E.NO.115837
COVER, CYLINDER
€ 22.50
13-2
1124812C01
ref: 13-2
E.NO.115838~
COVER,CYLINDER NO.2
€ 22.50
14
1123801B30H17
ref: 14
GASKET,CYL COVER NO.2 (NAS)
€ 6.00
15-1
0110705167
ref: 15-1
MODEL K/L/M/N/P
BOLT
€ 1.50
15-2
0150005163
ref: 15-2
MODEL R
BOLT
€ 1.50
16-1
0151708407
ref: 16-1
MODEL K/L/M/N/P
BOLT 8X40
€ 3.50
16-2
0155008403
ref: 16-2
MODEL R
BOLT
€ 3.50
17
0831931087
ref: 17
NUT
€ 2.50
18
1766136A00
ref: 18
COVER,THERMOSTAT
€ 38.50
19-1
1767001A00
ref: 19-1
MODEL K/LMODEL M/N/P
THERMOSTAT,WATER 65 DEG
€ 35.00
19-2
1767008D00
ref: 19-2
MODEL M/N/P/R
THERMOSTAT COMP,WATER
€ 38.00
20-1
0211206207
ref: 20-1
MODEL K/L/M/N/P
SCREW
€ 2.00
20-2
0211206203
ref: 20-2
MODEL R
SCREW, 6X20
€ 2.00
21-1
1140103840
ref: 21-1
GASKET SET
€ 54.50
21-2
1140103850
ref: 21-2
E4
GASKET SET
€ 78.50
