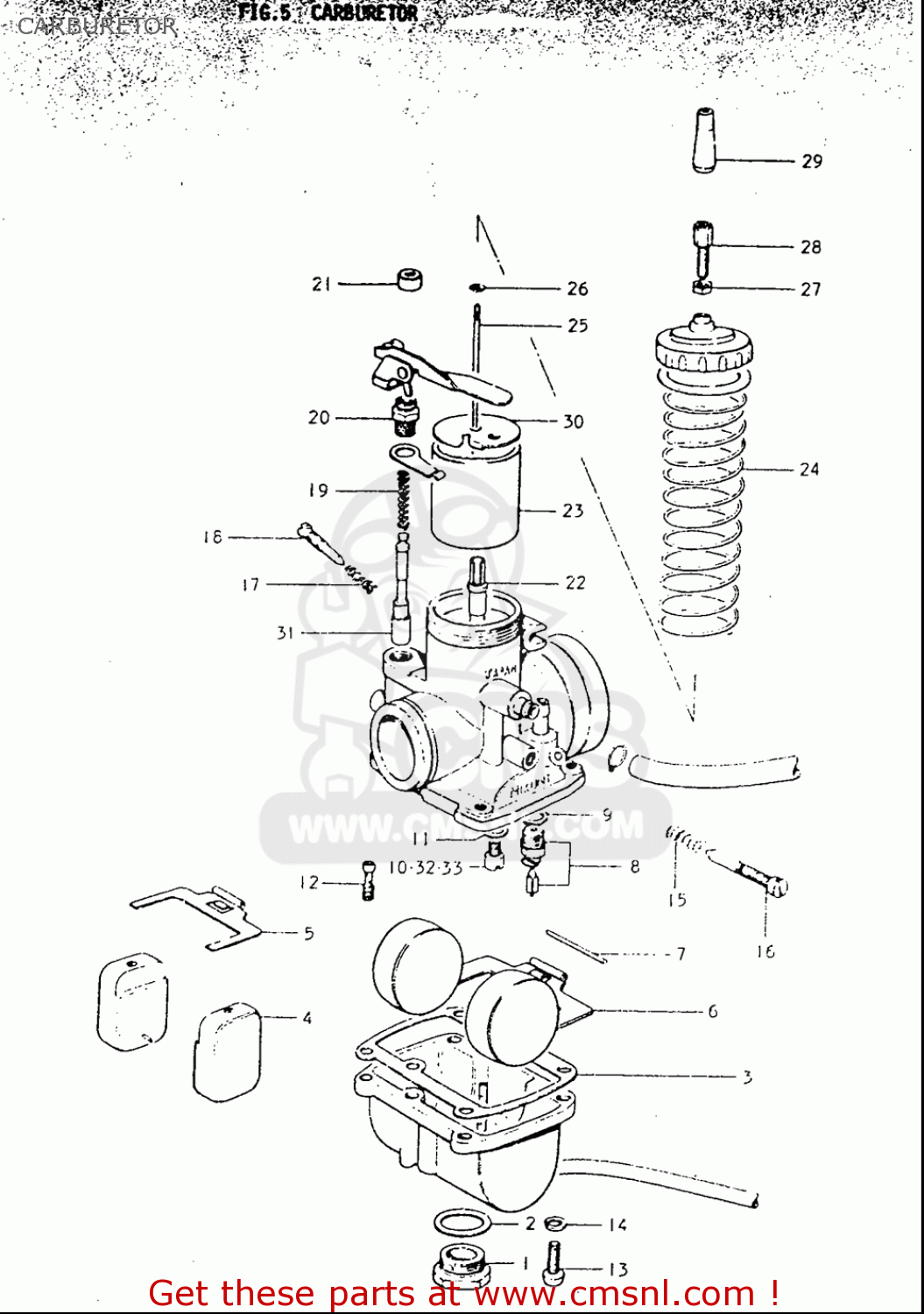

CARBURETOR

ref

part #

description

quantity

2

1324916600
ref: 2

GASKET,DRAIN PLUG

€ 0.00

4

1325216600
ref: 4

FLOAT

€ 17.50

8-1

1337016600
ref: 8-1

VALVE ASSY,NEEDLE

€ 45.00

8-2

1337041500
ref: 8-2

VALVE ASSY,NEEDLE

€ 61.50

9

1339216600
ref: 9

GASKET,MAIN JET HOLDER (NAS)

€ 3.00

10-1

0949123011
ref: 10-1

JET,MAIN(115)

€ 10.50

10-2

0949123017
ref: 10-2

JET,MAIN(117.5)

€ 11.00

11

1338203110
ref: 11

WASHER

€ 2.50

12

0949225005
ref: 12

JET,PILOT(25)

€ 6.50

13

0211205167
ref: 13

SCREW

€ 2.50

14

0832101057
ref: 14

WASHER,LOCK

€ 2.00

15

1326803110
ref: 15

SPRING,THROTTLE SCREW

€ 3.50

16-1

1326740230
ref: 16-1

SCREW,THROTTLE STOP

€ 7.50

17

1326801010
ref: 17

SPRING

€ 3.50

18

1326915010
ref: 18

SCREW,PILOT AIR

€ 10.50

19-1

1341709210
ref: 19-1

SPRING

€ 4.50

20

1341809110
ref: 20

HOLDER,GUIDE

€ 9.00

21

1368209210
ref: 21

CAP,PLUNGER

€ 3.00

26

1339410010
ref: 26

CLIP

€ 4.50

27

1366116600
ref: 27

NUT

€ 5.00

28

1357748110
ref: 28

ADJUSTER,CABLE

€ 8.00

29

1368116600
ref: 29

CAP,RUBBER

€ 7.00

31

1341118010
ref: 31

PLUNGER,STARTER

€ 12.50

32-1

0949124016
ref: 32-1

JET,MAIN(120)

€ 11.50

32-2

0949123011
ref: 32-2

JET,MAIN(115)

€ 10.50

32-3

0949122015
ref: 32-3

JET,MAIN(112.5)

€ 11.00

33-1

0949121016
ref: 33-1

JET,MAIN(105)

€ 9.50

33-2

0949121014
ref: 33-2

JET,MAIN(107.5)

€ 8.50

33-3

0949122016
ref: 33-3

JET,MAIN(110)

€ 7.00

33-4

0949125011
ref: 33-4

JET,MAIN(127.5)

€ 10.00

33-5

0949126011
ref: 33-5

JET,MAIN(130)

€ 11.50

33-6

0949127009
ref: 33-6

JET,MAIN(135)

€ 10.50

all assemblies
