REAR SWINGING ARM
TS250 19691970 USA (E03)

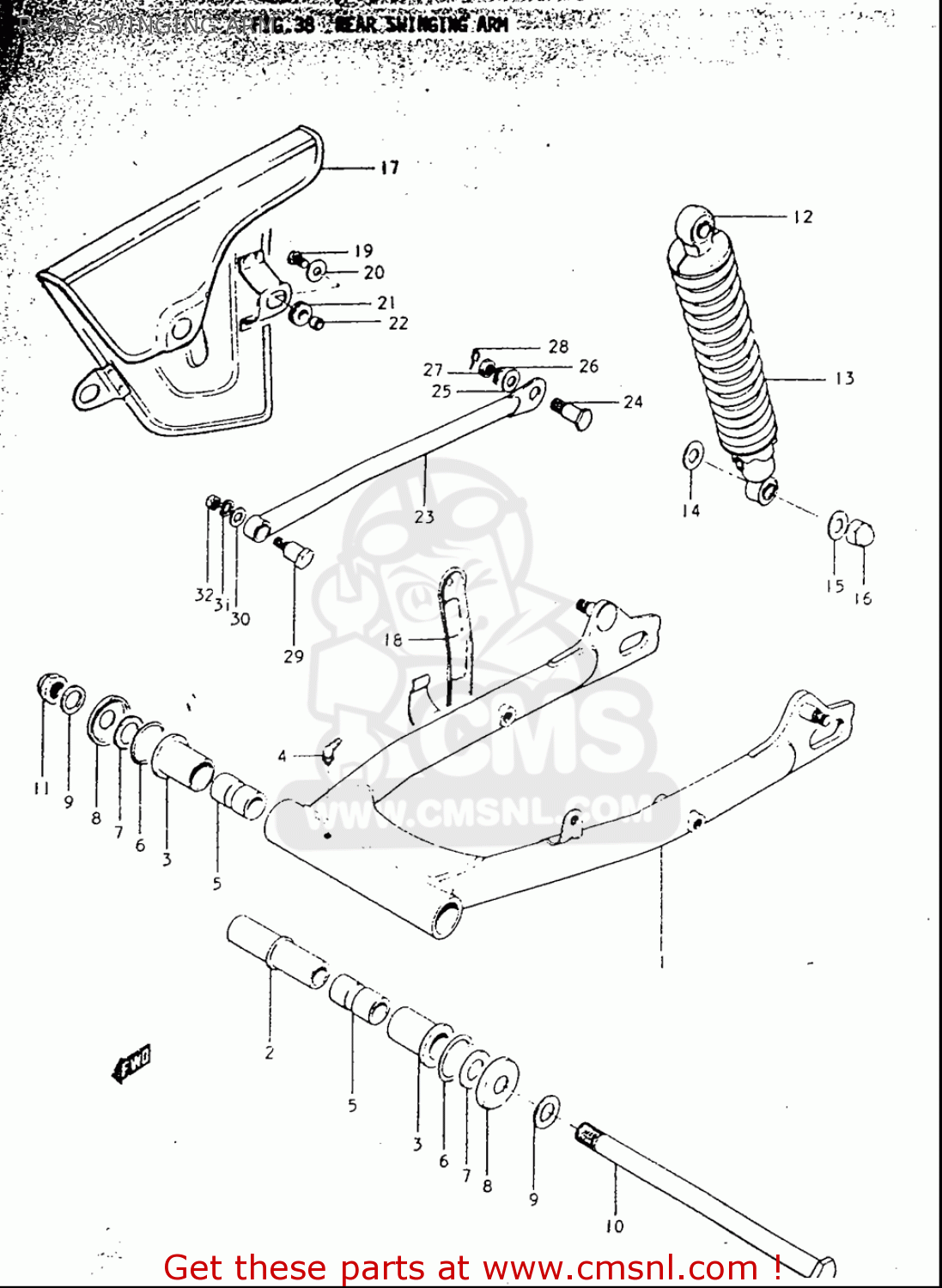

Rear swinging arm diagram TS250 19691970 USA (E03)
REAR SWINGING ARM TS250 19691970 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
4
0835131008
ref: 4
NIPPLE,GREASE
€ 10.50
5
6125115001
ref: 5
SPACER
€ 21.00
6
0928030001
ref: 6
O RING(D:3,ID:29.5)
€ 2.00
7
0916014009
ref: 7
WASHER(14.5X29X2.3)
€ 3.50
8
6126215000
ref: 8
COVER
€ 84.00
9
0832201147
ref: 9
WASHER
€ 2.00
14
0832201127
ref: 14
WASHER
€ 2.00
15
0916010127
ref: 15
WASHER (10.5X24X2.3)
€ 2.00
16
0831310107
ref: 16
NUT
€ 2.50
19
021620616C
ref: 19
SCREW
€ 2.50
20
0916006077
ref: 20
WASHER(6.5X20X1.2)
€ 2.00
21
0932008021
ref: 21
CUSHION
€ 4.00
22
09180C06259J000
ref: 22
SPACER,6.5X9X7
€ 0.00
23
6431016400
ref: 23
TORQUE LINK,REAR
€ 0.00
25
0916012088
ref: 25
WASHER(12.5X24X1.6)
€ 2.00
26
0832101107
ref: 26
WASHER,LOCK
€ 2.00
27
0831000107
ref: 27
NUT
€ 2.50
28
0938408001
ref: 28
SPRING,RETAINER
€ 3.00
30
0832201087
ref: 30
WASHER
€ 2.00
31
0832101087
ref: 31
WASHER,LOCK
€ 2.00
32
0831000087
ref: 32
NUT
€ 2.00
