MUFFLER
TS250 19691970 USA (E03)

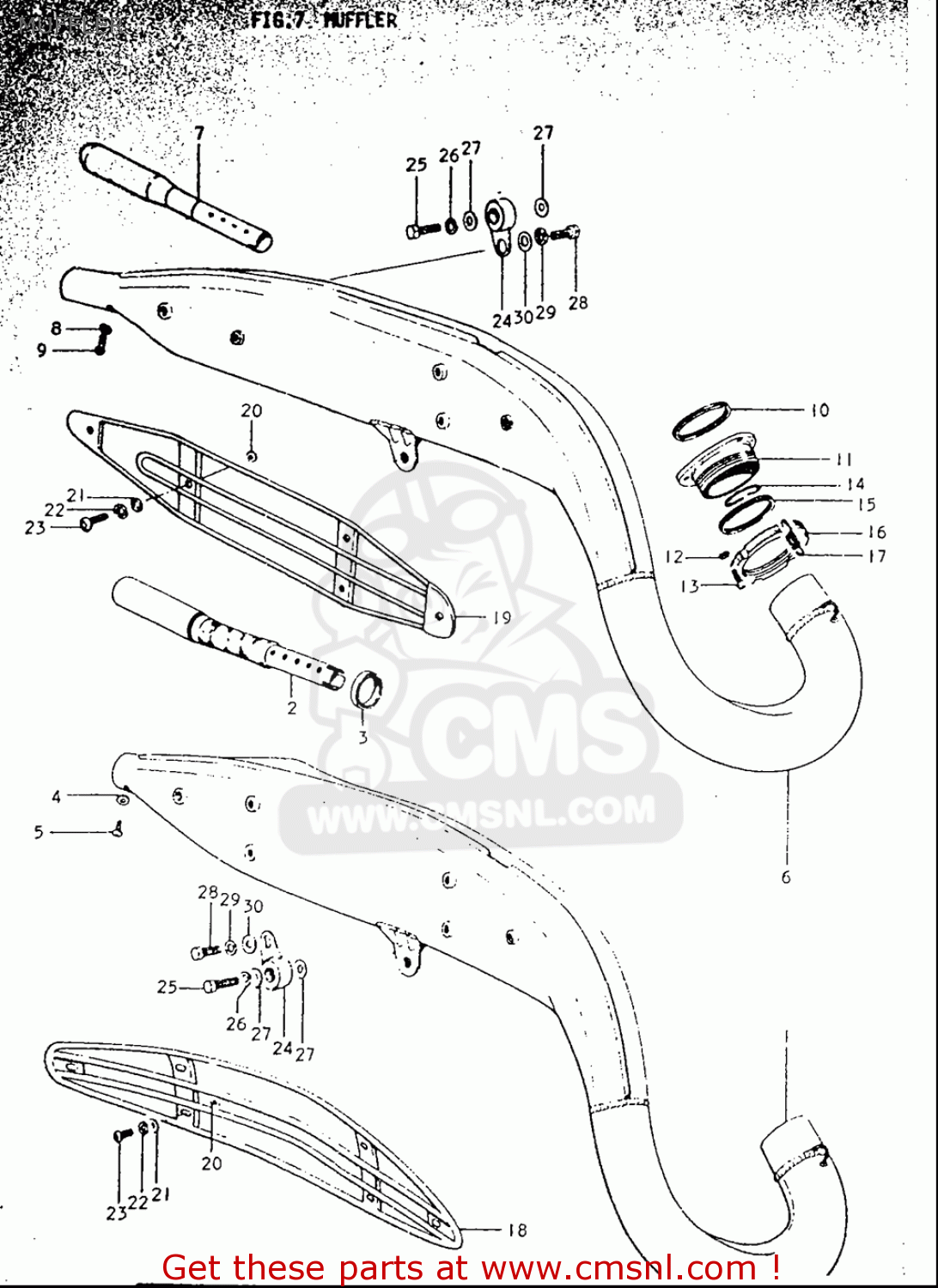

Muffler diagram TS250 19691970 USA (E03)
MUFFLER TS250 19691970 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
8
0916806105
ref: 8
GASKET(6.2X12X1.5) (NAS)
€ 2.00
10
1418115020
ref: 10
GASKET,EXHAUST PIPE (NAS)
€ 8.00
12
0832101067
ref: 12
WASHER,LOCK
€ 2.50
13
0211206207
ref: 13
SCREW
€ 2.00
15
1418216480
ref: 15
CLAMP,EXHAUST PIPE
€ 11.50
16
1418316400
ref: 16
HOLDER,EXHAUST PIPE CLAMP
€ 27.50
17
0944311002
ref: 17
SPRING
€ 4.50
20
0916806105
ref: 20
GASKET(6.2X12X1.5) (NAS)
€ 2.00
21
0832201067
ref: 21
WASHER
€ 2.00
22
0832101067
ref: 22
WASHER,LOCK
€ 2.50
23
0211206127
ref: 23
SCREW
€ 2.00
25
0150008307
ref: 25
BOLT
€ 2.50
26
0832101087
ref: 26
WASHER,LOCK
€ 2.00
27
0832201087
ref: 27
WASHER
€ 2.00
28
0150008163
ref: 28
BOLT
€ 2.00
29
0832101087
ref: 29
WASHER,LOCK
€ 2.00
30
0832201087
ref: 30
WASHER
€ 2.00
