KICK STARTER

TS250 19691970 USA (E03)

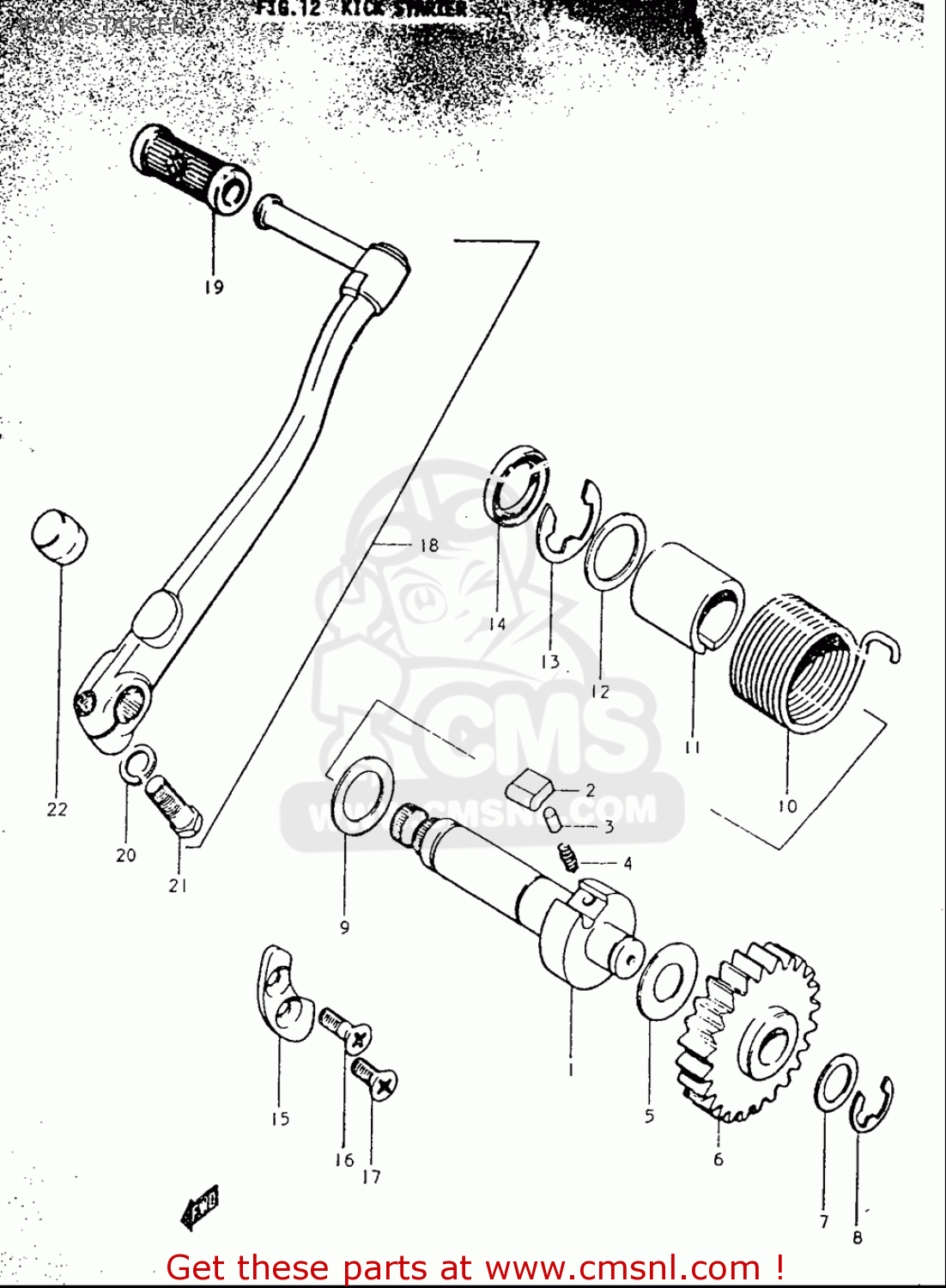

Kick starter diagram TS250 19691970 USA (E03)

KICK STARTER TS250 19691970 USA (E03)

KICK STARTER TS250 19691970 USA (E03)

prices are in EUR

ref

part #

description

quantity

3

0920905011
ref: 3

PIN(5X15.5)

€ 2.00

5

0916016003
ref: 5

WASHER(16X30X1)

€ 2.50

8

083321112A
ref: 8

E RING

€ 2.00

9

0821122341
ref: 9

WASHER

€ 3.00

10

0944845001
ref: 10

SPRING

€ 2.50

12

0821122341
ref: 12

WASHER

€ 3.00

16

0212206167
ref: 16

SCREW

€ 2.00

17

0913906002
ref: 17

SCREW(6X19)

€ 2.50

19-1

2635201000
ref: 19-1

RUBBER,KICK STARTER PEDAL

€ 3.50

20

0832101107
ref: 20

WASHER,LOCK

€ 2.00

21

0150010303
ref: 21

BOLT

€ 3.00
