REAR WHEEL
TS250 19691970 USA (E03)

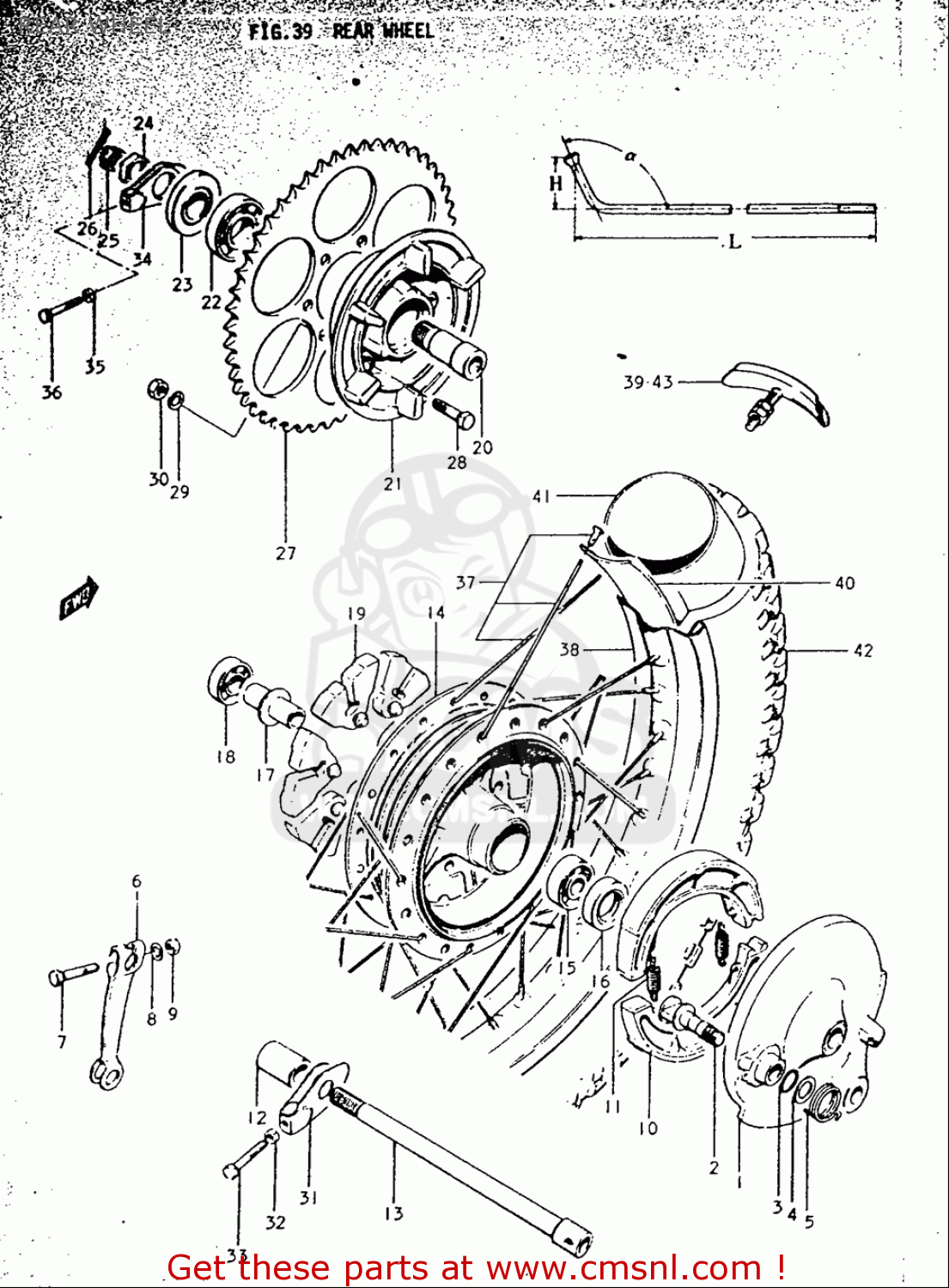

Rear wheel diagram TS250 19691970 USA (E03)
REAR WHEEL TS250 19691970 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
3
0928015003
ref: 3
O RING(D:2.4,ID:14.8)
€ 2.00
4
0916015048
ref: 4
WASHER(15.5X24X1.6)
€ 2.50
5
0944830001
ref: 5
SPRING
€ 16.00
8
0832201067
ref: 8
WASHER
€ 2.00
9
0831000067
ref: 9
NUT
€ 2.50
13
6471133000
ref: 13
AXLE,REAR
€ 33.50
15
0926217023
ref: 15
BEARING(17X40X12)
€ 14.00
16
0928525003
ref: 16
SEAL,OIL(25X40X6)
€ 12.50
18
0926217023
ref: 18
BEARING(17X40X12)
€ 14.00
24
0914024010
ref: 24
NUT
€ 8.50
28
0910510001
ref: 28
BOLT(10X35.5)
€ 3.50
29
0832101107
ref: 29
WASHER,LOCK
€ 2.00
30
0831000107
ref: 30
NUT
€ 2.50
32
0831000087
ref: 32
NUT
€ 2.00
33
0910408034
ref: 33
BOLT(8X50)
€ 3.00
34
6142015002
ref: 34
ADJUSTER,CHAIN,L
€ 474.50
35
0831000087
ref: 35
NUT
€ 2.00
36
0910408034
ref: 36
BOLT(8X50)
€ 3.00
40
5526111010
ref: 40
PROTECTOR,INNER TUBE
€ 3.50
41
6520049015
ref: 41
TUBE,INNER
€ 39.00
