OIL PUMP
TS250 19691970 USA (E03)

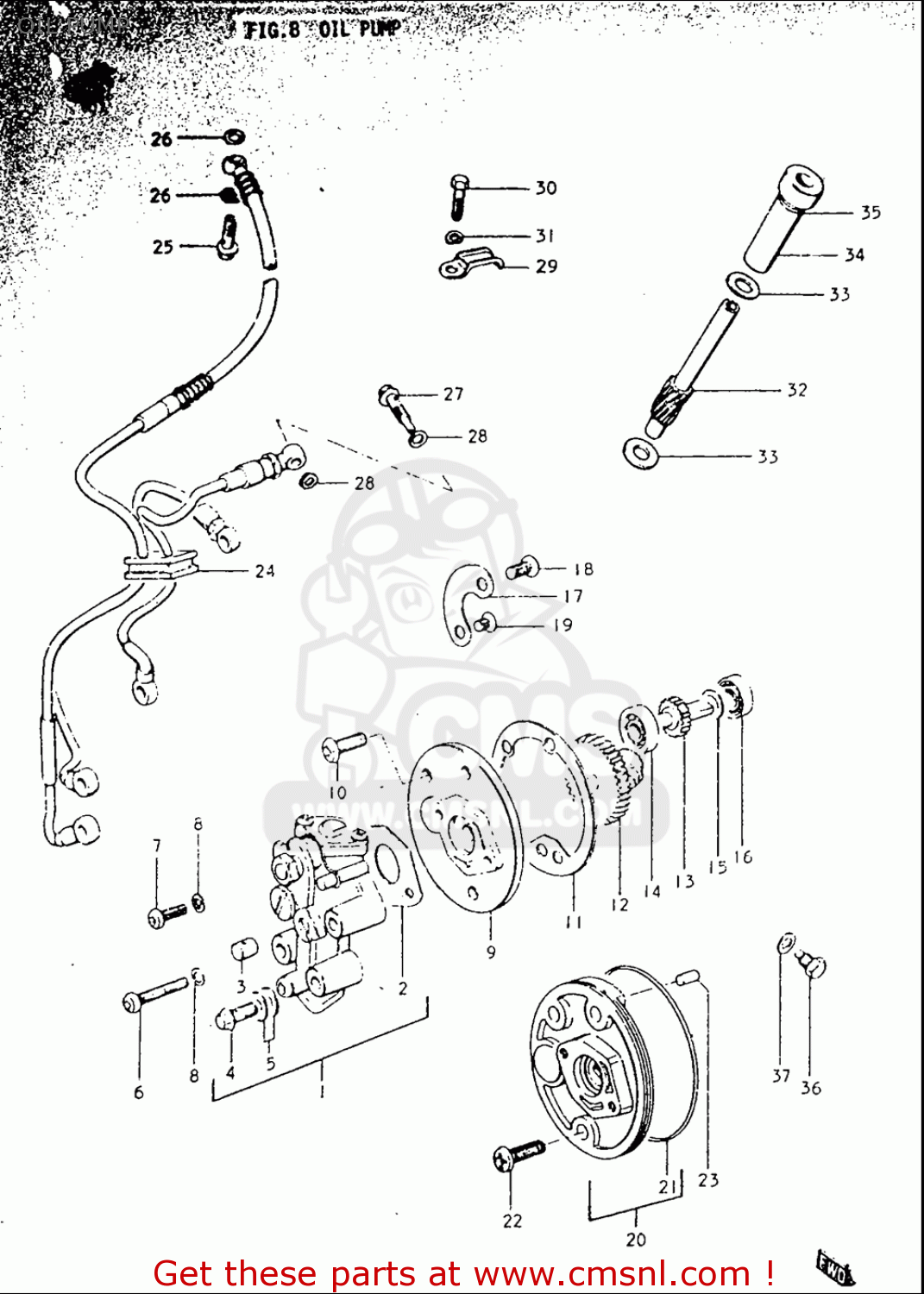

Oil pump diagram TS250 19691970 USA (E03)
OIL PUMP TS250 19691970 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
1673103101
ref: 2
GASKET,OIL PUMP (NAS)
€ 2.50
3
1629203112
ref: 3
TERMINAL,CABLE
€ 3.50
4
0936006005
ref: 4
UNION
€ 3.50
5
0916806004
ref: 5
GASKET(6.2X11X1).2 (NAS)
€ 1.50
6
0912505109
ref: 6
SCREW(5X27)
€ 2.00
7
0211205167
ref: 7
SCREW
€ 2.50
8
0832101057
ref: 8
WASHER,LOCK
€ 2.00
15
0916008003
ref: 15
WASHER(8X13.7X1)
€ 2.00
16
0811306260
ref: 16
BEARING
€ 0.00
19
0211206067
ref: 19
SCREW
€ 2.00
21
0928076001A
ref: 21
O-RING (D:2.5 ID:68.5)
€ 2.50
25
0936006005
ref: 25
UNION
€ 3.50
26
0916806004
ref: 26
GASKET(6.2X11X1).2 (NAS)
€ 1.50
27
0936006009
ref: 27
UNION
€ 7.00
31
0832101067
ref: 31
WASHER,LOCK
€ 2.50
33
0916008003
ref: 33
WASHER(8X13.7X1)
€ 2.00
35
0928010001
ref: 35
O RING(D:1.3,ID:9.6)
€ 2.00
36
0913506002
ref: 36
BOLT
€ 2.50
37
0916806001
ref: 37
GASKET(6.2X11X1) (NAS)
€ 1.50
