HANDLEBAR - CABLE

TS250 19691970 USA (E03)

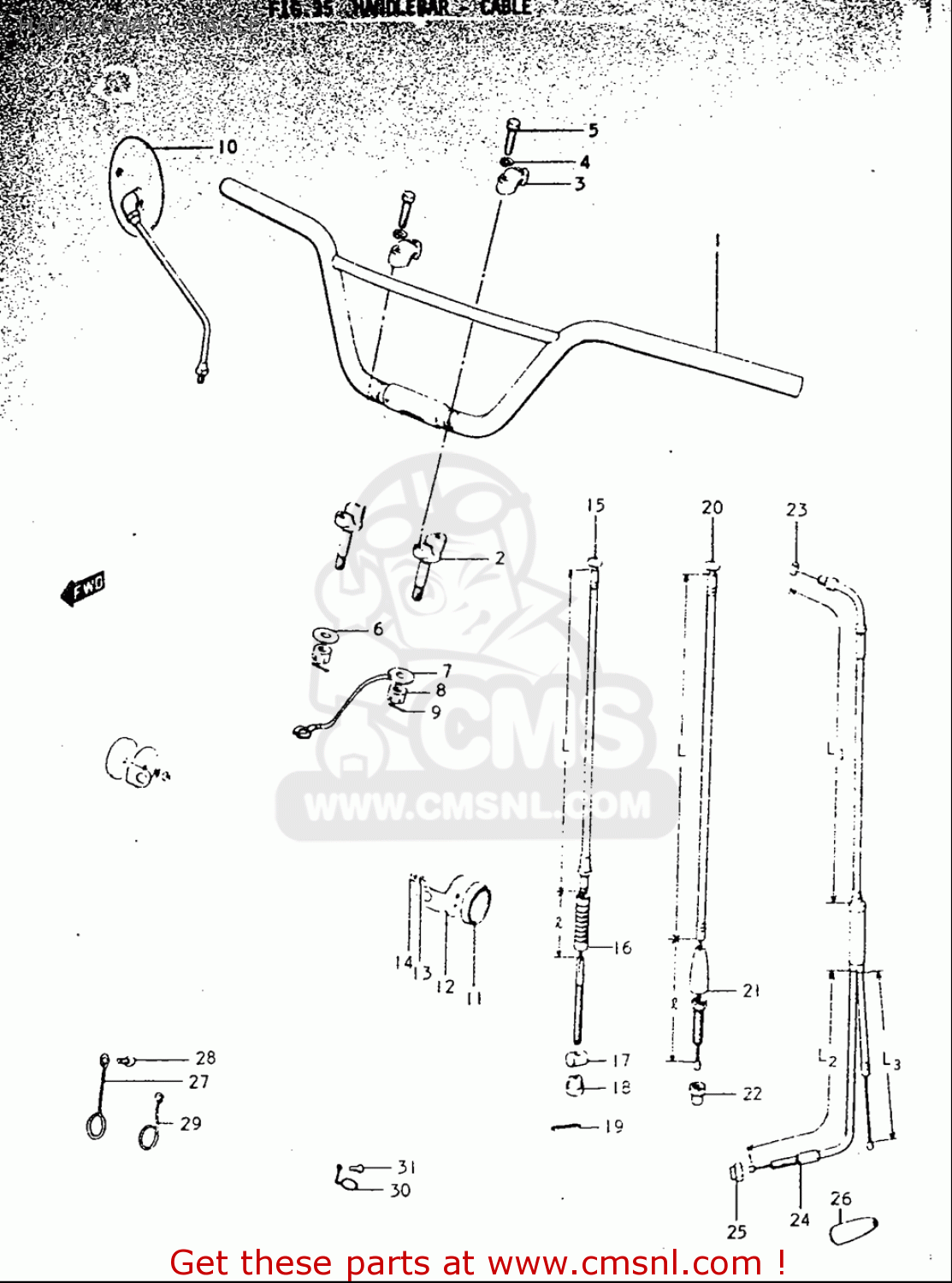

Handlebar - cable diagram TS250 19691970 USA (E03)

HANDLEBAR - CABLE TS250 19691970 USA (E03)

HANDLEBAR - CABLE TS250 19691970 USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5611115103
ref: 1-1

HANDLEBAR

€ 302.00

3

5621133000
ref: 3

HOLDER,HANDLEBAR

€ 7.00

4

0832101087
ref: 4

WASHER,LOCK

€ 2.00

5

0120408307
ref: 5

BOLT

€ 2.50

6

0916010035
ref: 6

WASHER(10.5X28X2.3)

€ 2.00

8

0831431108
ref: 8

NUT

€ 1.50

13

0832101057
ref: 13

WASHER,LOCK

€ 2.00

14

0831000057
ref: 14

NUT

€ 2.50

16

0928705001
ref: 16

SEAL,DUST

€ 11.00

17

0920913018
ref: 17

PIN(13X18)

€ 3.50

18

0915006014
ref: 18

NUT

€ 3.50

20

5820033601
ref: 20

CABLE,CLUTCH

€ 27.50

22

0831000087
ref: 22

NUT

€ 2.00

24

0911908014
ref: 24

BOLT

€ 3.50

25

0831000087
ref: 25

NUT

€ 2.00
