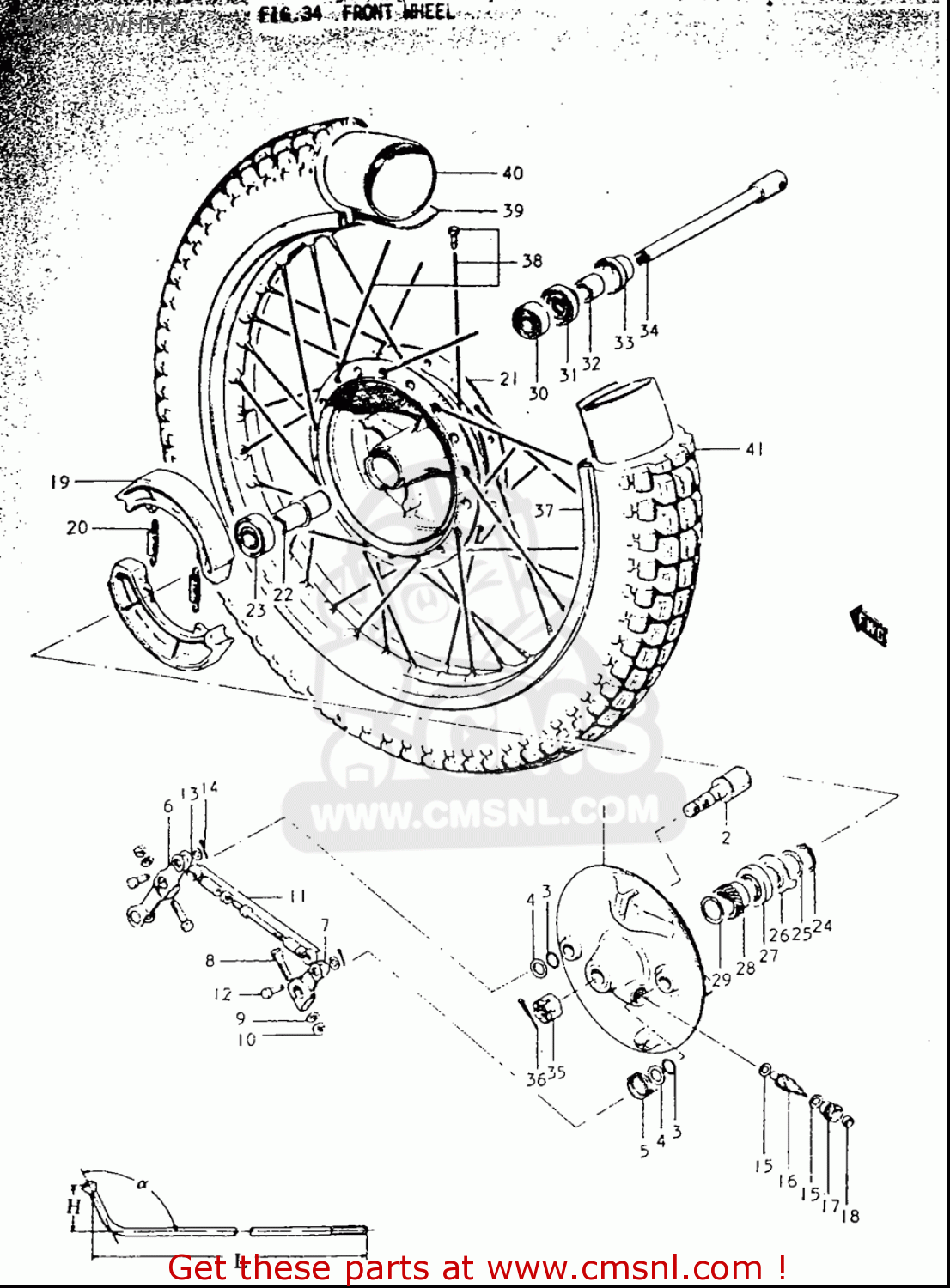

FRONT WHEEL

ref

part #

description

quantity

3

0928015003
ref: 3

O RING(D:2.4,ID:14.8)

€ 2.00

4

0916015048
ref: 4

WASHER(15.5X24X1.6)

€ 2.50

5

0944830001
ref: 5

SPRING

€ 16.00

8

0910006150
ref: 8

BOLT(6X31)

€ 1.50

9

0832201067
ref: 9

WASHER

€ 2.00

10

0831000067
ref: 10

NUT

€ 2.50

13

0832201067
ref: 13

WASHER

€ 2.00

14

0411112108
ref: 14

PIN 12X10

€ 2.00

15

0916005001A05
ref: 15

WASHER(5.1X9X0.4)

€ 2.00

16

5462111000
ref: 16

PINION,SPEEDOMETER

€ 11.50

17

5463249200
ref: 17

BUSHING,SPEEDOMETER PINION

€ 6.50

18

0928906001
ref: 18

SEAL,OIL(6X10X3)

€ 4.00

19

5441008100
ref: 19

SHOE,BRAKE

€ 17.50

23

0814362027
ref: 23

BEARING

€ 12.50

24

0833131226
ref: 24

CIRCLIP

€ 2.00

25

0916022001
ref: 25

WASHER(22.5X27X1)

€ 2.00

26

5466011031
ref: 26

DRIVER,SPEEDOMETER GEAR

€ 31.00

27

0928526003
ref: 27

SEAL,OIL(26X38X4)

€ 22.00

29

0916022001
ref: 29

WASHER(22.5X27X1)

€ 2.00

30

0811360020
ref: 30

BEARING

€ 14.00

32

0918015001
ref: 32

SPACER

€ 6.00

35

0914114001
ref: 35

NUT

€ 4.50

37

5531115020
ref: 37

RIM,WHEEL

€ 146.00

39

5526115010
ref: 39

PROTECTOR,WHL INR TUBE

€ 2.50

40

6520001B30
ref: 40

TUBE ASSEMBLY,WHEEL,INNER

€ 41.00
