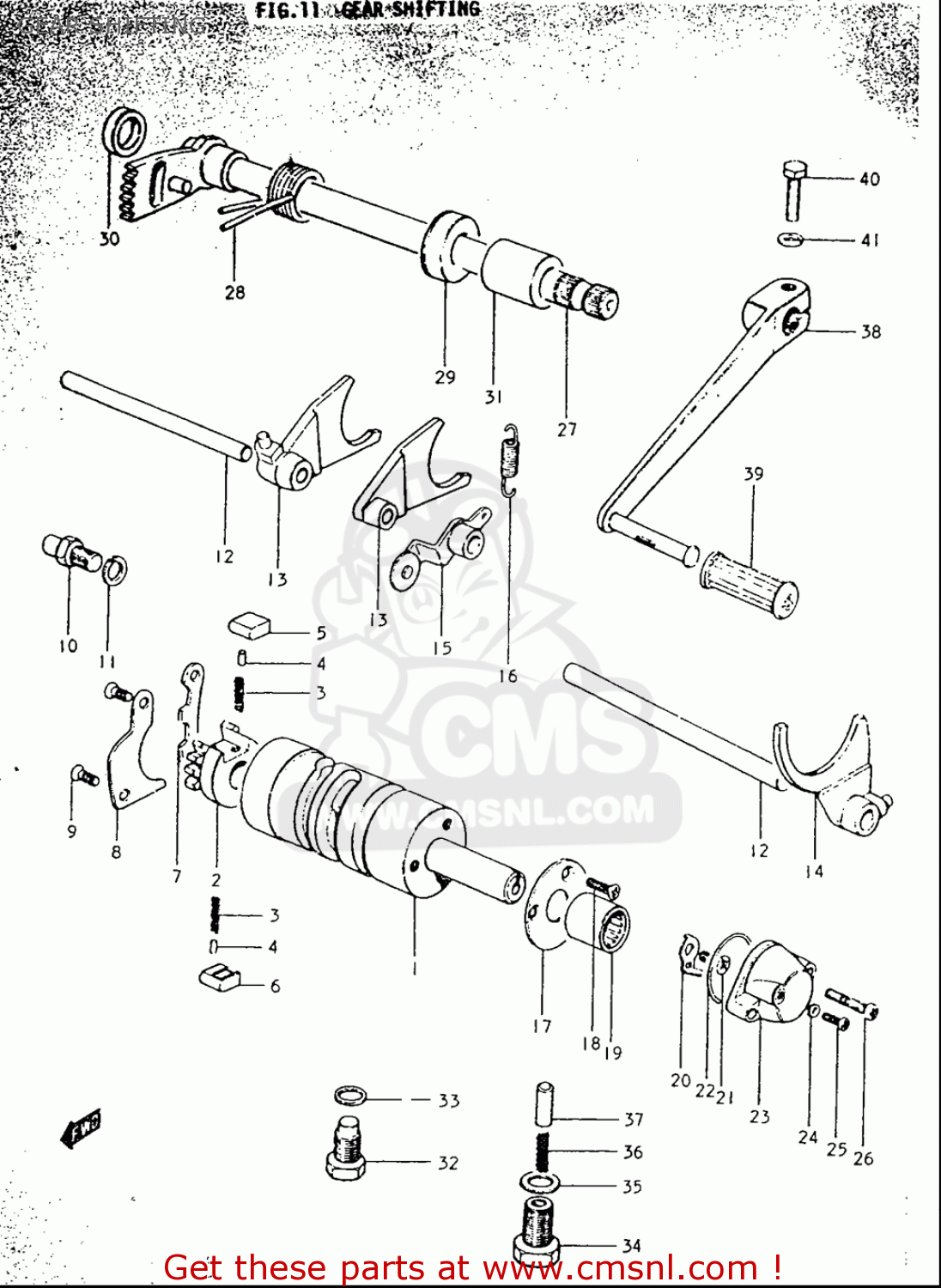

GEAR SHIFTING

ref

part #

description

quantity

2

2532231310
ref: 2

GEAR,GEAR SHIFT CAM DRIVEN

€ 14.50

3

0944004003
ref: 3

SPRING

€ 1.50

4

0926105003
ref: 4

PIN(5X8)

€ 1.50

5

2532434201
ref: 5

PAWL,GEAR SHIFT NO.2

€ 6.00

6

2532334201
ref: 6

PAWL,GEAR SHIFT NO.1

€ 6.00

8

2533111001
ref: 8

LIFTER,GEAR SHIFT PAWL

€ 2.50

10

2567101011
ref: 10

STOPPER,GEAR SHIFT ARM

€ 3.00

11

0832101087
ref: 11

WASHER,LOCK

€ 2.00

12

2541148001
ref: 12

SHAFT,GEAR SHIFT FORK

€ 15.00

15

2535016400
ref: 15

STOPPER,GEAR SHIFTING

€ 6.00

16

0944311002
ref: 16

SPRING

€ 4.50

19

0926316006
ref: 19

ROLLER BEARING (16X22X1

€ 10.00

20

3771105101
ref: 20

CONTACT,GEAR SHIFT SWITCH

€ 4.00

22

0928028002
ref: 22

O RING(D:1.9,ID:27.7)

€ 7.50

23

3772115002
ref: 23

BODY,GEAR SHIFT SWITCH

€ 13.00

24

0832201037
ref: 24

WASHER

€ 2.00

25

0211203047
ref: 25

SCREW

€ 2.00

28

0944426001
ref: 28

SPRING

€ 4.00

29

0928512006
ref: 29

SEAL,OIL (12X22X9)

€ 7.00

31

0932013001
ref: 31

CUSHION

€ 6.00

33

0916814004
ref: 33

GASKET(14X19.2X2) (NAS)

€ 2.50

34

2535211010
ref: 34

HOUSING,GEAR SHIFT CAM STOPPER

€ 4.50

35

0916814004
ref: 35

GASKET(14X19.2X2) (NAS)

€ 2.50

36

0944005018
ref: 36

SPRING

€ 14.00

37

2535139300
ref: 37

STOPPER,GEAR SHIFT CAM

€ 5.00

39

2565216500
ref: 39

RUBBER,GEAR SHIFT PEDAL

€ 4.00

40-1

0150008207
ref: 40-1

BOLT

€ 3.00

40-2

0150006207
ref: 40-2

BOLT

€ 2.00

41-1

0832101087
ref: 41-1

WASHER,LOCK

€ 2.00

41-2

0832101067
ref: 41-2

WASHER,LOCK

€ 2.50
