REAR COMBINATION LAMP (TS250)
TS250 19691970 USA (E03)

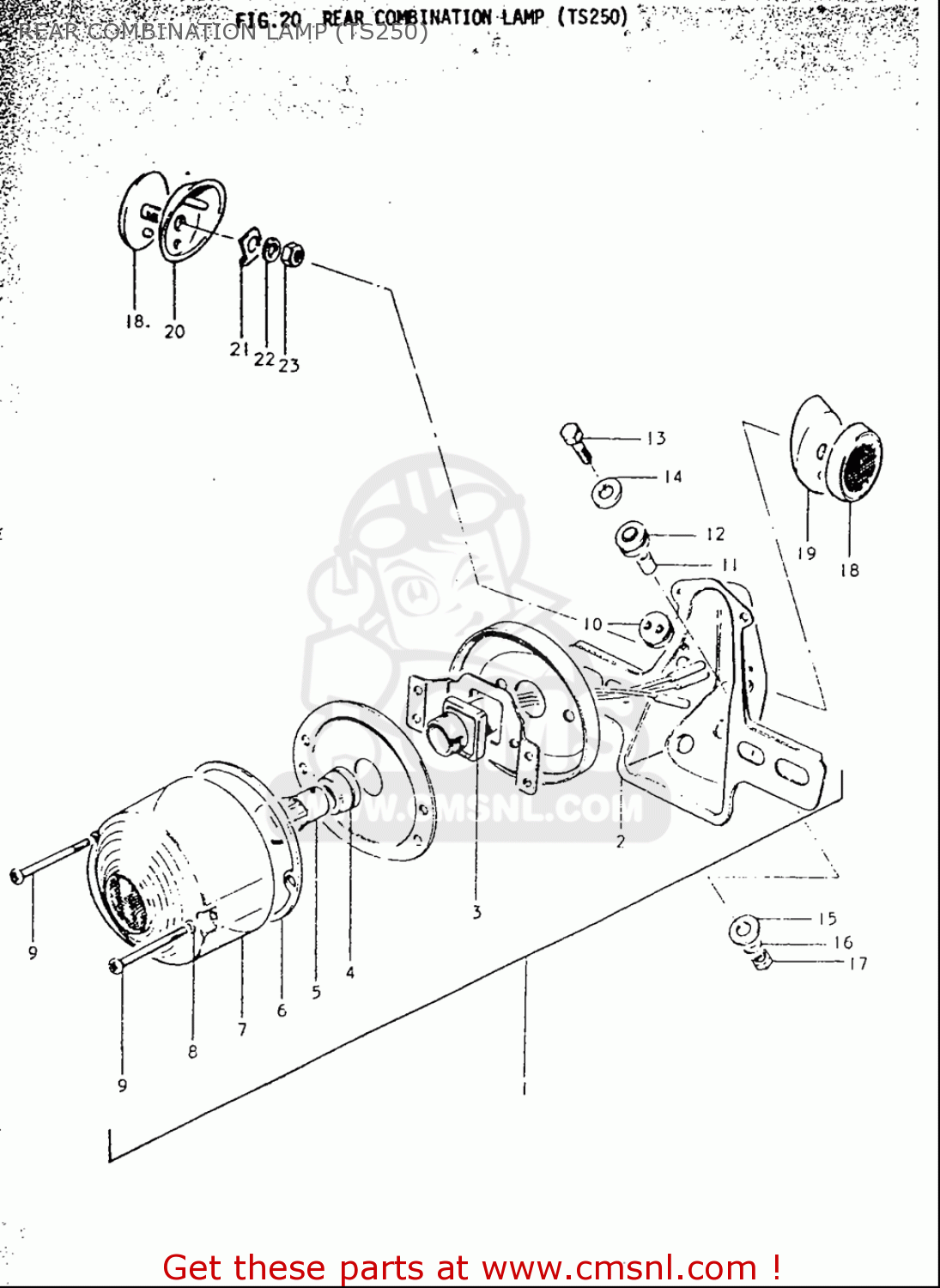

Rear combination lamp (ts250) diagram TS250 19691970 USA (E03)
REAR COMBINATION LAMP (TS250) TS250 19691970 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5
0947106009
ref: 5
BULB(6V17/5.3W,STANLEY,A4813)
€ 6.50
7
3571206112
ref: 7
LENS,RR COMBINATION LAMP
€ 37.50
10
3572818610
ref: 10
GROMMET,REAR COMBINATION LAMP
€ 0.00
11
3576637110
ref: 11
SPACER
€ 11.50
12
3576515010
ref: 12
CUSHION
€ 9.00
13
0150006207
ref: 13
BOLT
€ 2.00
14
0916006066
ref: 14
WASHER(6.5X20X1.6)
€ 2.00
15
0832201067
ref: 15
WASHER
€ 2.00
16
0832101067
ref: 16
WASHER,LOCK
€ 2.50
17
0831000067
ref: 17
NUT
€ 2.50
22
0832101057
ref: 22
WASHER,LOCK
€ 2.00
23
0831000057
ref: 23
NUT
€ 2.50
