FRAME

TS250 19691970 USA (E03)

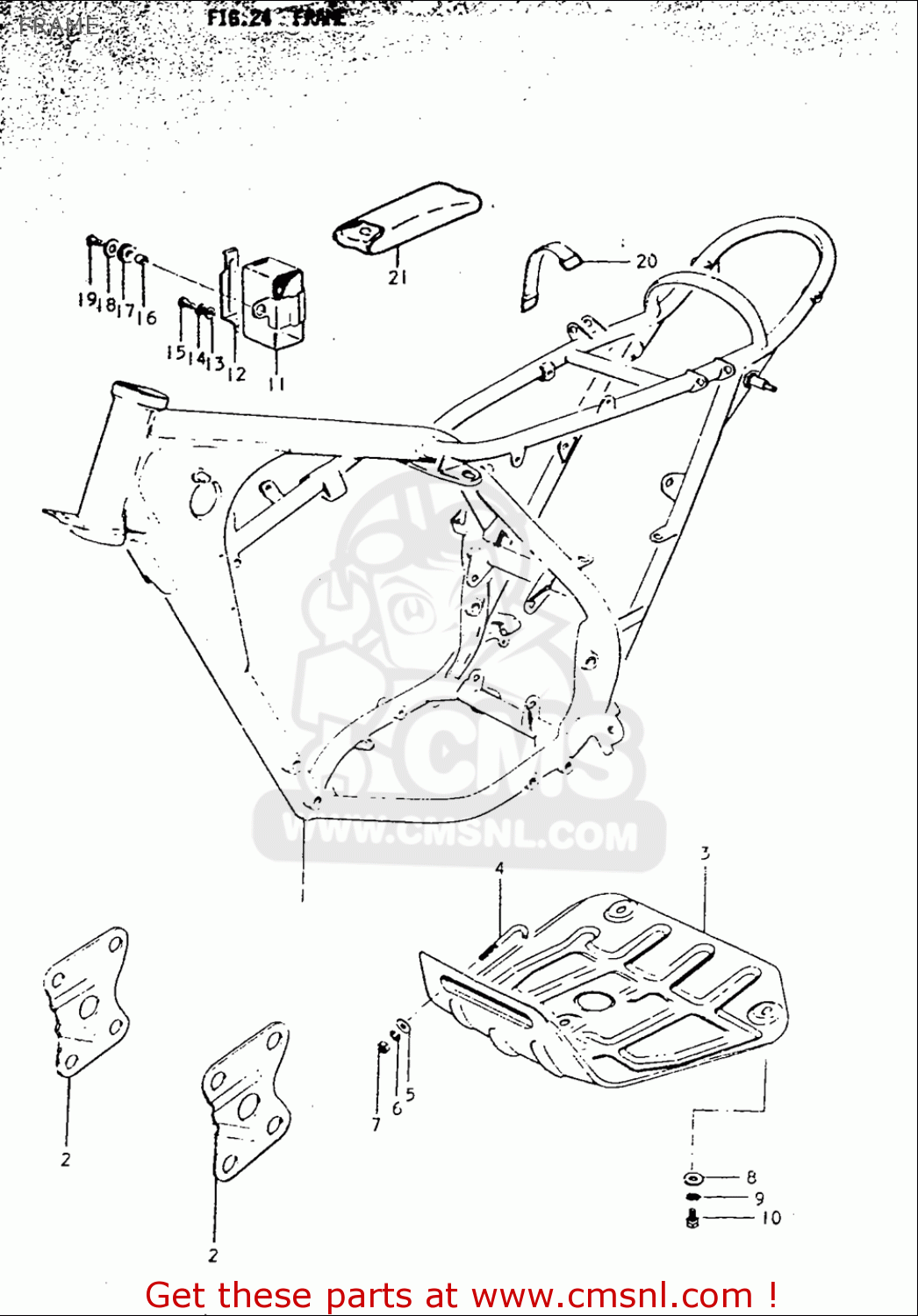

Frame diagram TS250 19691970 USA (E03)

FRAME TS250 19691970 USA (E03)

FRAME TS250 19691970 USA (E03)

prices are in EUR

ref

part #

description

quantity

5

0832201067
ref: 5

WASHER

€ 2.00

6

0832101067
ref: 6

WASHER,LOCK

€ 2.50

7

0831000067
ref: 7

NUT

€ 2.50

8

0832201067
ref: 8

WASHER

€ 2.00

9

0832101067
ref: 9

WASHER,LOCK

€ 2.50

10

0150006127
ref: 10

BOLT

€ 2.00

13

0832201067
ref: 13

WASHER

€ 2.00

14

0832101067
ref: 14

WASHER,LOCK

€ 2.50

15

0912806044
ref: 15

SCREW(6X10)

€ 1.50

16

09180C06259J000
ref: 16

SPACER,6.5X9X7

€ 0.00

17

0932008021
ref: 17

CUSHION

€ 4.00

18

0916006077
ref: 18

WASHER(6.5X20X1.2)

€ 2.00

19

021620616C
ref: 19

SCREW

€ 2.50

20

0946200033
ref: 20

BAND

€ 6.50
