MAGNETO (FROM F.NO. TS250-23216)
TS250 19691970 USA (E03)

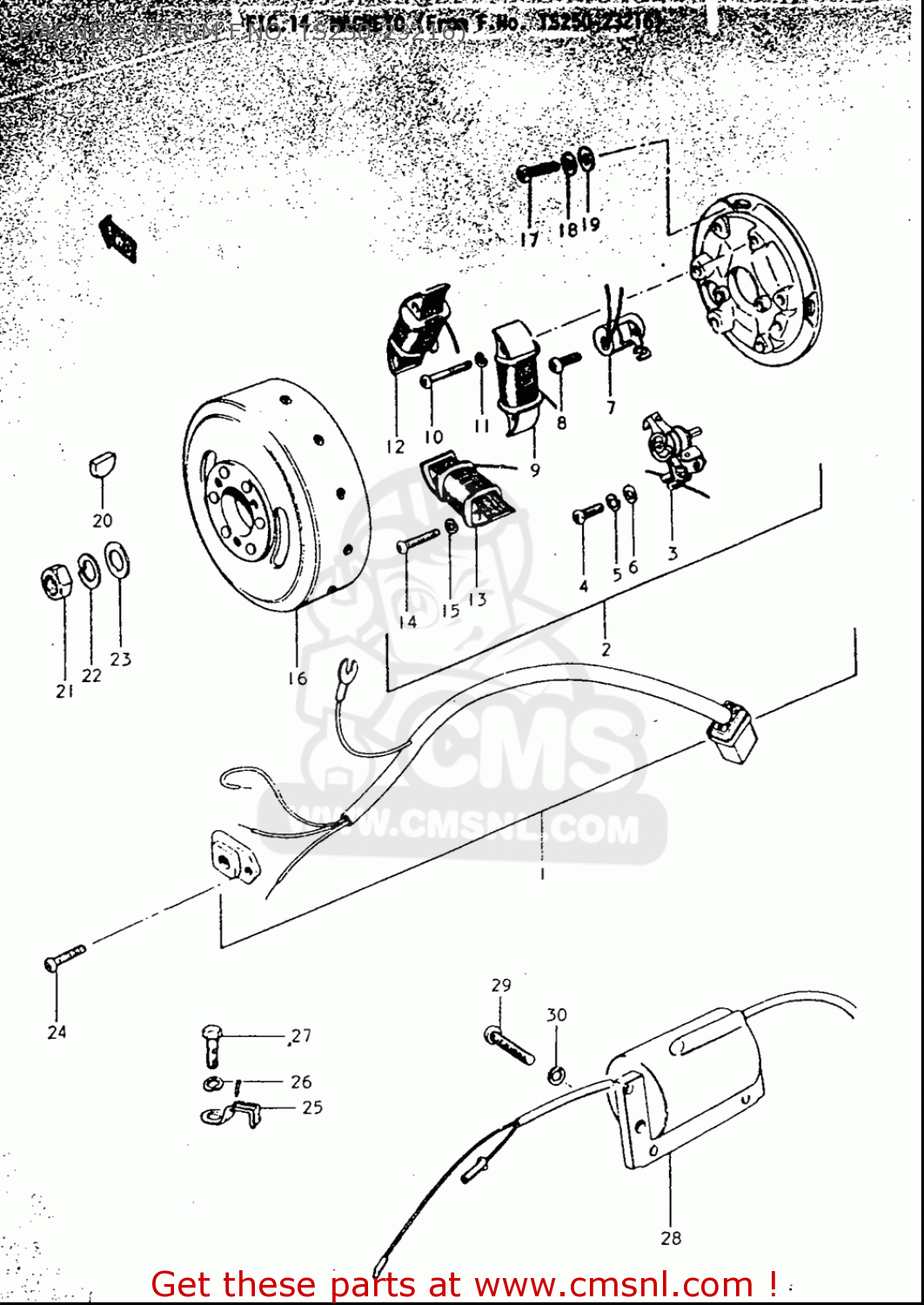

Magneto (from f.no. ts250-23216) diagram TS250 19691970 USA (E03)
MAGNETO (FROM F.NO. TS250-23216) TS250 19691970 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
3
3224007610
ref: 3
POINT ASSY,CONTACT
€ 42.00
4
0231104108
ref: 4
.SCREW
€ 1.00
5
0832101043
ref: 5
WASHER,LOCK
€ 2.00
6
0832201047
ref: 6
WASHER
€ 2.00
7
3234125690
ref: 7
CONDENSER
€ 27.00
11
0832101057
ref: 11
WASHER,LOCK
€ 2.00
15
0832101057
ref: 15
WASHER,LOCK
€ 2.00
17
0211205167
ref: 17
SCREW
€ 2.50
18
0832101067
ref: 18
WASHER,LOCK
€ 2.50
19
0832201057
ref: 19
WASHER
€ 2.50
20
0942004008
ref: 20
KEY
€ 3.50
21
0914014011
ref: 21
NUT
€ 3.50
22
083210114A
ref: 22
WASHER,LOCK
€ 2.00
23
0916014015
ref: 23
WASHER(14X27X3)
€ 4.00
26
0832101067
ref: 26
WASHER,LOCK
€ 2.50
30
0832101067
ref: 30
WASHER,LOCK
€ 2.50
