AIR CLEANER

TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

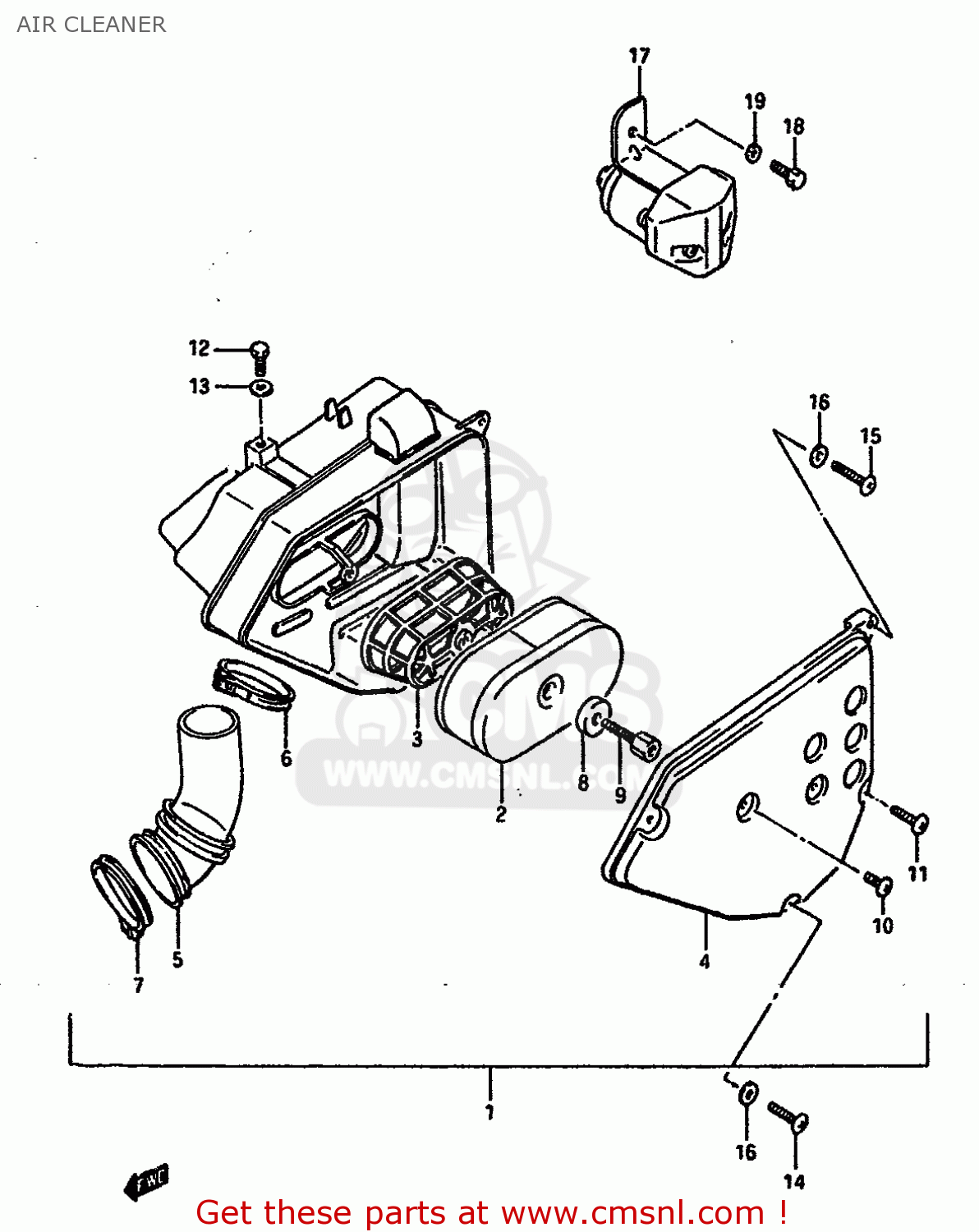

Air cleaner diagram TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

AIR CLEANER TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

AIR CLEANER TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

1-1

1370013A02
ref: 1-1
MODEL E

CLEANER ASSY,AIR

€ 0.00

1-2

1370013A20
ref: 1-2
MODEL G/H/J/K

CLEANER ASSY,AIR

€ 158.50

2

1378113A00
ref: 2

FILTER

€ 36.00

3

1379113A01
ref: 3

HOLDER

€ 12.50

4

1374013A02
ref: 4

CAP

€ 39.50

5-1

1388113A01
ref: 5-1
MODEL E

TUBE,OUTLET

€ 24.00

5-2

1388113A20
ref: 5-2
MODEL G/H/J/K

TUBE,OUTLET

€ 20.50

6

0940274207
ref: 6

CLAMP

€ 3.50

7

0940264208
ref: 7
FROM 09402-64207

CLAMP

€ 6.00

8

1379213A01
ref: 8

WASHER,AIR CLEANER

€ 3.00

9

1383113A01
ref: 9

BOLT

€ 6.50

10

0214206085
ref: 10

SCREW

€ 1.50

11

0912506055
ref: 11

SCREW(6X25)

€ 3.00

12

0110706126
ref: 12

BOLT

€ 2.00

13

0916006019
ref: 13

WASHER(6.5X16X1.2)

€ 1.50

14

0912506055
ref: 14

SCREW(6X25)

€ 3.00

15

0214206305
ref: 15

SCREW

€ 2.00

16

0916006069
ref: 16

WASHER

€ 2.00

17

1577013A00
ref: 17
MODEL E

COMPENSATOR ASSY,ALTITUDE

€ 254.00

18

0110706127
ref: 18
MODEL E

BOLT

€ 2.00

19

0832121067
ref: 19
MODEL E

WASHER,LOCK

€ 2.50
