FUEL COCK

TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

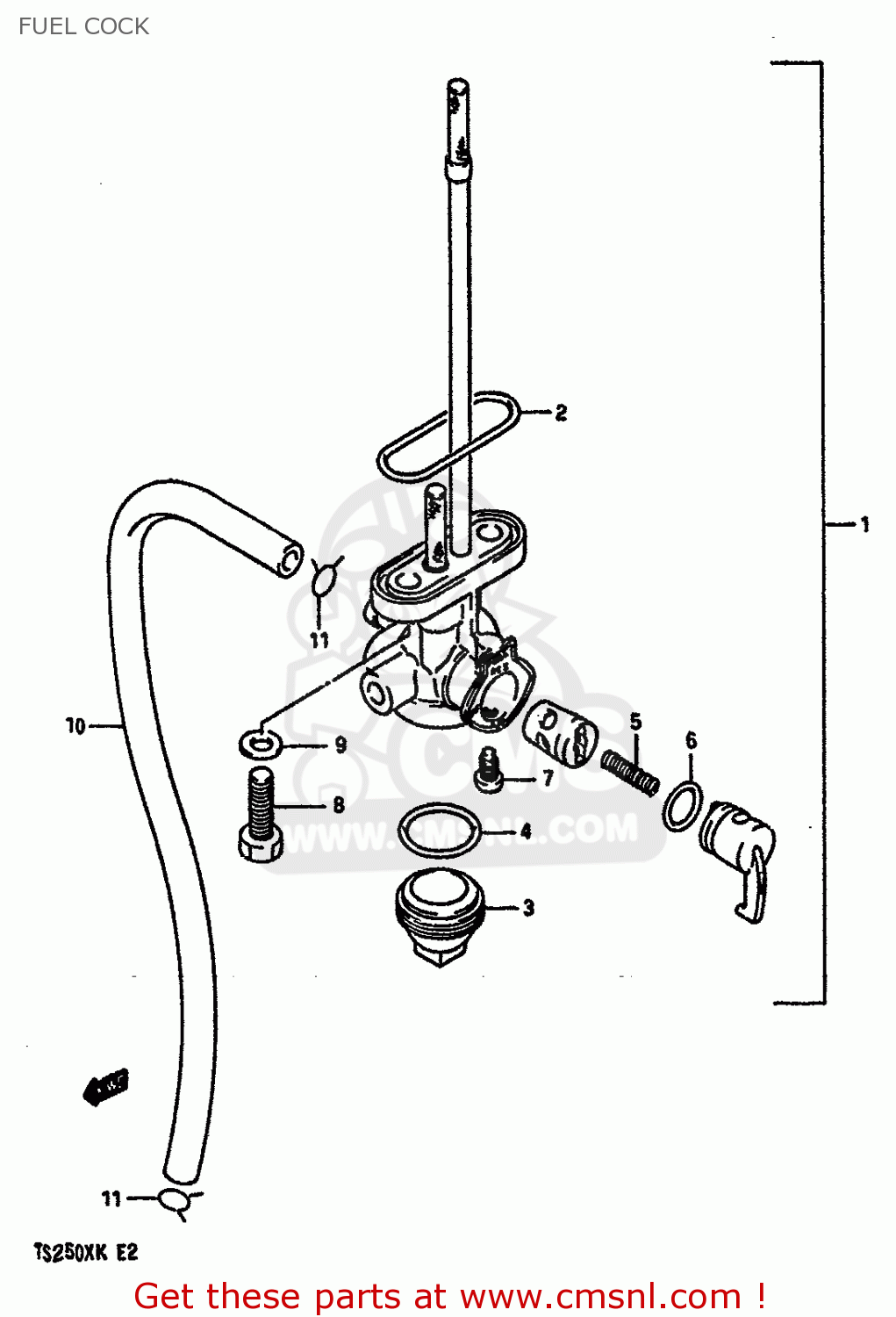

Fuel cock diagram TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

4430013A00
ref: 1

COCK ASSY,FUEL

€ 49.00

4434828070
ref: 2

O RING,FUEL COCK

€ 4.50

4434728071
ref: 3

CUP,STRAINER

€ 7.50

4434628070
ref: 4

GASKET,FILTER (NAS)

€ 2.50

4435732470
ref: 5

SPRING

€ 2.00

4435332470
ref: 6

O-RING

€ 7.50

4434341370
ref: 7

SCREW

€ 2.00

0912806006
ref: 8

BOLT(6X20)

€ 2.00

0916806010
ref: 9

GASKET

€ 2.00

10-1

0934305129
ref: 10-1
L:240-210,MODEL E/G/

HOSE

€ 13.00

10-2

0935250823240
ref: 10-2
MODEL J/K

HOSE

€ 13.00

0940108402
ref: 11

CLIP

€ 1.50
