STEERING STEM (MODEL G/H/J/K)

TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

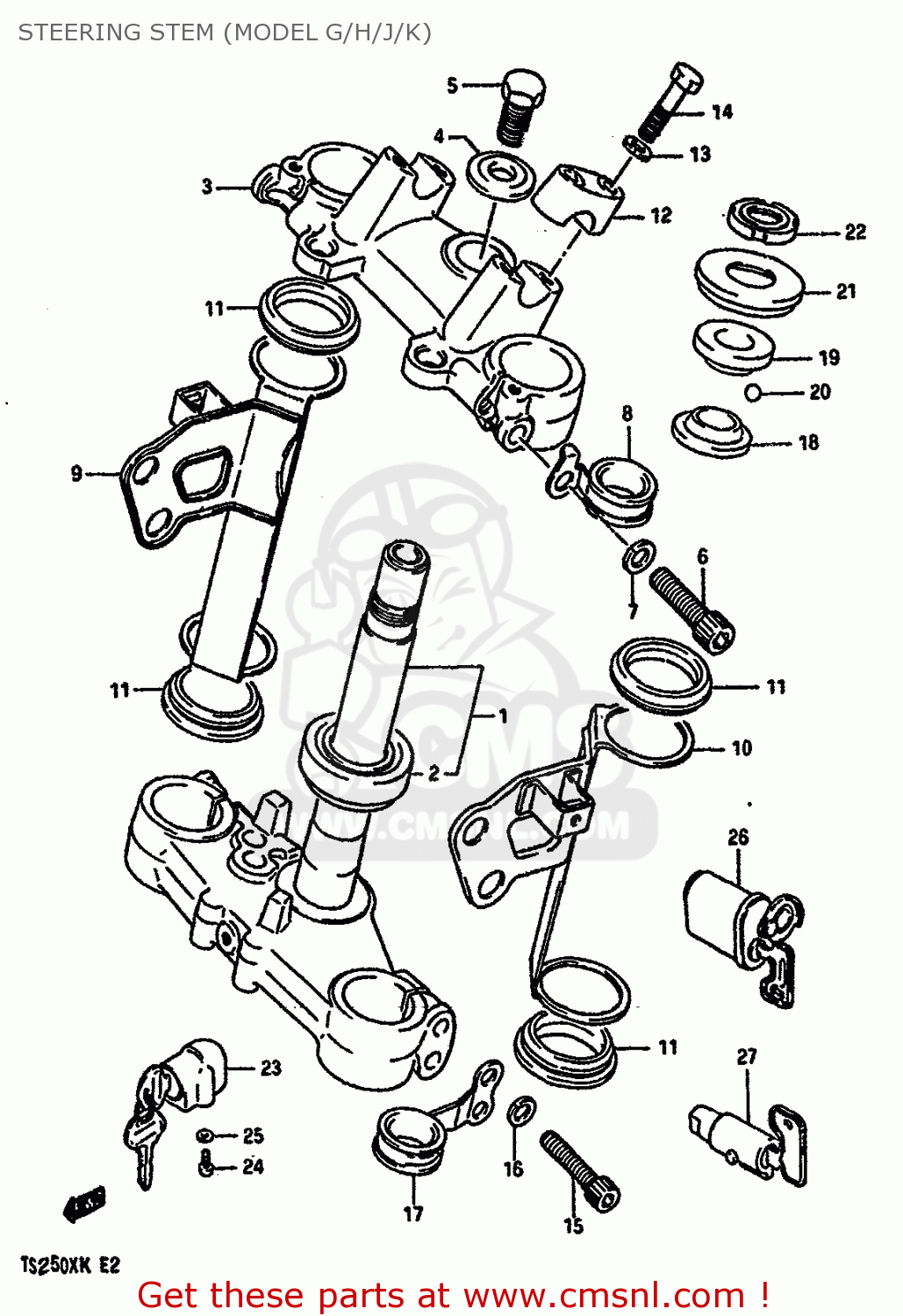

Steering stem (model g/h/j/k) diagram TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

STEERING STEM (MODEL G/H/J/K) TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)
STEERING STEM (MODEL G/H/J/K) TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)
STEERING STEM (MODEL G/H/J/K) TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
5141013A21
ref: 1
STEM,STEERING
€ 374.50
2
0926530005
ref: 2
BEARING
0926530005
€ 49.50
3
5131113A01
ref: 3
HEAD,STEERING STEM
€ 123.00
4-1
5135413A00
ref: 4-1
MODEL G/H/J
WASHER
€ 0.00
4-2
5135641310
ref: 4-2
MODEL K
WASHER
5135641310
€ 6.00
5-1
5135141320
ref: 5-1
MODEL G/H/J
BOLT
5135141320
€ 8.50
5-2
5135130540
ref: 5-2
MODEL K
BOLT,STEERING STEM HEAD
5135130540
€ 5.00
6
0711010458
ref: 6
BOLT,REAR LH
€ 3.50
7-1
0832121107
ref: 7-1
MODEL G/H/J
WASHER,LOCK,10
0832121107
€ 2.00
7-2
0832131108
ref: 7-2
MODEL K
LOCK WASHER
€ 2.00
8
5862113A40
ref: 8
CLIP
€ 0.00
9
5153013A10
ref: 9
BRACKET,HEADLAMP RH
5153013A10
€ 30.50
10
5154013A00
ref: 10
BRACKET,HEADLAMP LH
5154013A00
€ 30.50
11
5155314420
ref: 11
GASKET
€ 0.00
12
5621127100
ref: 12
HOLDER,HANDLEBAR
5621127100
€ 12.50
13
0832121088
ref: 13
LOCK WASHER
0832121088
€ 2.00
14
0110708358
ref: 14
BOLT
0110708358
€ 3.50
15
0711008458
ref: 15
BOLT, RH
€ 3.00
16
0832131087
ref: 16
WASHER,LOCK
€ 2.00
17
5862113A30
ref: 17
CLIP
€ 9.00
18
5161140201
ref: 18
RACE,STEERING INNER (SUJ)
5161140201
€ 8.50
19
5162140200
ref: 19
RACE,STEERING,OUTER,UPPER
5162140200
€ 17.00
20
0611108003
ref: 20
BALL
0611108003
€ 1.50
21
5164340200
ref: 21
SEAL,STEERING UPR DUST
5164340200
€ 7.50
22
5163140200
ref: 22
NUT,STEERING STEM
5163140200
€ 12.00
23
5190030831
ref: 23
LOCK ASSY,STEERING
5190030831
€ 30.00
24
0211205128
ref: 24
SCREW
€ 2.50
25
0832121057
ref: 25
LOCK WASHER
0832121057
€ 2.00
26
5190045400
ref: 26
MODEL G E17 E22~F.NO
LOCK ASSY, STEERING (NEIMAN TYPE EXECUTE
€ 0.00
27
5190030901
ref: 27
E15,E16,MODEL H E17
LOCK ASSY,STEERING(NEIMAN)
5190030901
€ 168.50
