HEADLAMP (E2,E4,E15,E16,E17,E18,E21,E22,E25)

TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

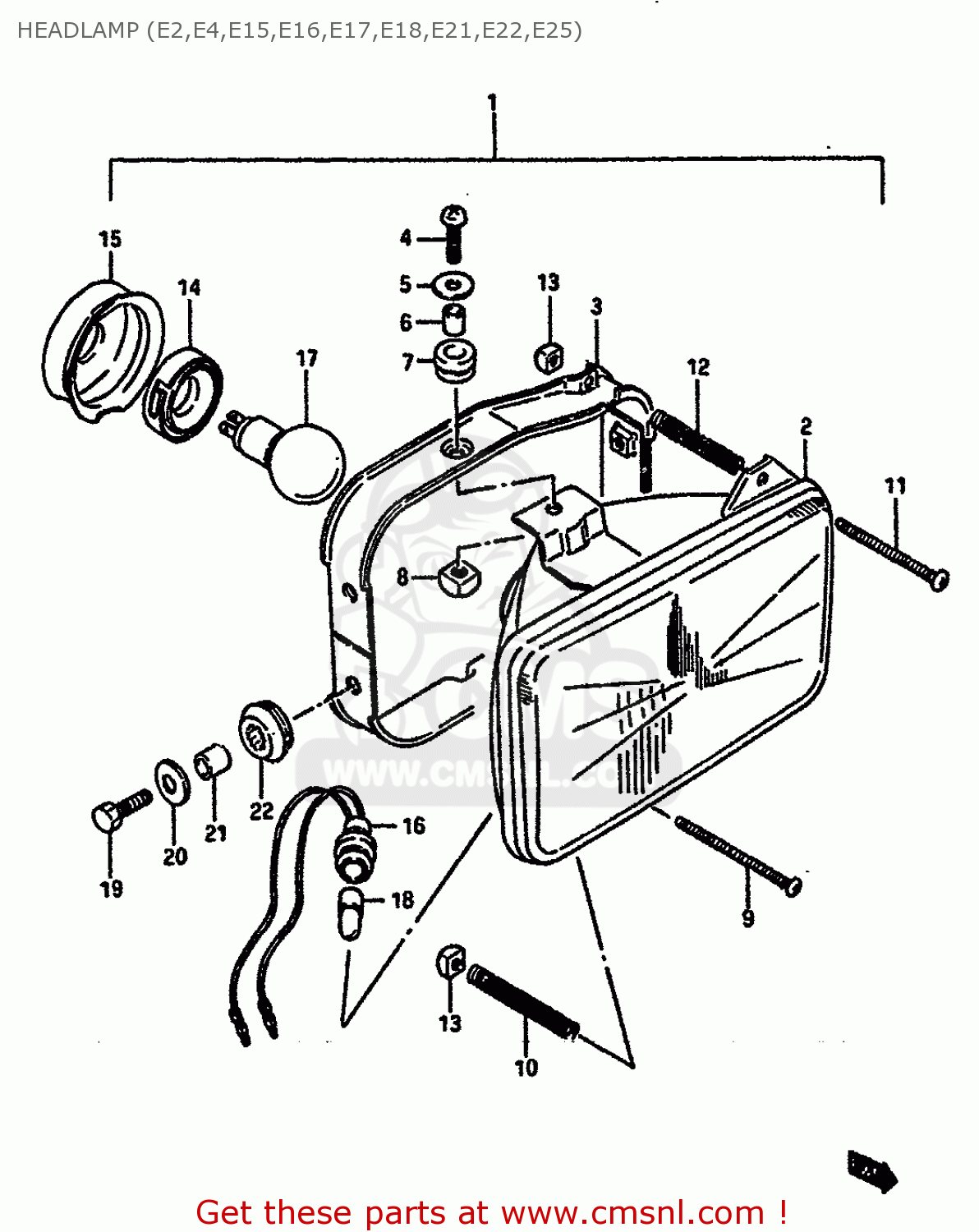

Headlamp (e2,e4,e15,e16,e17,e18,e21,e22,e25) diagram TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

HEADLAMP (E2,E4,E15,E16,E17,E18,E21,E22,E25) TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

HEADLAMP (E2,E4,E15,E16,E17,E18,E21,E22,E25) TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

1-1

3510013A22999
ref: 1-1
E2

HEADLAMP ASSY

€ 159.50

1-2

3510013A52999
ref: 1-2
E4,E15,E16,E17,E18,E

HEADLAMP ASSY

€ 141.00

2-1

3512113A21
ref: 2-1
E2

LAMP UNIT

€ 94.50

2-2

3512113A51
ref: 2-2
E4,E15,E16,E17,E18,E

LAMP UNIT

€ 81.50

3

3514114A00
ref: 3

HOUSING

€ 31.00

4

0912505102
ref: 4

SCREW(5X14)

€ 2.50

5

3513845230
ref: 5

WASHER

€ 2.00

6

3513314A00
ref: 6

SPACER

€ 3.50

7

3513945230
ref: 7

CUSHION

€ 1.50

8

3513545900
ref: 8

NUT

€ 2.50

9

3515149200
ref: 9

SCREW,HEADLAMP ADJUST

€ 4.00

10

3515449200
ref: 10

SPRING

€ 3.50

11

3515131300
ref: 11

SCREW,HEADLAMP ADJUST

€ 3.00

12

3515431300
ref: 12

SPRING

€ 2.00

13

3513545600
ref: 13

NUT

€ 3.00

14

3513605300
ref: 14

HOLDER,BULB

€ 9.50

15

3517305300
ref: 15

COVER,SOCKET

€ 9.00

16

3611845900
ref: 16

SOCKET,PARKING

€ 13.00

17-1

0947112048
ref: 17-1
EXECUTED LOCALLY

BULB(12V45/40W)

€ 7.50

17-2

0947112049
ref: 17-2
E4,EXECUTED LOCALLY

BULB (12V, 45/40W)

€ 0.00

18

0947112063
ref: 18
EXECUTED LOCALLY

BULB(12V4W)

€ 6.00

19

0110706207
ref: 19

BOLT

€ 2.00

20

0916006027
ref: 20

WASHER (6.5X20X1.2)

€ 2.00

21

0918006011
ref: 21

SPACER (6.1X9X9)

€ 2.00

22

0932009018
ref: 22

CUSHION

€ 2.00
