FRONT MASTER CYLINDER (MODEL E)

TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

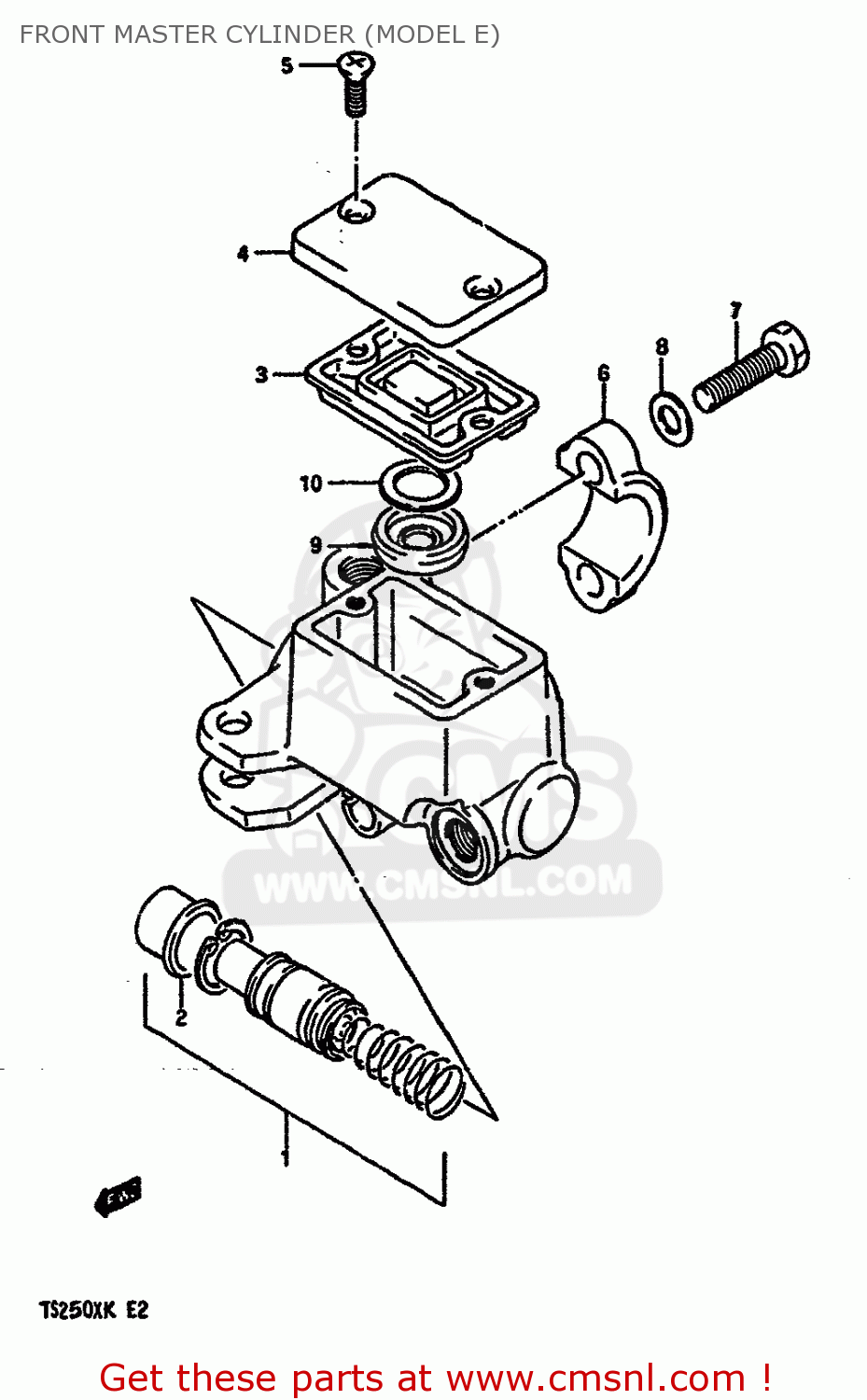

Front master cylinder (model e) diagram TS250X 1986 (G) (E01 E02 E04 E17 E18 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

5960013A10
ref: 0

CYLINDER ASSY,FR MASTER

€ 144.00

5960013A20
ref: 0
E4

CYLINDER ASSEMBLY,FRONT MASTER

€ 191.50

5960013820
ref: 1

PISTON/CUP SET

€ 40.50

5966644300
ref: 2

BOOT

€ 6.00

5966704700
ref: 3

DIAPHRAGM

€ 8.00

4-1

5966904700
ref: 4-1

CAP

€ 9.50

4-2

5966904710
ref: 4-2
E4

CAP

€ 12.00

6968949300
ref: 5

SCREW

€ 1.50

5967136500
ref: 6

HOLDER

€ 10.00

0110706255
ref: 7

BOLT

€ 2.50

0832221064
ref: 8

WASHER

€ 2.00

5974815400
ref: 9

SEPERATOR

€ 7.50

5974915400
ref: 10

PLATE

€ 2.00
